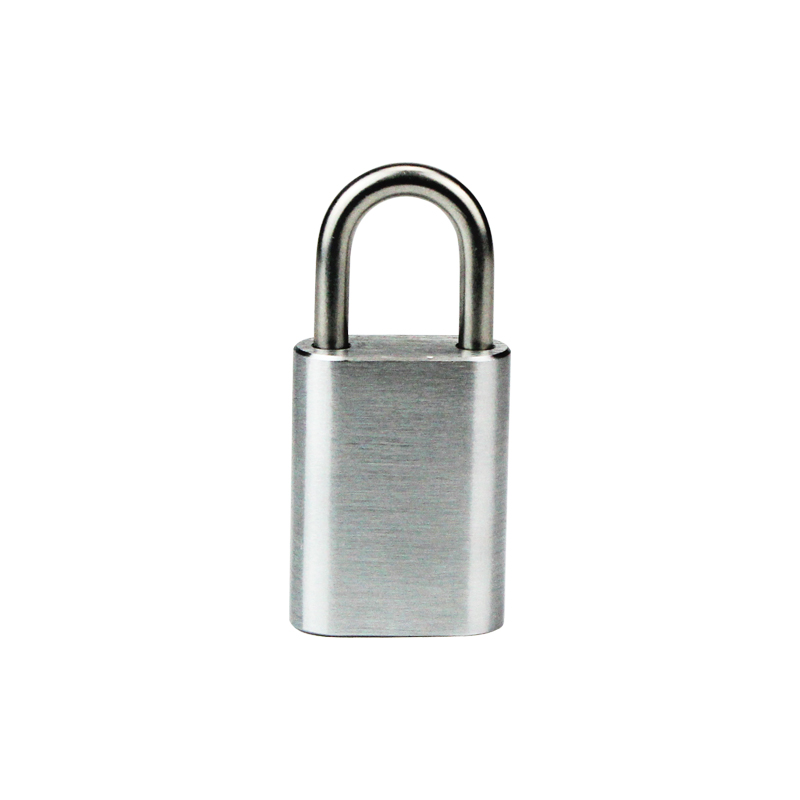

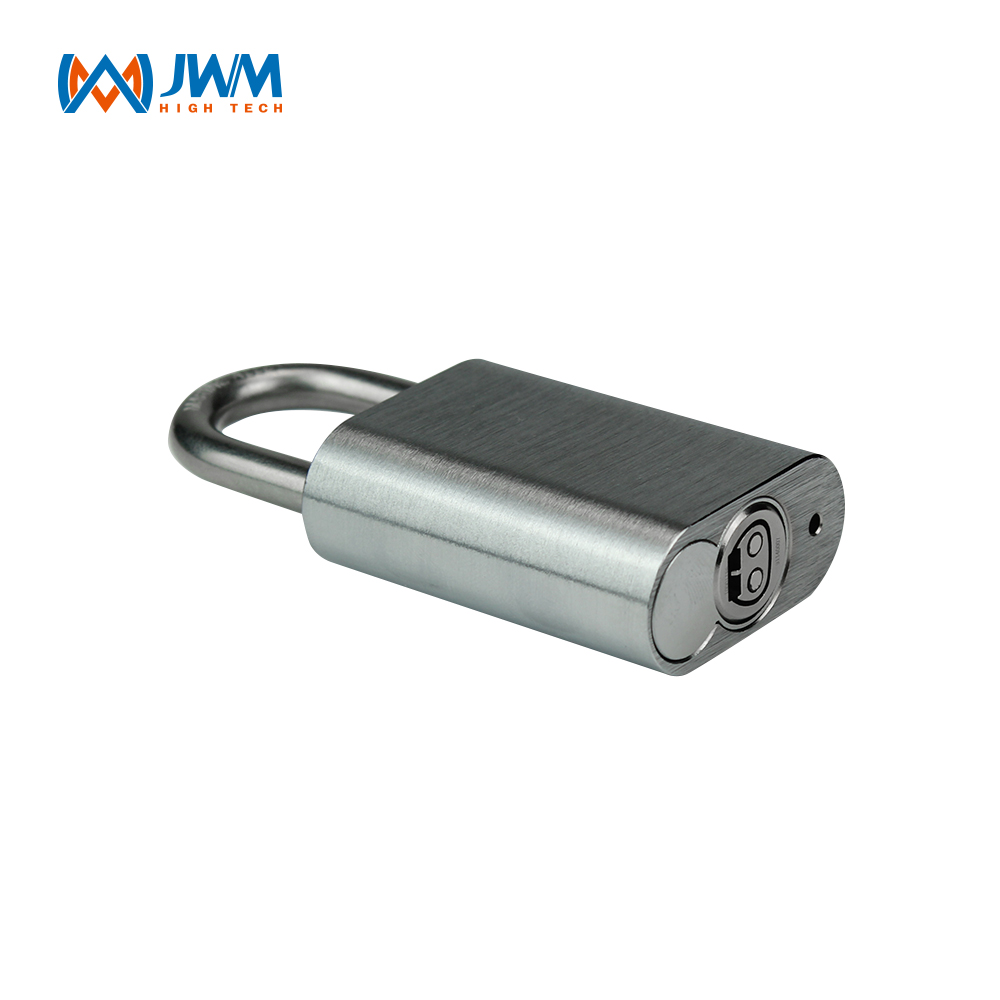

Electronic Key Access Padlock
This key-centric access control system features smart keys, electronic lock cylinders, and management software. The smart key can be reprogrammed to unlock specific locks and quickly disabled if lost or stolen.
Technical Specifications
Overview
Intelligent Passive Access Control
This advanced electronic padlock system utilizes a key-centric access control design, eliminating the need for complex wiring or external power sources. The system features intelligent, re-programmable keys that are impossible to duplicate, allowing security managers to grant or revoke access instantly. Built with high-grade stainless steel components, this solution offers a sophisticated alternative to traditional mechanical locks, perfect for critical infrastructure and remote asset management.
Key Features
- System Advantages
- No Power RequiredNo Wiring NeededMaintenance-FreeAnti-Duplication KeysAudit Trail LoggingTwo-Way Authentication
Technical Specifications
Environmental Durability
-40 °C
Min Operating Temp
70 °C
Max Operating Temp
97 %
Max Humidity
10 years
Service Life
Ingress Protection
IP68
Model Variants
Available Configurations
| Model | Material | Surface Treatment | Beam Diameter |
|---|---|---|---|

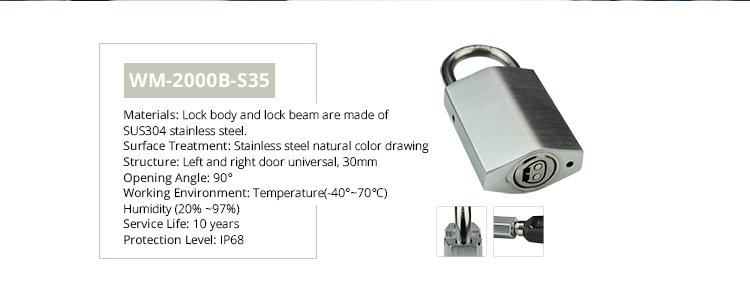

| WM-2000B-S35 | SUS304 Stainless Steel | Natural Drawing | 6.5 |
| WM-2000B-S40 | SUS304 Stainless Steel | Copper Drawing Passivation | 6.5 |
| WM-2000B-S45 | SUS304 Stainless Steel | Copper Drawing Passivation | 8 |
| WM-2000B-S55 | SUS304 Stainless Steel | Sand Chrome | 10 |
