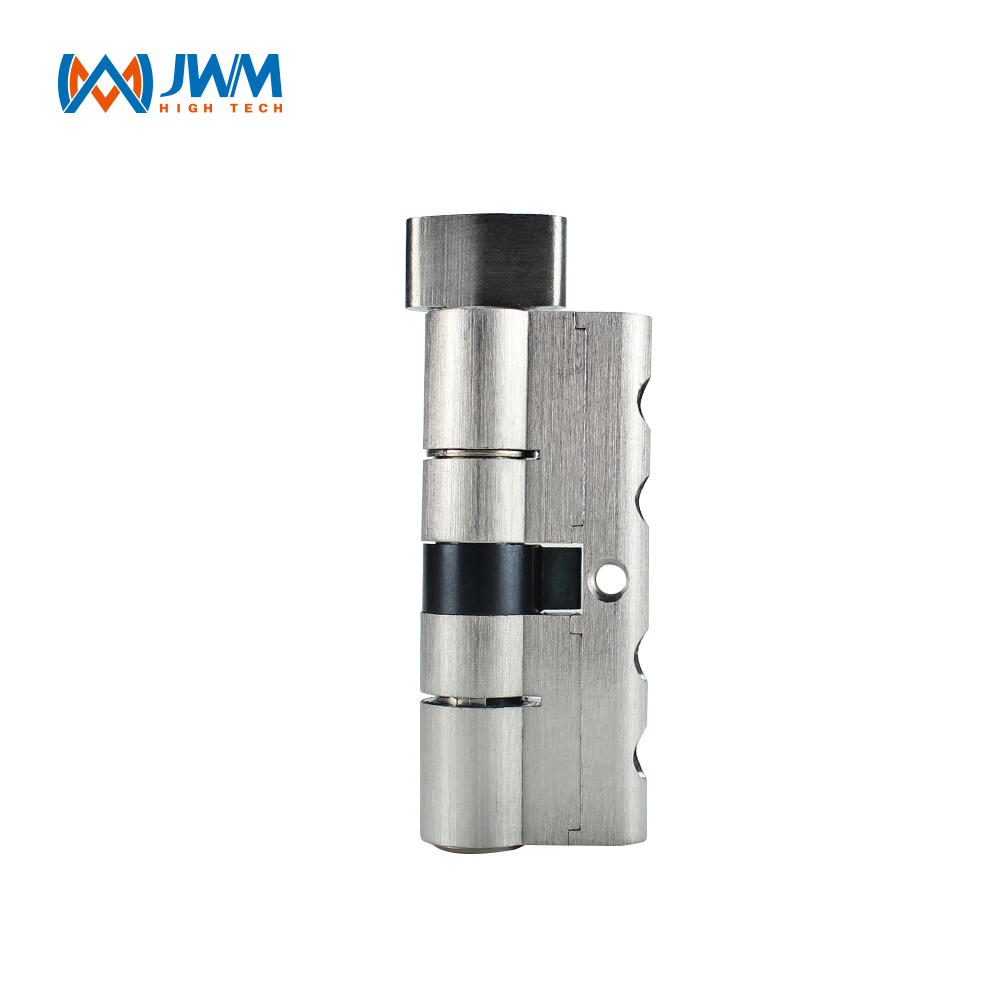

Electronic Door Lock Cylinder with Smart Key Access
Electronic lock cylinder uses smart keys for access control. The system allows for quick disabling of keys in the event of loss or theft.
Technical Specifications
Product Overview
Intelligent Electronic Access Control

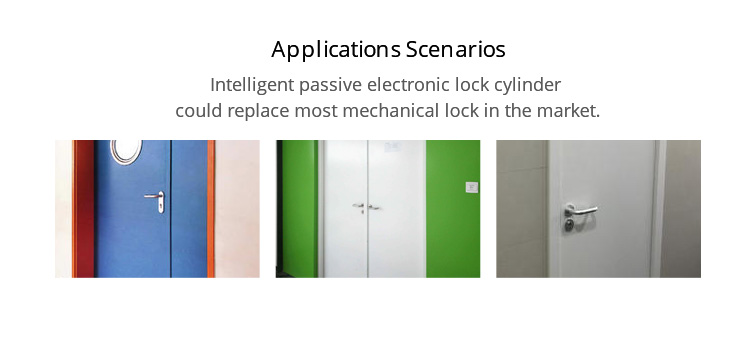

This electronic door lock cylinder system utilizes smart key technology to provide a secure, re-programmable access control solution. Designed to replace standard mechanical locks, the system requires no external power or wiring, making it suitable for diverse industrial environments. It features a two-way identity authentication scheme that prevents unauthorized access and ensures high-security management of all locking points.
Technical Specifications
Environmental Resilience
-40 °C
Min Operating Temp
70 °C
Max Operating Temp
68 IP
IP Rating
Available Models & Materials
| Model Series | Lock Case Material | Lamella Material |
|---|---|---|
| SXDK75 / SXSK80 | Hb59-1 Copper | Iron |

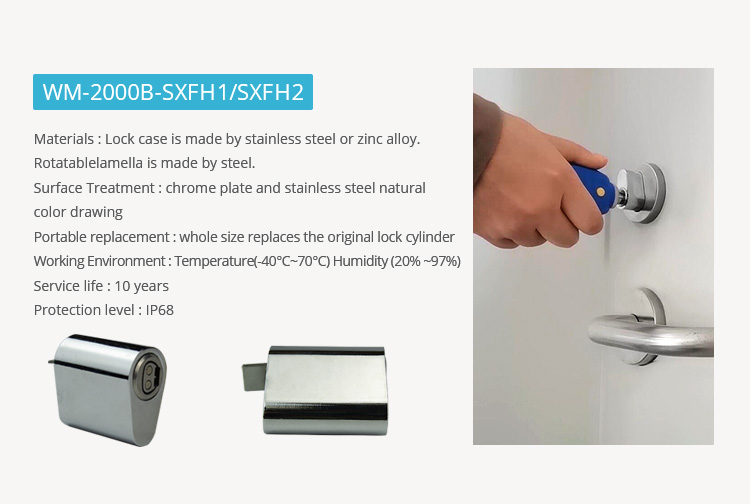

| SXFH1 / SXFH2 | Stainless Steel / Zinc Alloy | Steel |
| SXBK46 / SXBK66 | Hb59-1 Copper | Steel |
- Service Life
- 10 Years
Features & Compliance
Core Functionality
- No external power or wiring required
- Two-way identity authentication
- Re-programmable smart keys
- Tamper-resistant design
- Compatible with padlock, cabinet, and cable locks
- Certifications
- CEROHS
