Electronic Door Lock Cylinder with Key Reprogramming
Electronic lock cylinder uses smart keys for access control. The keys are reprogrammable, allowing for flexible access management and quick disabling in case of loss or theft.
Technical Specifications
Product Overview

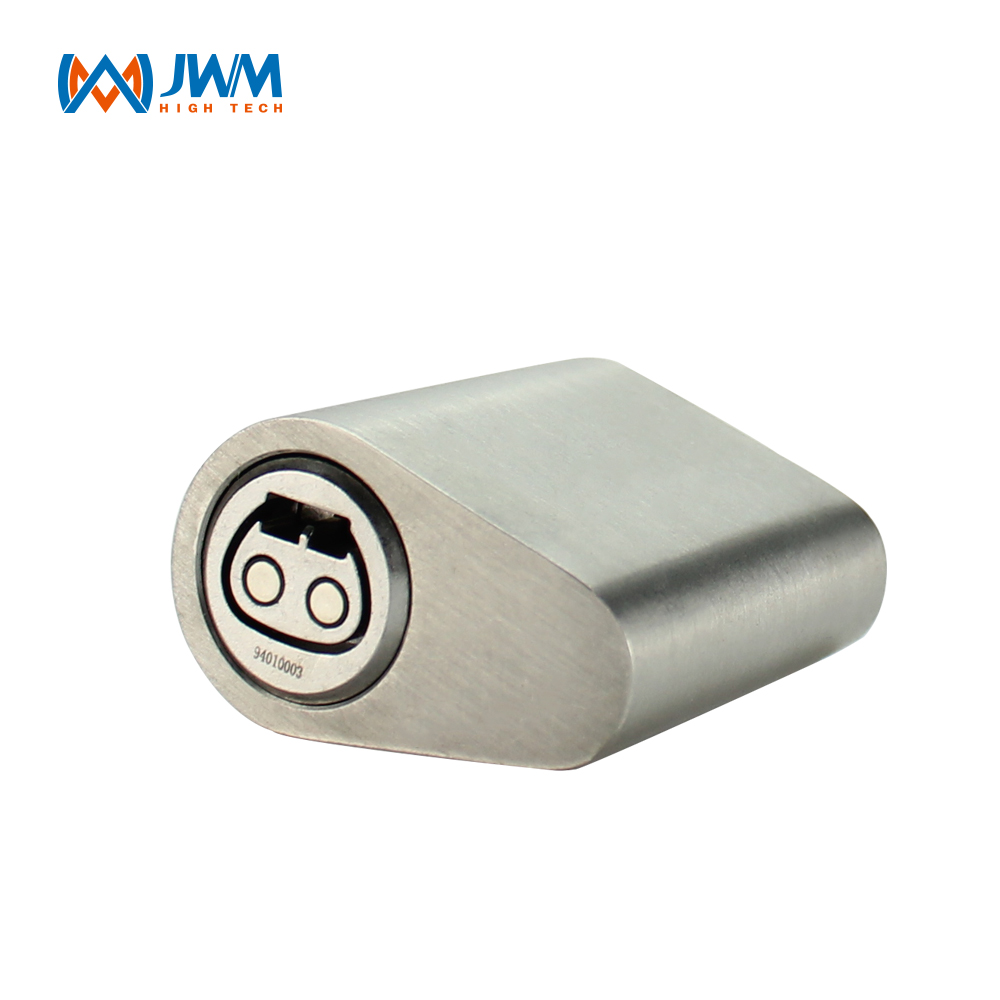

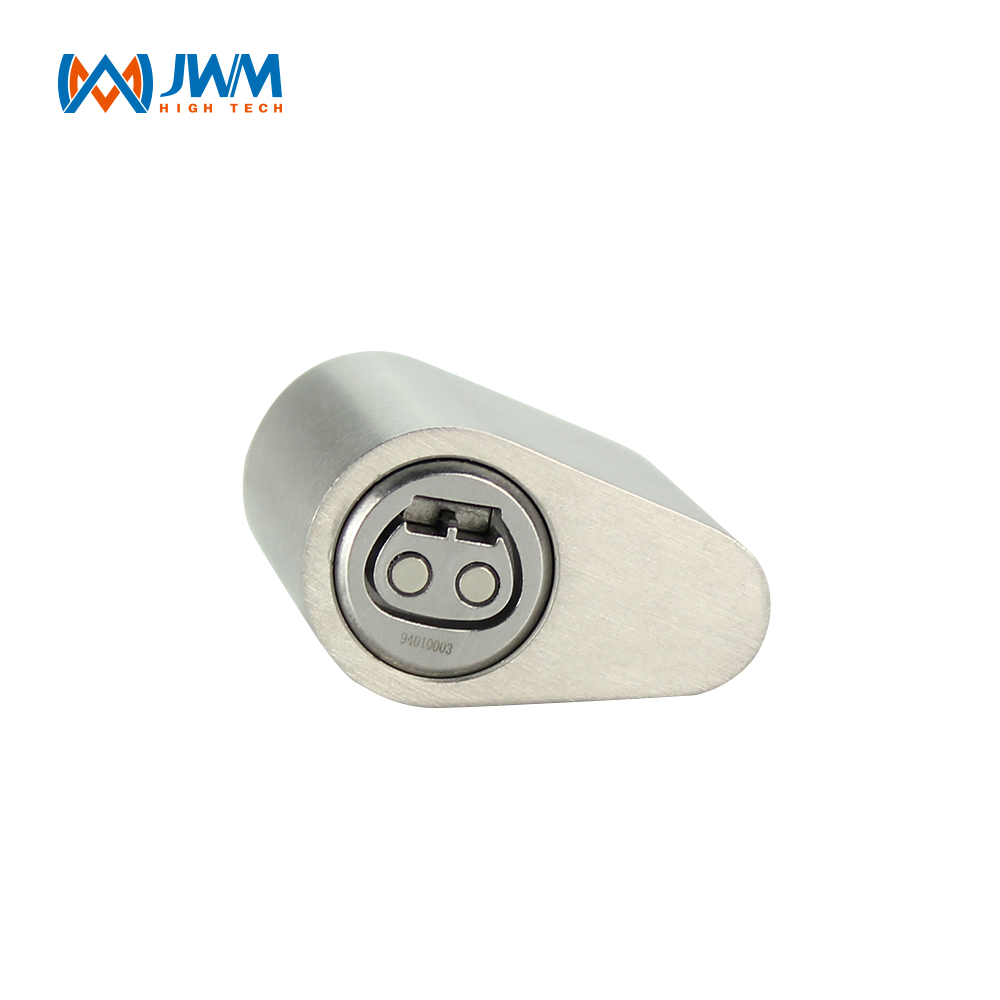

Intelligent Passive Electronic Lock Cylinder
This high-security electronic lock cylinder is designed to replace standard mechanical locks, offering a modern access control solution without the need for power or complex wiring. It features a robust, maintenance-free design that utilizes a two-way identity authentication scheme to prevent unauthorized access. Ideal for diverse environments, this system integrates seamlessly into existing door hardware to simplify key management and enhance overall site security.
Technical Specifications
IP Rating
IP68
Service Life
10 Years
Expected Service Life
- Construction Materials
- Hb59-1 CopperStainless SteelZinc AlloySteel
- Surface Treatment
- Chrome PlatedNickelingNatural Color Drawing
Environmental Conditions
- Operating Temperature
- -40°C to 70°C
- Operating Humidity
- 20% to 97%
Compliance
- Certifications
- CERoHS
System Capabilities
Core Features
- No external power required
- No wiring needed
- Maintenance-free operation
- Two-way identity authentication
- Re-programmable smart keys
- Compatible with padlock, cabinet, round, and cable locks
Compatibility
Model Variants
| Model Series | Primary Material |
|---|---|

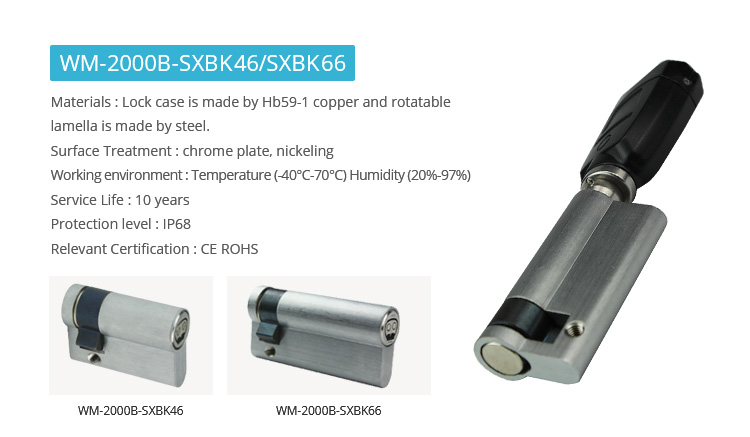

| WM-2000B-SXBK46/SXBK66 | Hb59-1 Copper |
| WM-2000B-SXFH1/SXFH2 | Stainless Steel / Zinc Alloy |
| WM-2000B-SXDK75/SXSK80 | Hb59-1 Copper |
