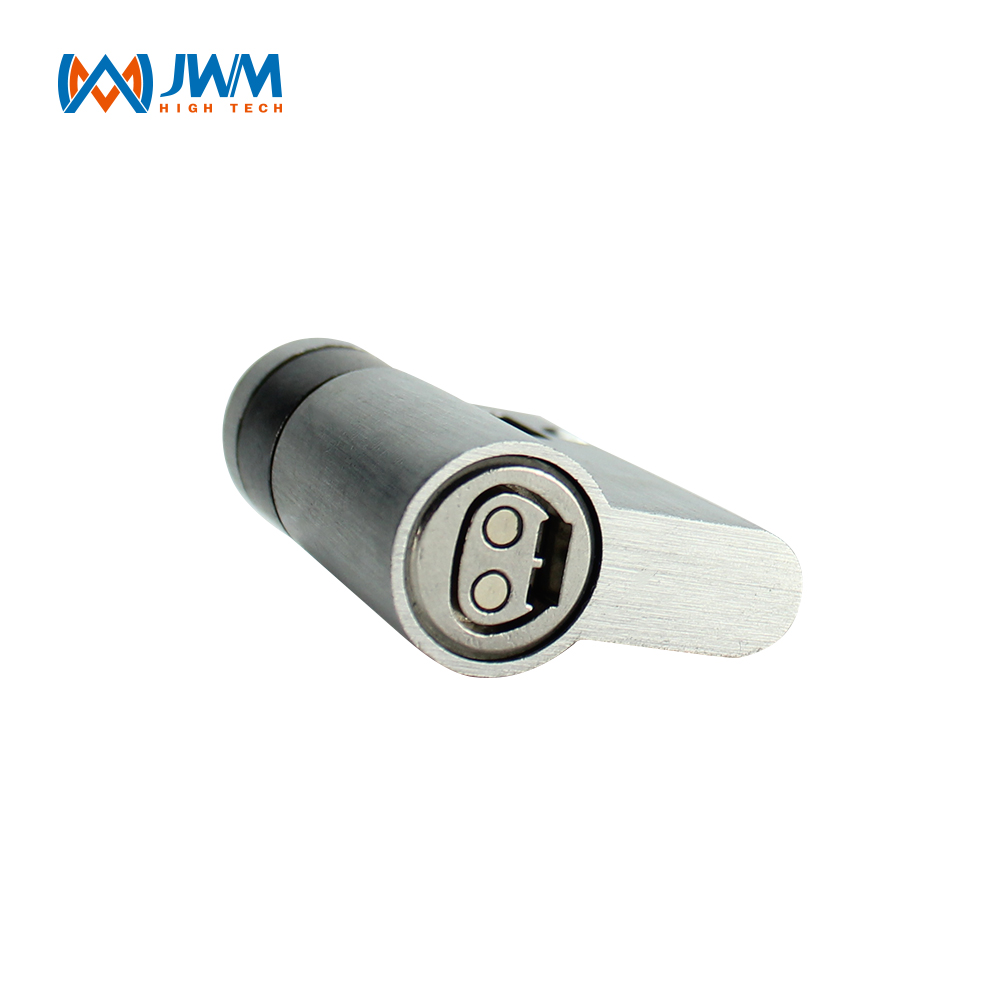

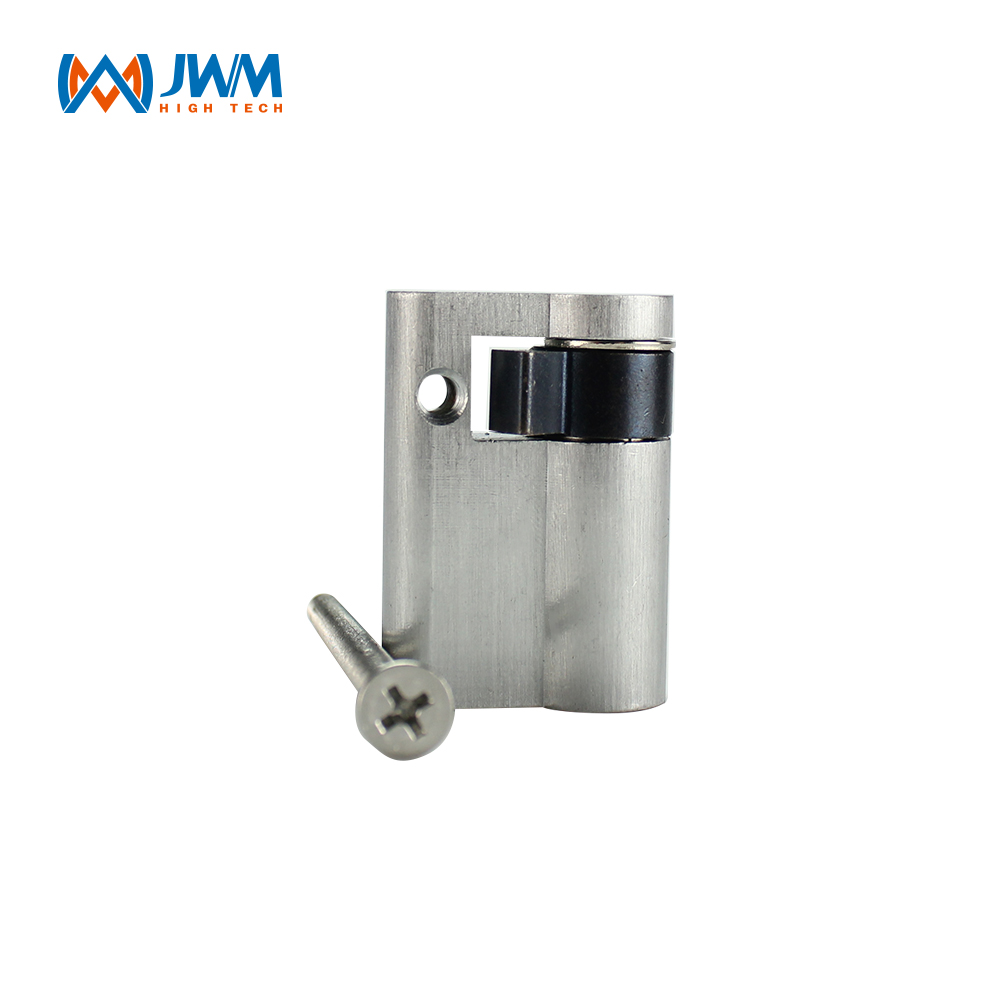

Electronic Door Lock Cylinder

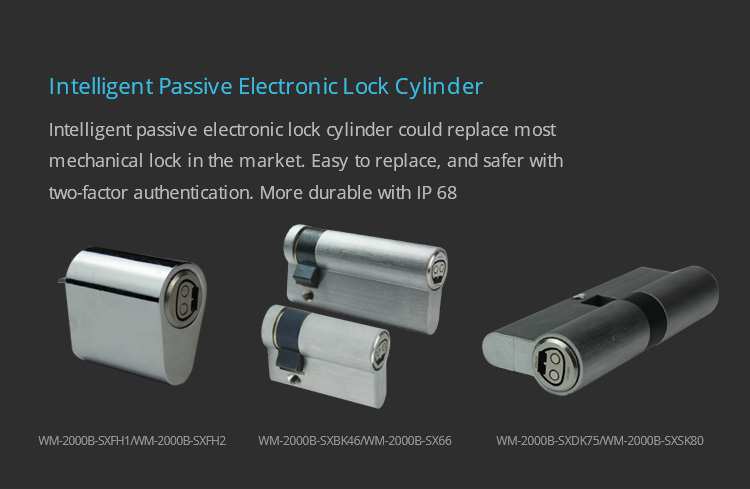

This electronic lock cylinder is designed as a replacement for most mechanical locks. It provides enhanced security through two-factor authentication and is rated IP68 for dust and water resistance.
Technical Specifications
Overview
Smart Access Control Solution
This European Standard Electronic Door Lock Cylinder is a key-centric access control solution designed to replace traditional mechanical locks without the need for wiring or external power. Each unique smart key is re-programmable, allowing security managers to easily grant or revoke access permissions and providing a robust audit trail of all unlocking events. Built with a passive electronic design, these cylinders offer a maintenance-free, high-security upgrade for diverse commercial and industrial environments.
Core Performance
Key Performance Metrics
10 Years
Service Life
68 IP
Protection Level
Technical Specifications
Operating Conditions
| Parameter | Range |
|---|---|
| Working Temperature | -40°C to 70°C |
| Working Humidity | 20% to 97% |
| Power Source | Passive (No internal battery/wiring) |
Material & Construction
Materials and Finish
- Lock Case: Hb59-1 Copper or Stainless Steel/Zinc Alloy
- Rotatable Lamella: High-strength Steel or Iron
- Surface Treatment: Chrome plating and Nickeling
- Finish: Stainless steel natural color drawing
Security Features
Security & Authentication
- Two-way identity authentication to prevent duplicate unlocking
- Re-programmable smart keys for quick disabling in case of loss
- Information task management function
- Audit trail recording for every unlocking event
Installation & Compatibility
Compatibility
- European Standard Cylinder profile
- Portable replacement: Whole size replaces original mechanical cylinders

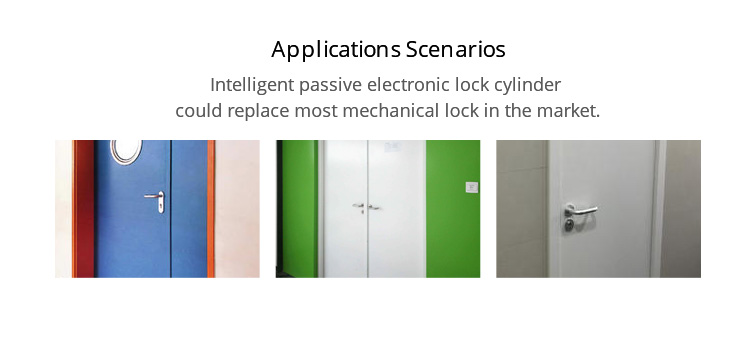

- Compatible with various lock types (Padlocks, Cabinet locks, Cable locks)
- No wiring or drilling required for installation
Certifications
Compliance
CEROHSIP68
