Electrical Isolator Switch
This electrical isolator switch is designed to safely disconnect electrical circuits during maintenance or emergencies. It features a durable enclosure with an IP66 rating, providing protection against dust and water ingress.
Technical Specifications
Overview
Robust Electrical Isolation
These isolator switches are engineered for reliable electrical power management in demanding industrial and commercial environments. Designed with durability in mind, they feature an IP66-rated enclosure that provides superior protection against dust and water ingress. With clear ON/OFF operation and international safety certifications, these units ensure safe circuit disconnection for maintenance or emergency situations.
Certifications
- Compliance & Standards
- SAASEMKOCBCEAU/NZ Standard
Technical Specifications
Performance Ratings
63 A
Max Current Rating
500 V
Max Voltage Rating
66 IP
Ingress Protection
Model Specifications
| Model | Current Rating | Voltage Rating |
|---|---|---|

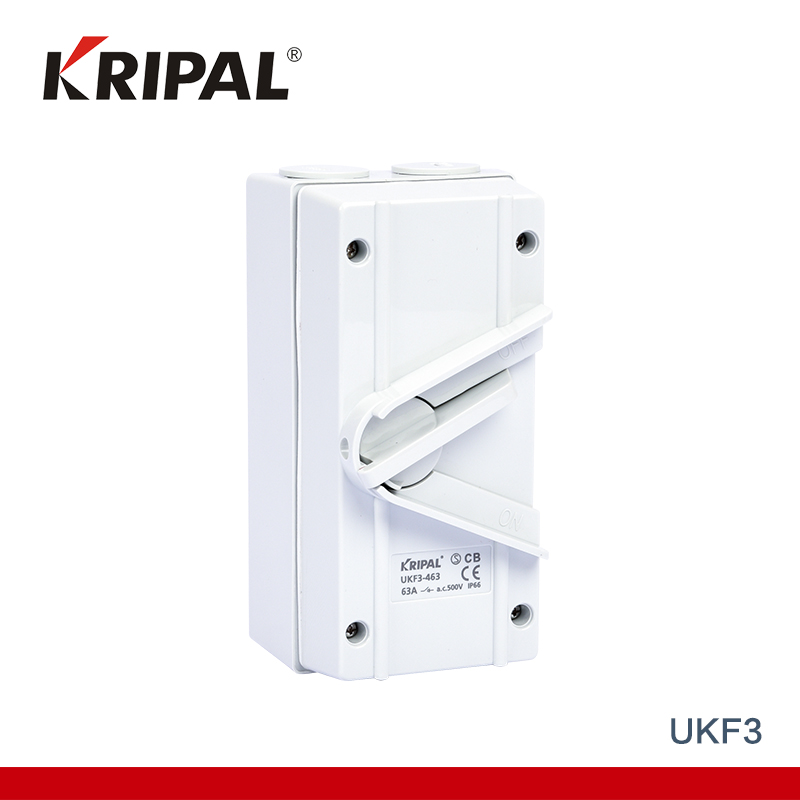

| UKF3-463 | 63A | 500V AC |

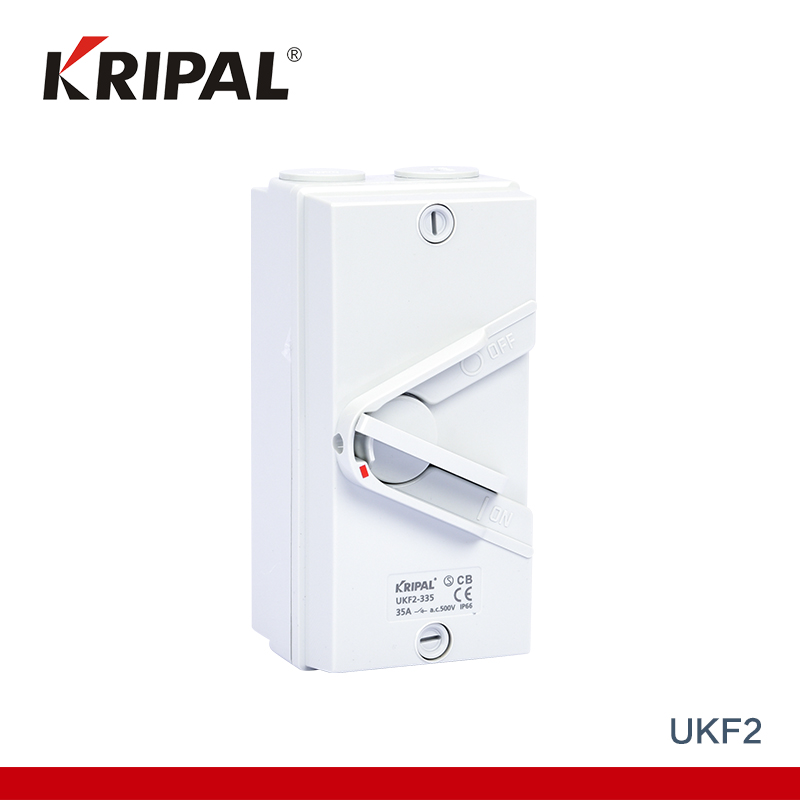

| UKF2-335 | 35A | 500V AC |
| UKF1-220 | 20A | 250V AC |
