Electrical Isolating Switch
These isolating switches are designed for electrical power transmission and distribution applications. They are compliant with IEC 60947-3 standards and feature a red handle for manual operation.
Technical Specifications
Overview
Professional Electrical Isolation
The R7 series isolating switch is engineered for reliable distribution and control in AC 50Hz or 60Hz circuits. Designed for versatility, it serves as a robust main switch for terminal electrical appliances and is capable of controlling motors, lighting, and low-power devices. It is an essential component for industrial, commercial, and residential electrical systems.
Technical Specifications
Available Current Ratings
- 100
- 125
Performance Highlights
50 Hz
Frequency
60 Hz
Frequency
- Rated Working Voltage
- 240/415V AC
- Compliance Standards
- IEC 60947-3CE

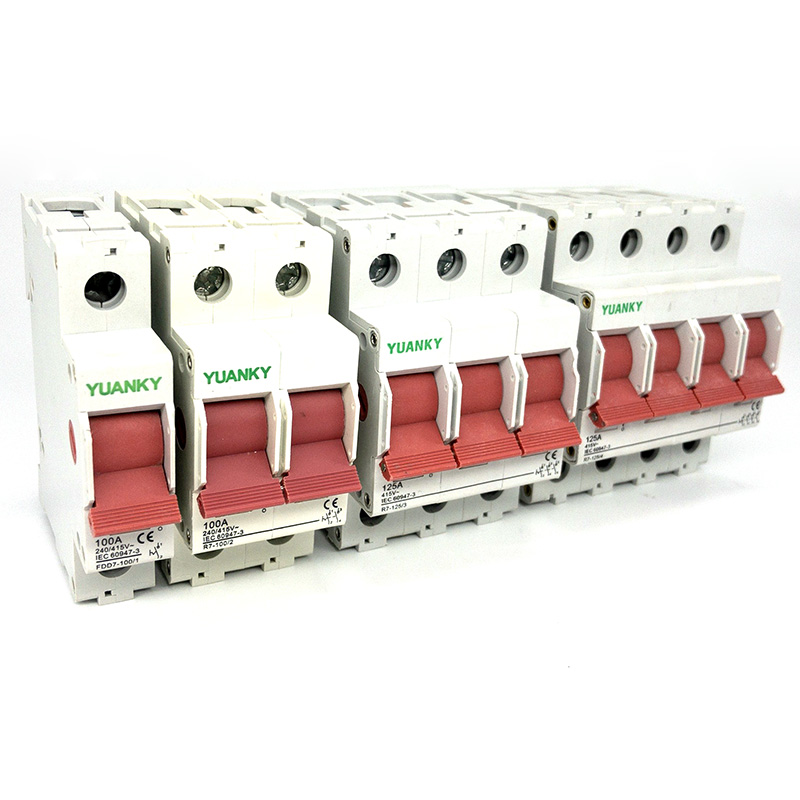

Model Variants
Model Range
| Model | Current Rating |
|---|---|

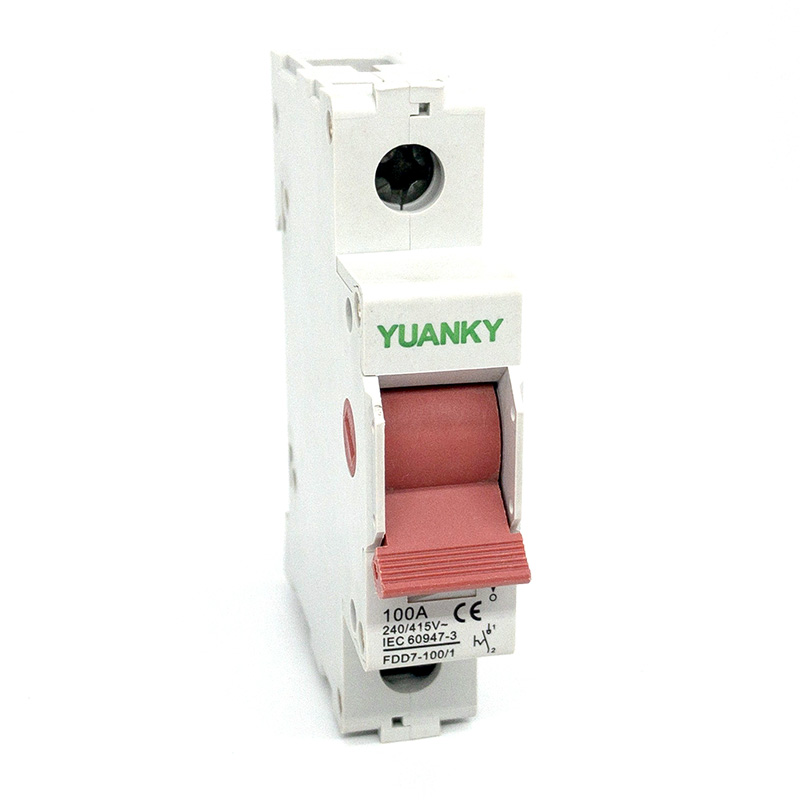

| FDD7-100/1 | 100 |
| R7-100/2 | 100 |
| R7-125/3 | 125 |
| R7-125/4 | 125 |
