Technical Specifications
Overview

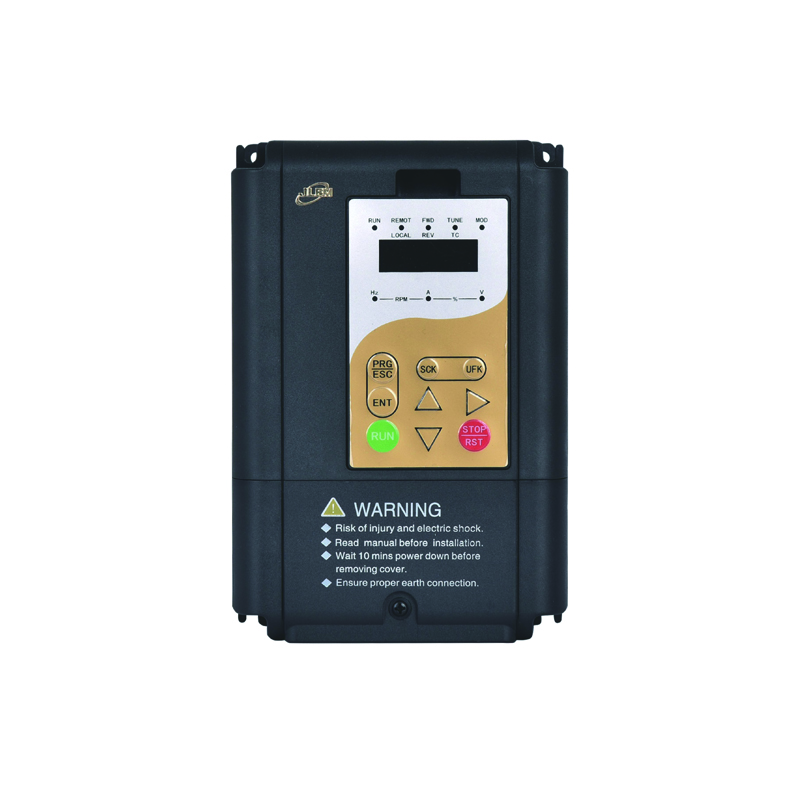

C300 Series High-Performance Inverter
The C300 Series Inverter is a versatile, high-precision solution designed for robust electric motor control across diverse industrial applications. Engineered with advanced vector control algorithms, it ensures superior low-speed stability and high-frequency torque capacity while supporting multiple control modes including SVC and FVC. With comprehensive built-in protection mechanisms and flexible communication interfaces, this inverter optimizes motor performance, reduces energy consumption, and maintains operational reliability in demanding environments.
Technical Capabilities
Control Modes
- Vector control with speed sensor (FVC)
- Vector control without speed sensor (SVC)
- V/F control mode
- V/F separation mode control
- Voltage Levels
- Single-phase 220VThree-phase 220VThree-phase 380VThree-phase 480VThree-phase 520VThree-phase 690VThree-phase 1140V
Performance Metrics
Key Performance Metrics
500 Hz
Max Frequency
16 KHz
Max Carrier Frequency
0.02 %
FVC Speed Precision
Overload Capacity
| Type | 60s Overload | 3s Overload |
|---|---|---|
| G Type | 150% Ie | 180% Ie |
| P Type | 120% Ie | 150% Ie |
Features & Connectivity
Communication & Encoders
- Modbus-RTU
- Differential Encoder
- Open Collector Encoder
- Rotary Transformer Encoder
- UVW Encoder
Advanced Functions
User ProgrammingVirtual I/OPT100/PT1000 ProtectionFast Current LimitingMulti-motor SwitchingPID Process Control
Compliance
Certifications & Standards
- EMC: EN61800-3
- EMC: EN55011
- EMC: EN61000-6-2
- LVD: EN61800-5-1
