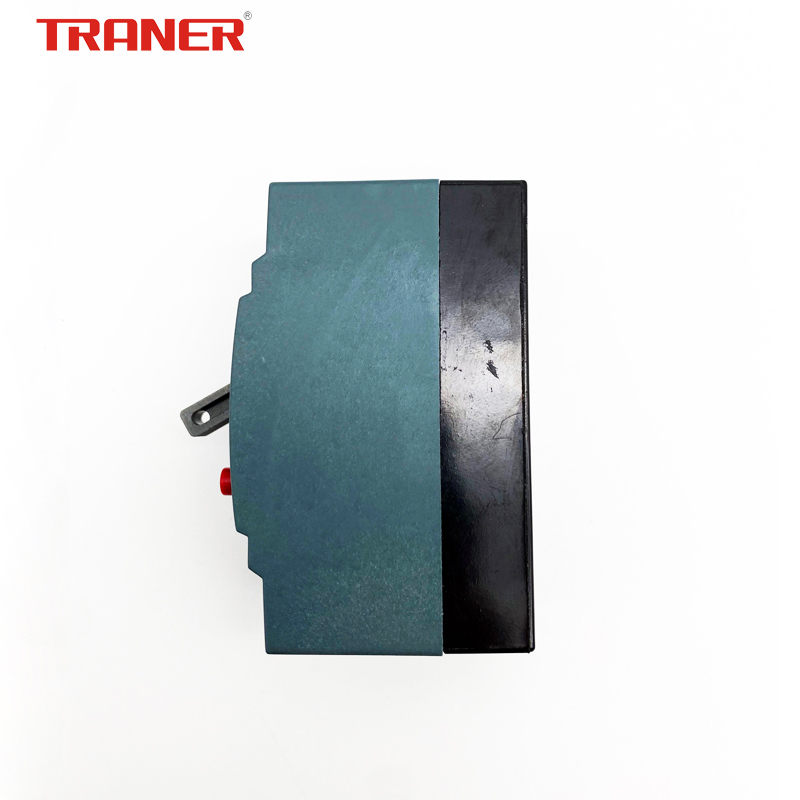

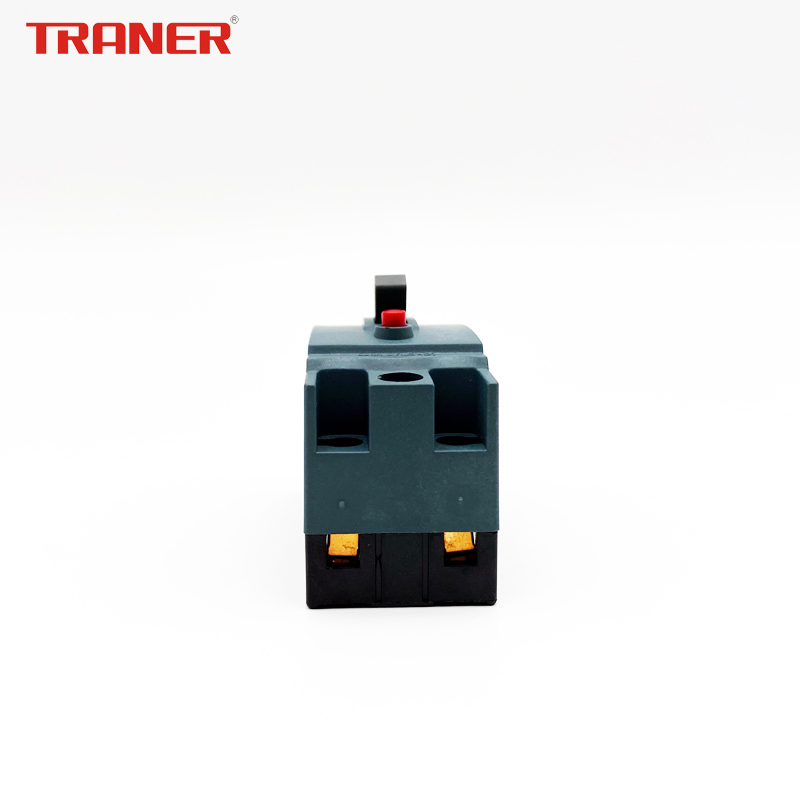

Earth Leakage Circuit Breaker RCCB 16A-40A
This earth leakage circuit breaker (RCCB) is designed to protect against electrical leakage. It is available in current ratings from 16A to 40A.
Technical Specifications
Product Overview
Compact Safety Protection
The TRL-40(a) series is a high-performance Earth Leakage Circuit Breaker (RCCB) engineered to provide reliable ground fault protection for residential, commercial, and industrial applications. This compact device is designed for easy assembly and efficient circuit interruption, significantly reducing the risk of electric shock and potential fire hazards. Featuring a robust construction, it ensures stable operation across various electrical distribution systems while adhering to international safety standards.
Key Features
- Why Choose This RCCB
- Compact SizeEasy AssemblyPatent DesignEarth Leakage Protection
Technical Specifications
Available Rated Currents
- 16A
- 20A
- 25A
- 32A
- 40A
Performance Metrics
0.1 s
Residual Current Off-Time
2.5 kA
Short Circuit Current (Inc)
500 A
Breaking Capacity (Im)
Electrical Characteristics
| Parameter | Value |
|---|---|
| Operating Residual Current (IΔn) | 15mA, 30mA |
| Poles | 2 |
| Rated Voltage | 110V AC, 220V AC |
| Operation Type | AC |
| Trip Type | Electronic |
Durability and Dimensions
| Feature | Spec |
|---|---|
| Electrical Endurance | 1000 operations |
| Mechanical Endurance | 2000 operations |
| Dimensions (L*W*H) | 70mm * 32mm * 51mm |
Compliance and Standards
Approvals & Compliance
CECCCIEC/EN 61008-1GB 16916.1
