Technical Specifications
Product Overview
Reliable Earth Leakage Protection

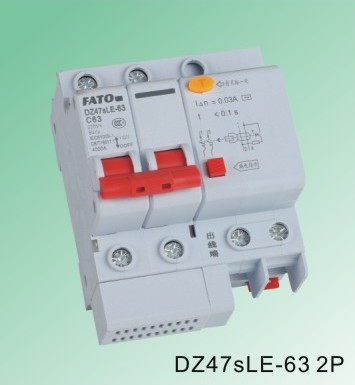

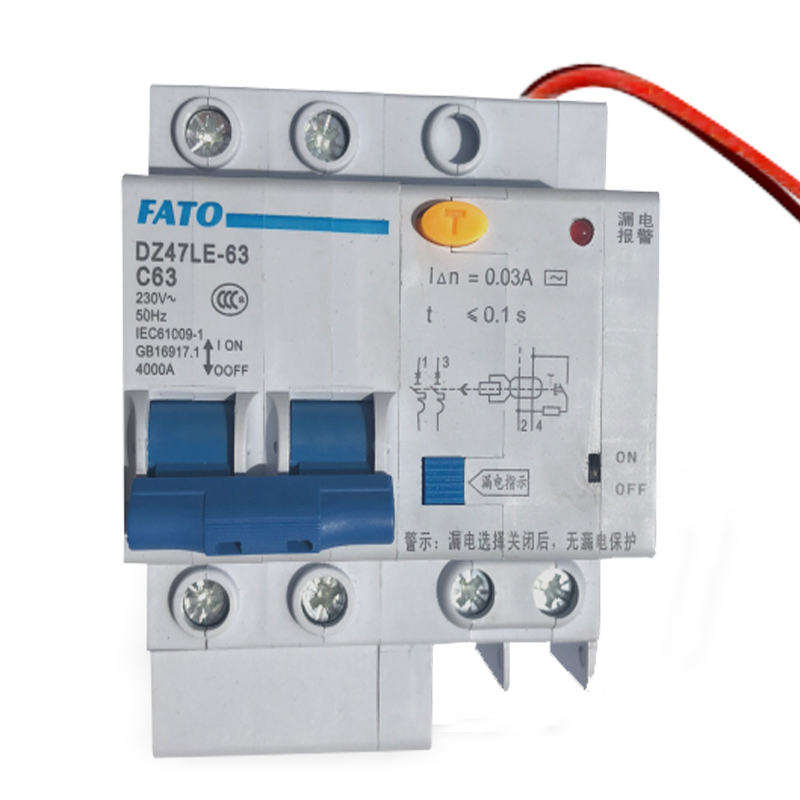

The DZ47LE-63 series is a versatile earth leakage circuit breaker engineered for both residential and commercial electrical systems. It provides comprehensive protection by detecting earth leakage faults, overloads, and short circuits, ensuring the safety of both personnel and equipment. With rapid response times and robust design, it offers dependable performance for AC 50Hz/60Hz circuits.
Electrical Ratings
- Rated Voltage
- 400 V
- Rated Current
- 63 A
- Frequency
- 50Hz/60Hz
Performance Metrics
Key Performance Metrics
0.03 A
Residual Operating Current (IΔn)
0.1 s
Max Response Time
4,000 A
Rated Breaking Capacity
Standards & Compliance
- Compliance Standards
- IEC61009-1GB16917.1
Features
Key Features
Overload ProtectionShort Circuit ProtectionEarth Leakage ProtectionDIN Rail MountingON/OFF Indicator
