Dual Actuator Optical Sensor Module
This optical module features dual actuators and a central sensor unit with a blue protective film. It is designed for precise positioning and control in security applications.
Technical Specifications
Overview
Dual Actuator Optical Sensor Module
The VIRIS95 is a high-precision optical module engineered for advanced security and imaging applications. It features dual actuators and a central sensor unit designed for reliable positioning and control. With specific electrical characteristics including a start voltage of 3.3V and a maximum output of 5V, this module provides consistent performance for demanding optical systems.
Electrical Specifications
IRIS Voltage Parameters
3.3 V
Start Voltage
0.5 V
Close Voltage
0.3 V
Ripple Voltage (Max)
5 V
Output Voltage (Max)
IRIS Resistance
465 Ω
Drive Resistance
190 Ω
Deboost Resistance
Optical Performance
Optical & Hall Effect Metrics
8 mm
Max Effective Aperture
103 mV
Max Hall Voltage
26.5 mV
Min Hall Voltage
- S Parameter Range
- -30% to 30%
Additional IR Specs
IR Performance
3.5 V
IR Voltage
100 Ω
IR Resistance
6 V
Voltage Range (Max)
Compatibility

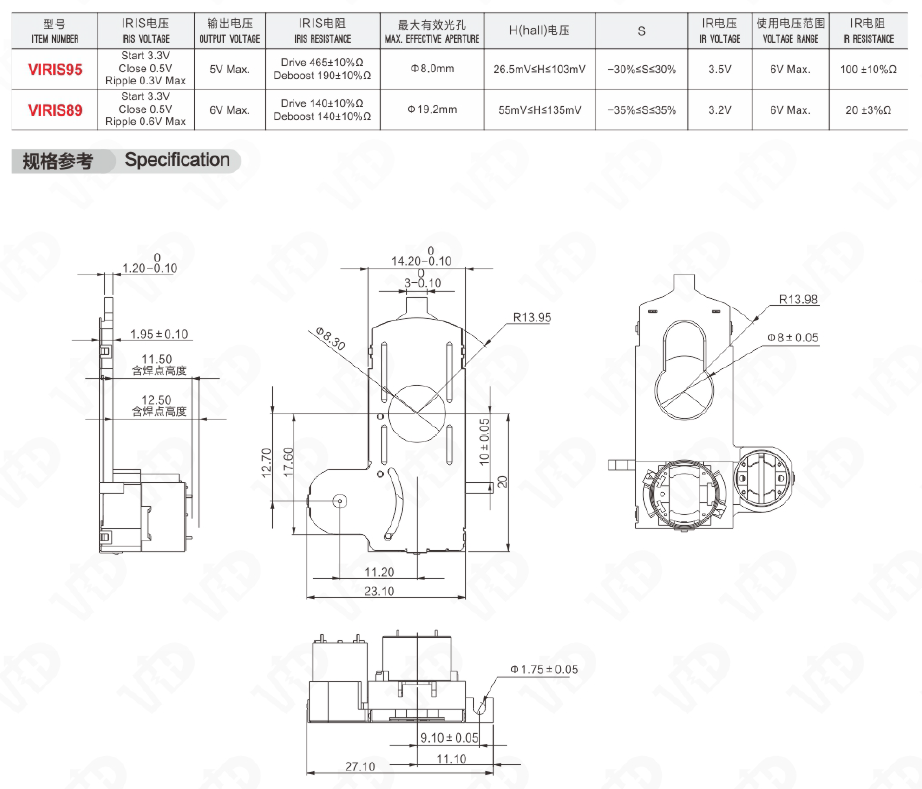

Model Comparison Table
| Feature | VIRIS95 | VIRIS89 |
|---|---|---|
| Max Aperture | 8.0mm | 19.2mm |
| Ripple Voltage (Max) | 0.3V | 0.6V |
| Drive Resistance | 465Ω | 140Ω |
| Deboost Resistance | 190Ω | 140Ω |
