Dry Powder Briquetting Press
The dry powder briquette machine compresses materials into specified shapes without needing a binder. It is used for compressing active materials like quicklime powder and magnesium oxide.
Technical Specifications
Product Overview
Industrial Dry Powder Briquetting

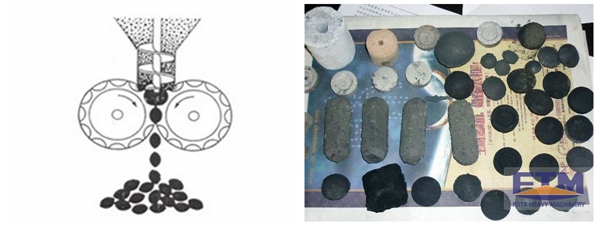

This high-performance dry powder briquetting press is engineered to compress various materials into uniform shapes without the need for additional binders. Designed for demanding industrial environments, it utilizes a powerful hydraulic system and counter-rotating rollers to densify powders into durable briquettes. It is an essential solution for streamlining material handling, storage, and transportation across sectors such as metallurgy, mining, chemical engineering, and power generation.
Applications
- Compatible Materials
- Quicklime powderMagnesium oxideIron powderAluminum powderIron oxide sheetPowdered carbonSlurryGypsumGangueSludgeKaolinActive carbonDusk coke
Technical Specifications
Performance Metrics
| Model | Capacity (t) | Roll Diameter (mm) | Motor Power (kw) | Hydraulic Motor (kw) |
|---|---|---|---|---|
| QY367 | 1-1.5 | 367 | 37-45 | 2.2 |
| QY528 | 3-3.5 | 528 | 45-55 | 2.2 |
- Rotating Speed
- 7 rpm
- Roll Surface Width
- 200 mm
