Technical Specifications
Overview
High-Efficiency Carbonization System
This advanced carbonization furnace is designed for the anaerobic dry distillation of various biomass materials, transforming them into high-quality charcoal. By utilizing a sophisticated gas recovery and purification system, the unit recycles combustible byproducts to fuel the process, ensuring energy efficiency and compliance with environmental standards. The modular split-design separates the combustion chamber from the furnace, enabling continuous operation and significantly increased production throughput.
Technical Specifications
Carbonization Process Stages
| Stage | Temperature Range | Key Process |
|---|---|---|
| Drying | Up to 160°C | Moisture evaporation |
| Initial Carbonization | 160°C - 280°C | Thermal decomposition |
| Full Carbonization | 300°C - 650°C | Gas generation & distillation |
| High-Temperature Calcination | 800°C - 1000°C | Graphite structure enhancement |
- Compatible Feedstock
- Wood chipsRice husksPeanut shellsPlant stalksBark
Key Features

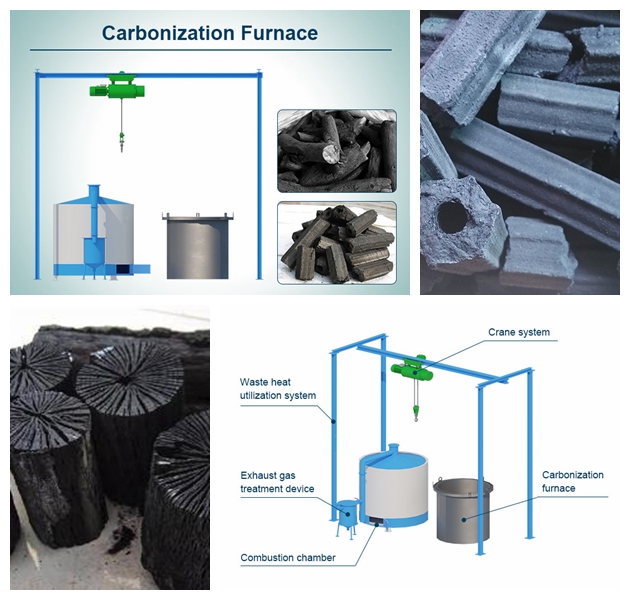

System Components
- Combustion chamber
- Carbonization liner
- Exhaust gas treatment device
- Waste heat utilization system
- Crane handling system
Operational Advantages
Energy savingFast coolingContinuous operationSmoke-free combustionHigh calorific value output
