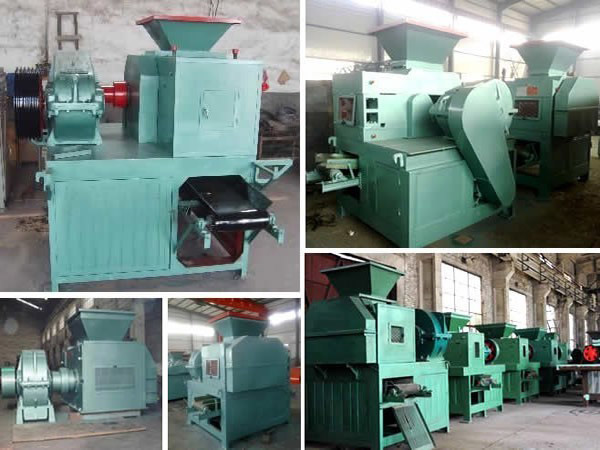

Twin-Roller Briquette Compactor
The twin-roller briquetting machine enhances pressure to process materials like magnesia, bauxite, dolomite, and iron powder. Precise processing enables the formation of denser ball bases, widely utilized across metallurgy, chemical, coal, and fireproofing material sectors.
Technical Specifications
Product Overview
Industrial Briquette Compaction
The twin-roller briquette compactor is an essential machine for metallurgy, chemical processing, and fireproofing industries. By utilizing high-pressure roller technology, it efficiently converts raw powders into dense, high-quality ball pellets. This robust system is specifically engineered to handle materials such as magnesia, bauxite, dolomite, and iron powder.
Operational Requirements
Material Guidelines
- Granularity: 80-200 mesh
- No metal contaminants allowed to prevent roller damage
- Adjustable screw feeder speed recommended for consistent supply
Technical Specifications
Technical Data Table
| Model | Roll Diameter (mm) | Total Pressure (t) | Motor Power (kw) | Output (t/h) |
|---|---|---|---|---|
| HYG367-80 | 367 | 80 | 37 | 1.0 |
| HYG399-80 | 399 | 80 | 37 | 1.5 |
| HYG399-90 | 399 | 90 | 45 | 2~2.5 |
| HYG480-90 | 480 | 90 | 45 | 2~2.5 |
| HYG522-100 | 522 | 100 | 37 | 3~3.5 |
| HYG520-150D | 520 | 150 | 55 | 3.8~5.5 |
| HYG522-150 | 522 | 150 | 55 | 3.2~4.8 |
| HYG650-150 | 650 | 150 | 55 | 3~4 |
| HYG650-200 | 650 | 200 | 75 | 4~5 |
| HYG650-220D | 650 | 220 | 95 | 5~6 |
| HYG650-220 | 650 | 220 | 130 | 4~5 |
| HYG750-230 | 750 | 230 | 155 | 5~6.5 |
| HYG750-270 | 750 | 270 | 180 | 6~7.5 |
| HYG750-300 | 750 | 300 | 210 | 6.8~8.5 |
