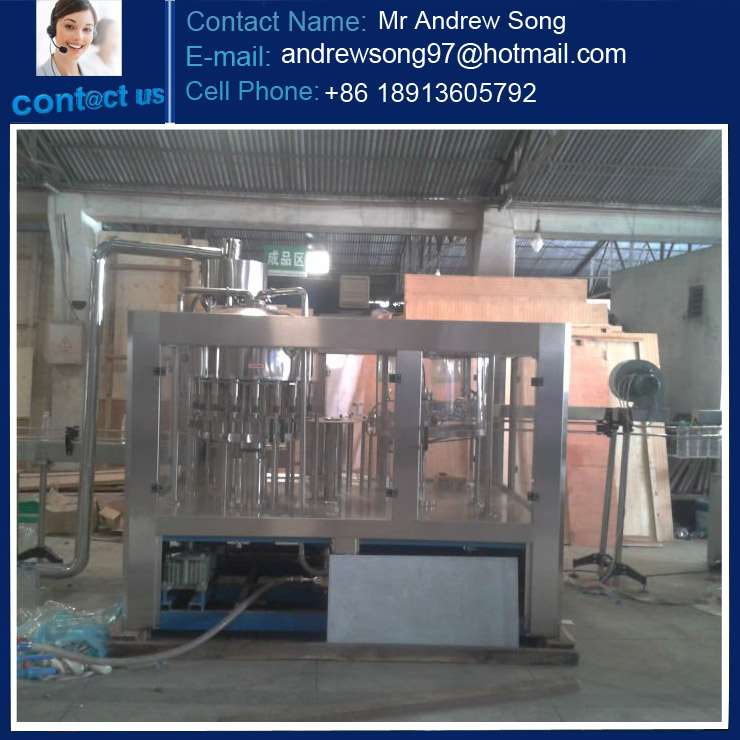

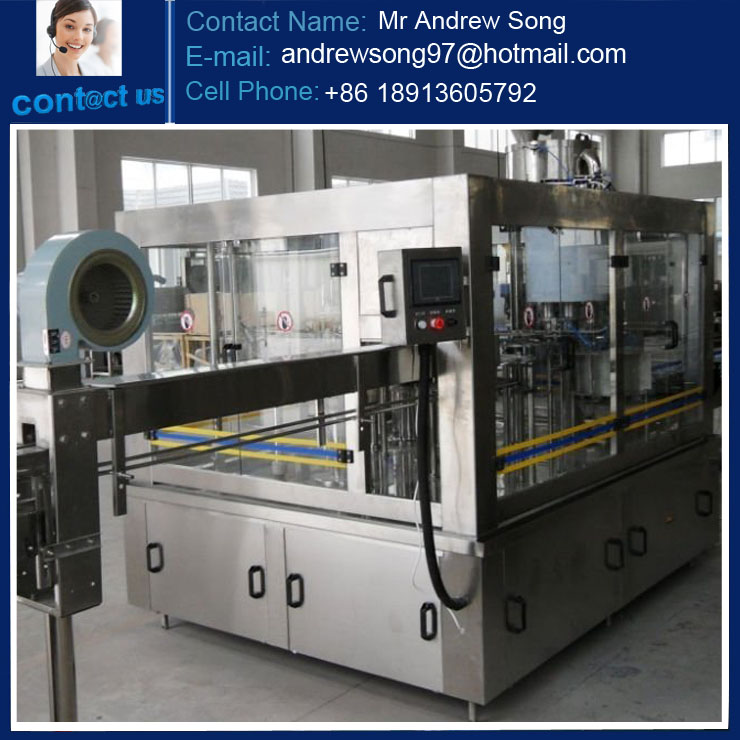

Drinking Water Purification and Bottling Machine
This machine is engineered for filling water, juice, and other non-carbonated beverages at normal temperature into various containers. It is customizable based on production capacity, filling liquid, bottle types, and cap specifications.
Technical Specifications
Product Overview
Comprehensive Bottling Solution
This integrated system provides a complete solution for drinking water production, covering everything from water treatment to final packaging. It is designed to handle non-carbonated liquids such as pure water, mineral water, and juices at normal temperatures. The machine is highly customizable to accommodate various production capacities, bottle types, and capping requirements.
Key Performance Metrics
Performance Highlights
15,000 BPH
Production Capacity
24 pcs
Filling Stations
8 pcs
Capping Heads
Technical Specifications
Material
Stainless Steel
- Model
- CGF 24-24-8
- Filling Method
- Gravity filling
Production Capabilities
Supported Bottle Sizes
- 250ml
- 500ml
- 750ml
- 1000ml
- 1500ml
- Compatible Liquids
- Drinking WaterPure WaterMineral WaterNon-carbonated Juice
- Container Types
- PET BottleGlass BottleAluminum Can
- Cap Type
- Normal plastic screw cap
System Components
Complete Line Solution
- Water treatment system
- Water filling machine
- Bottled water packing machine
- PET bottle blow molding machine
- Bottle unscrambler
Design Features
- Transparent monitoring enclosures
- Digital control panel
- Integrated conveyor system
- Internal ventilation system
- Rotary high-speed design
