Technical Specifications
Overview
High-Efficiency Industrial Vacuum Sealing

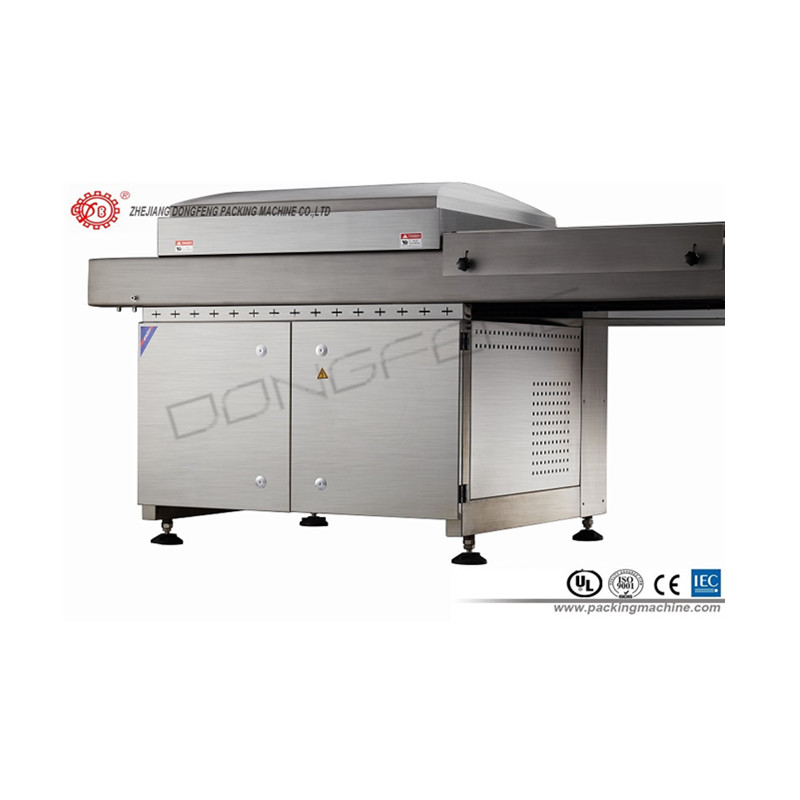

The DZK-500/S is a high-speed double chamber vacuum packaging machine engineered for demanding industrial environments. Featuring a robust stainless steel construction and dual heavy-duty vacuum pumps, it significantly increases production throughput by allowing simultaneous loading and sealing. Its versatile design includes an inclined chamber and height-adjustable support plates, making it an ideal solution for packaging liquids, coffee, tea, and various specialty products requiring vertical or square packaging.
Performance & Power
- Motor Power
- 1800 W
- Sealing Power
- 600 W
- Ultimate Vacuum Pressure
- 1 Kpa
- Vacuum Pump Capacity
- 2x20 m3/h
Technical Specifications
Chamber Material
SUS304 Stainless Steel
- Chamber Dimensions (L×W×H)
- 550×500×180 mm
- External Dimensions (L×W×H)
- 1690×710×1055 mm
- Net Weight
- 220 Kg
- Sealing Width
- 10 mm
Features
Key Features
- Double chamber design for high-speed production
- Inclined vacuum chamber for liquid products
- Height-adjustable support plate
- Includes casters for mobility
- Compatible with square-effect moulds
- Supported Voltages
- AC 380V/50Hz220V/50Hz110V/60Hz
