Differential Pressure Transmitter
Differential pressure transmitter designed for accurate and reliable pressure measurement. It utilizes advanced sensor technology to provide stable readings, ensuring precise control and monitoring of pressure systems.
Technical Specifications
Overview
Precision Pressure Sensing

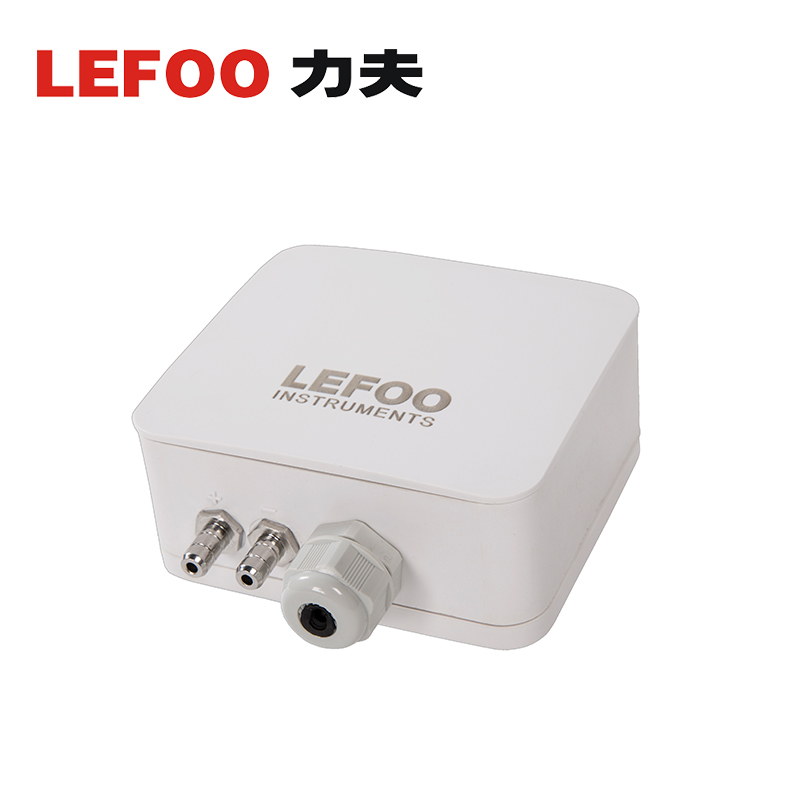

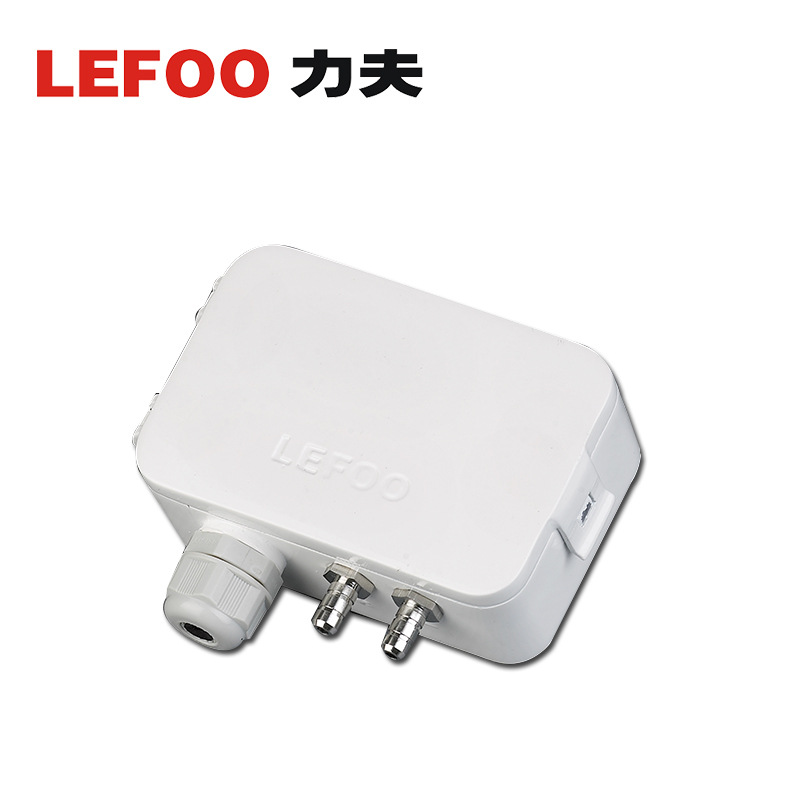

The LFM108 differential pressure transmitter is designed to accurately detect differential or gauge pressure and convert it into a proportional analogue signal. It is engineered for reliability in demanding environments like HVAC, clean rooms, and furnace draft control. With versatile output options and a wide range of pressure measurement capabilities, this transmitter ensures precise monitoring and control for air and neutral gas applications.
Performance
- Accuracy
- 1 %FS
- Over Pressure Capacity
- 15 x
- Compensated Temperature Range
- -10°C to +60°C
Electrical
Supply Voltage
| Output Type | Voltage Range |
|---|---|
| 0-10VDC | 12-30VDC |
| 4-20mA | 10-30VDC |
- Output Signals
- 0-10VDC (3-wire)4-20mA (2-wire)
Mechanical
- Housing Material
- Industrial plastic (UL94-V0 fire resistance)
- Pressure Connection
- Ribbed Ø6.2mm
- Weight
- 140 g
Compatibility
Typical Applications
- HVAC Systems
- Energy Management Systems
- Static Duct Pressure
- Clean Room Pressure
- Furnace Draft Control
- Compatible Media
- AirNeutral gases
