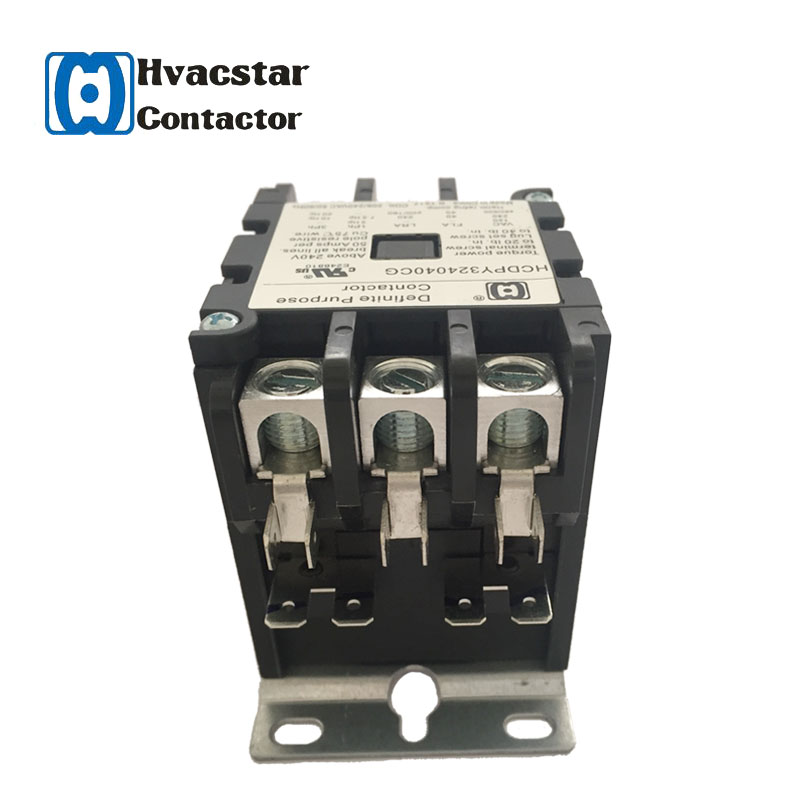

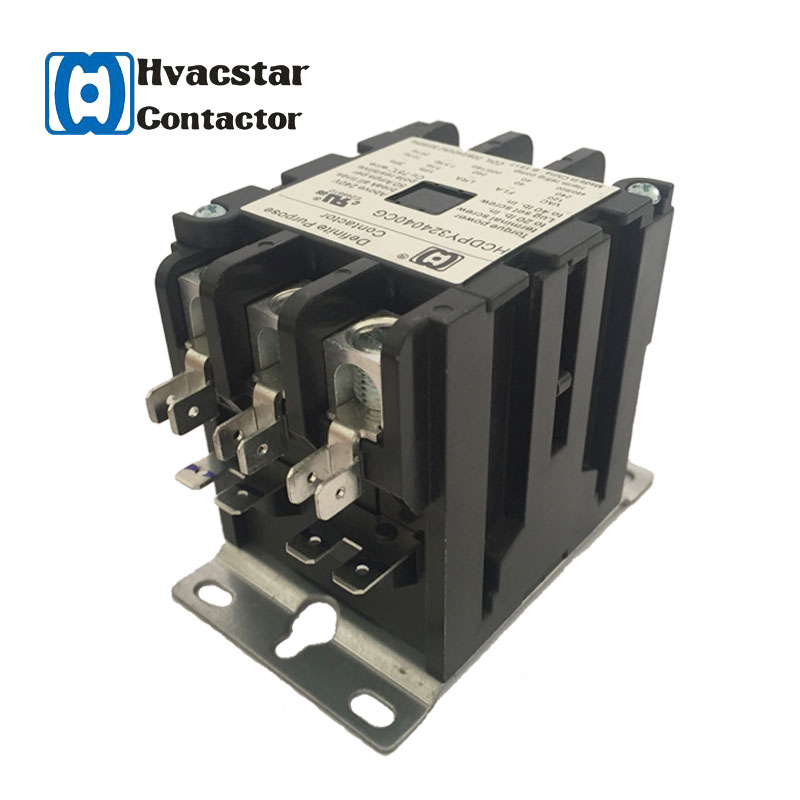

Definite Purpose AC Contactor HCDPY-312040
This definite purpose AC contactor is CUL certified and suitable for various electrical systems. It is designed for HVAC and refrigeration applications requiring reliable switching and control.
Technical Specifications
Product Overview
High-Performance Definite Purpose Contactor
This CUL-certified AC contactor is engineered specifically for demanding HVAC&R applications, providing reliable switching for motors and electrical loads. Built for longevity, it features premium silver contacts and a durable molded housing designed to withstand up to 1,000,000 mechanical cycles. With flexible mounting and secure terminal options, it serves as a robust solution for professional electrical control systems.
Electrical Ratings
Key Electrical Ratings
50 A
Full Load Amps (Inductive)
65 A
Resistive Amps
240 V
Coil Voltage
- Number of Poles
- 3P
- Frequency
- 50/60 Hz
Performance Data
Locked Rotor Amps (LRA)
| Voltage (V) | LRA (A) |
|---|---|
| 240V | 300 |
| 480V | 250 |
| 600V | 200 |

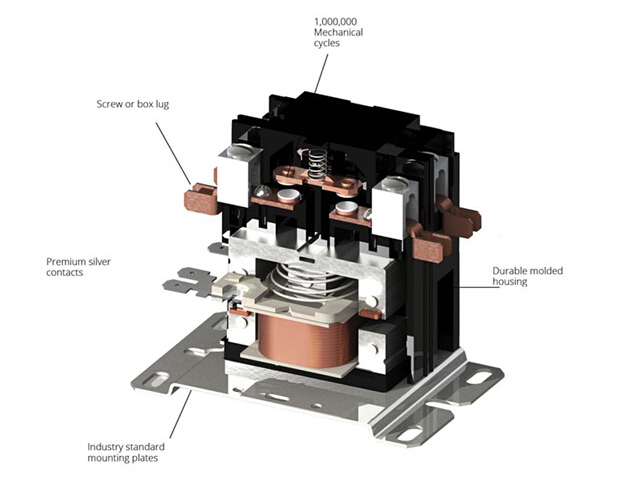

Construction & Durability
- Mechanical Endurance
- 1000000 cycles
- Contact Material
- Premium silver contacts
- Housing
- Durable molded housing
Installation & Wiring
Torque Specifications
- Terminal screw: 20 lb-in
- Lug set screw: 40 lb-in
- Terminal Options
- Screw TerminalsBox Lug Terminals
- Wire Compatibility
- Cu 75°C wire
- Mounting
- Industry standard mounting plates
Compliance
Certifications
CUL CertifiedCEISO 9001
