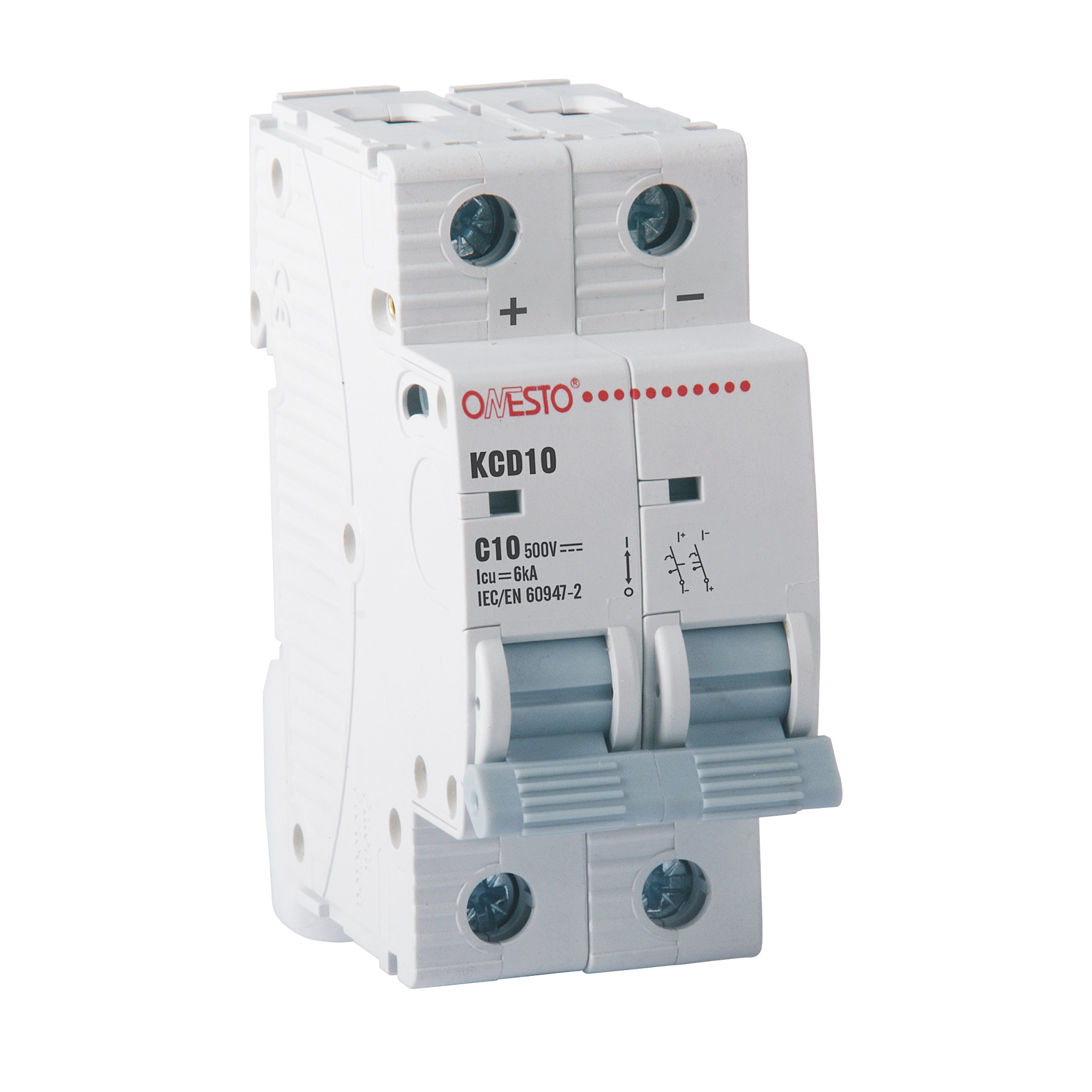

DC Miniature Circuit Breaker
This DC miniature circuit breaker provides circuit protection in DC applications. It is compliant with IEC/EN 60947-2 standards, providing reliable overcurrent and short-circuit protection for DC circuits.
Technical Specifications
Overview
Reliable DC Circuit Protection
This DC Miniature Circuit Breaker is engineered to provide robust overcurrent and short-circuit protection in demanding DC applications. Compliant with IEC60947-2 standards, it ensures safety and reliability across a wide range of DC power distribution systems. With flexible configuration options including multiple poles and various current ratings, it is an essential component for maintaining circuit integrity.
Electrical Ratings
Breaking Capacity
6 kA
Rated Short-Circuit Breaking Capacity
6 kV
Rated Impulse Withstand Voltage
Rated Voltage
| Configuration | Voltage |
|---|---|
| 1P | 250V |
| 2P | 500V |
| 3P | 750V |
| 4P | 1000V |
Available Rated Currents
- 1
- 2
- 3
- 4
- 6
- 10
- 16
- 20
- 25
- 32
- 40
- 50
- 63
Technical Specifications
Standards Compliance
IEC60947-2
- Tripping Curves
- BC
- Rated Insulation Voltage
- 1000 V
