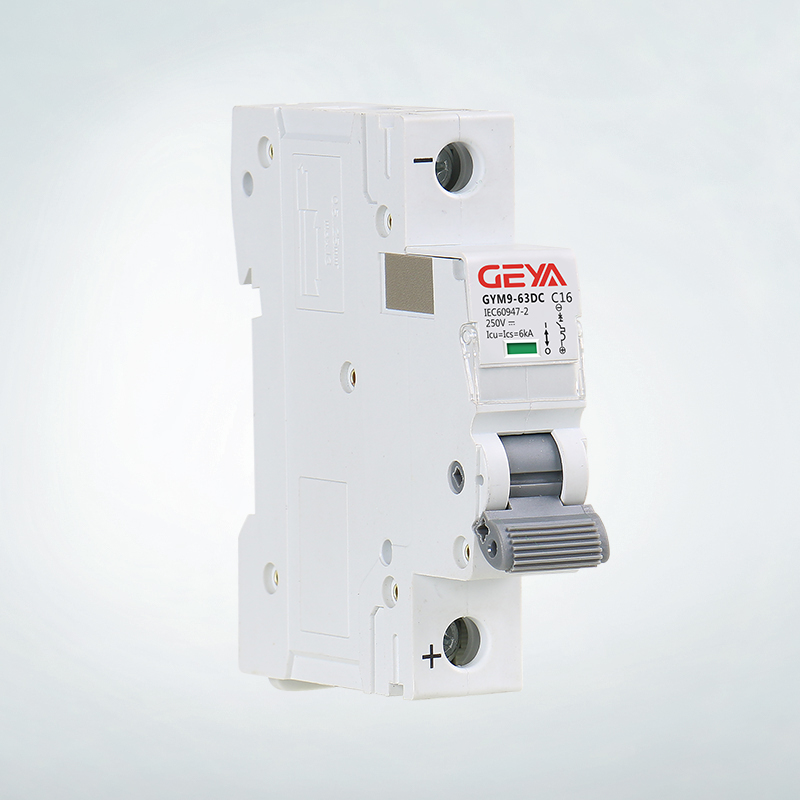

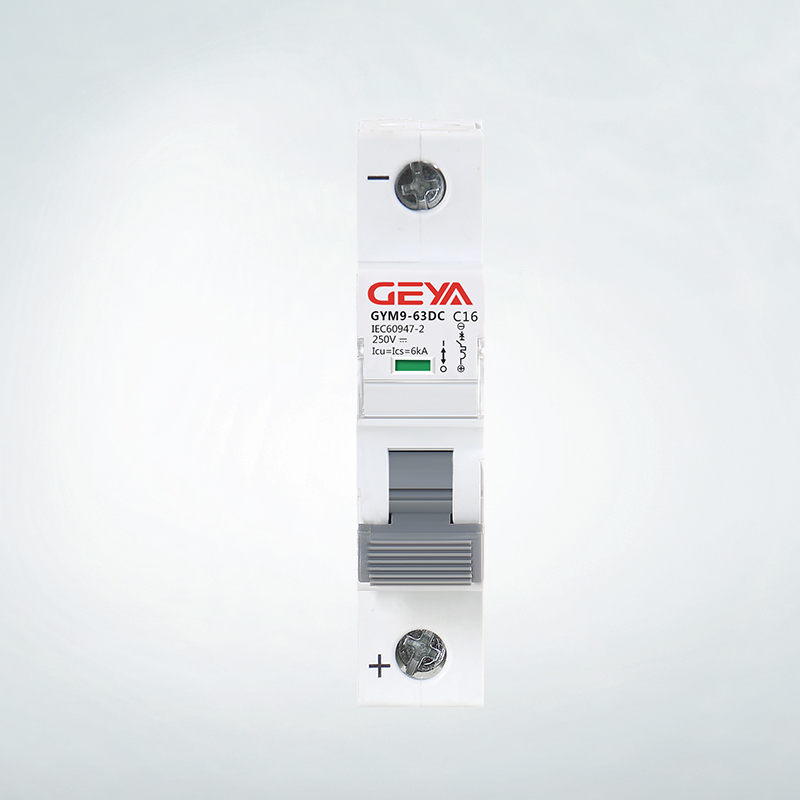

DC Miniature Circuit Breaker, 250V, 6kA
This miniature circuit breaker is designed for DC circuits, offering protection against overloads and short circuits. It is rated up to 250V with a 6kA Icu/Ics and complies with IEC60947-2 standards.
Technical Specifications
Overview
Reliable DC Circuit Protection
This DC miniature circuit breaker is engineered for robust overload and short-circuit protection in direct current applications, including communications and photovoltaic systems. Designed for safety and ease of use, it features a contact position indicator and a transparent cover for labeling. With versatile busbar wiring capabilities and a high connecting capacity, it is built for reliable performance in demanding electrical environments.
Technical Specifications
Short-Circuit Breaking Capacity
6 kA
Icu/Ics
- Rated Voltage
- 250 V
- Rated Current
- 63 A
- Compliance Standards
- IEC60947-2EN60947-2
Installation & Design
Key Features
- Contact position indicator
- Transparent cover for labeling
- Bilateral busbar wiring capability
- Suitable for communications and PV systems
- Maximum Connecting Ability
- 25 mm²
- Wiring Torque
- 3 N*m
