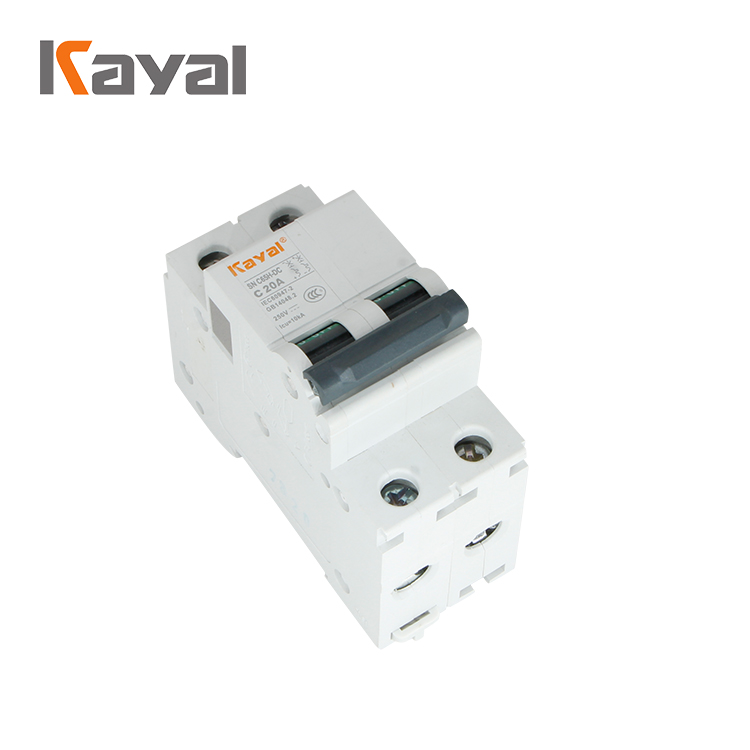

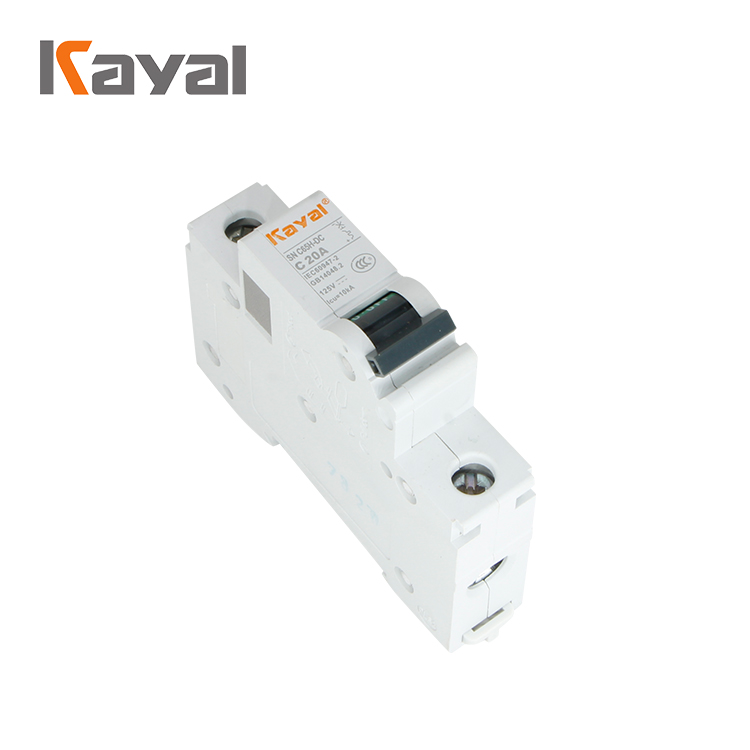

DC Miniature Circuit Breaker 1-63A
This DC miniature circuit breaker is designed to protect against overload and short circuits in AC 50Hz/60Hz systems. It can also be used for non-frequent on-and-off switch operations under normal circumstances.
Technical Specifications
Product Overview
High-Performance DC Protection

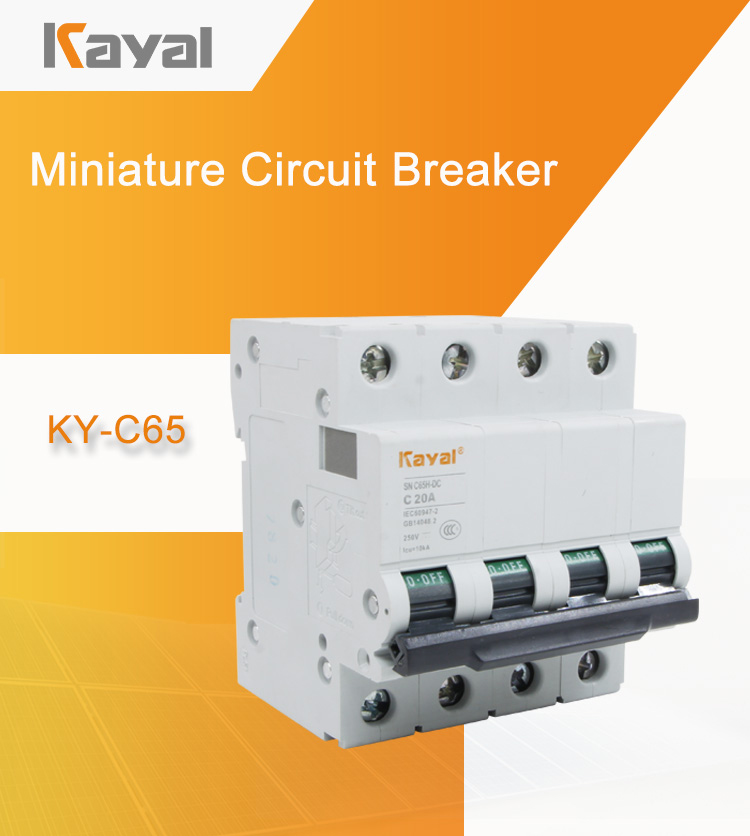

The C65 DC miniature circuit breaker is engineered for robust protection against overloads and short circuits in demanding electrical environments. Compliant with international IEC/EN standards, it features a high breaking capacity of 10,000A and a versatile design suitable for both power distribution and non-frequent switching operations. Its compact form factor and advanced safety features make it an ideal choice for photovoltaic systems, telecommunications, and industrial automation.
Key Performance Metrics
Core Performance
10,000 A
Breaking Capacity
63 A
Max Rated Current
250 V
Max DC Voltage
Technical Specifications
Protection Class
IP20
- Rated Current Range
- 1A to 63A
- Poles Available
- 1P2P3P4P
- Tripping Curve
- C Curve
Installation & Wiring

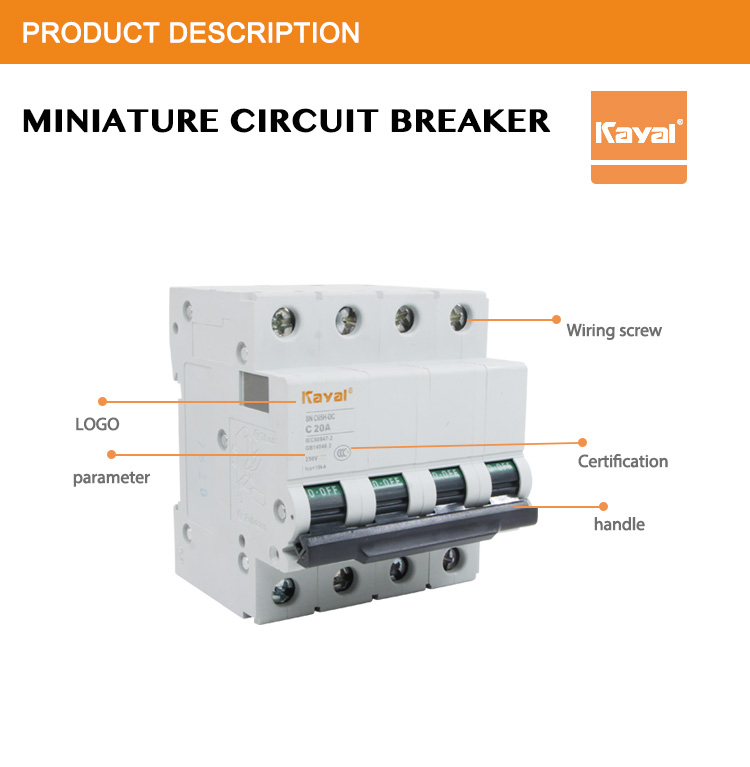

Wiring Capabilities
- Bilateral busbar wiring capabilities
- Double wire disconnect
- Secure wiring screws
- Maximum Connecting Ability
- 25 mm2
- Wiring Torque
- 3 N*m
Compliance & Standards
- Regulatory Standards
- IEC/EN60898-1IEC60947-2GB14048.2
Application Scope
Recommended Applications
- Photovoltaic (PV) Systems
- Telecommunications Rooms
- Data Centers
- Industrial Automation Control
- Medical Equipment Distribution
- Elevator Control Systems
Design Features
- Safety Indicators
- Yes
