Technical Specifications
Product Overview
Designed for Solar Energy Systems

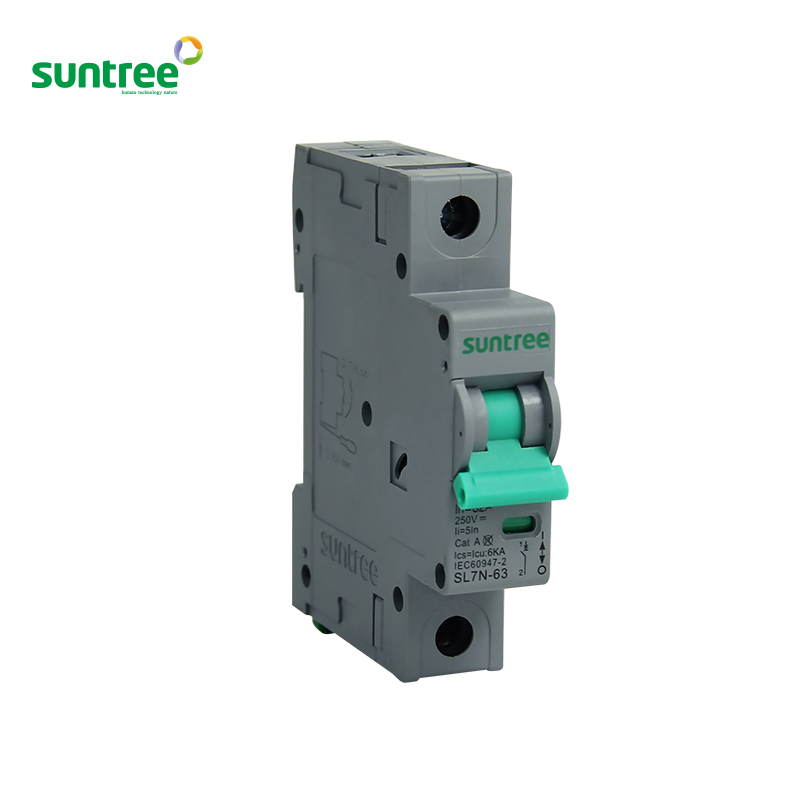

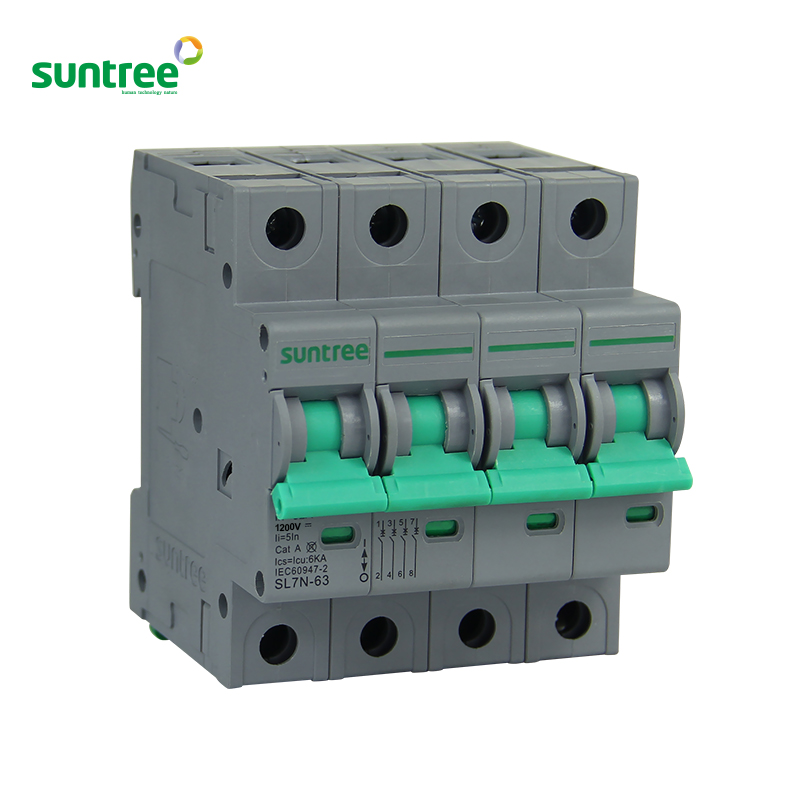

This DC Miniature Circuit Breaker is specifically engineered for direct current protection in solar photovoltaic systems. It provides essential over-current and short-circuit protection for DC plants up to 1200V. Featuring a non-polarity design, it simplifies installation for solar cables while ensuring safety and reliability in on-grid solar applications.
Technical Specifications
- Rated Voltage
- 1200 V
- Rated Current Range
- 6-63A
- Short-Circuit Breaking Capacity (Ics=Icu)
- 6 kA
- Trip Current
- 5In
- Device Category
- Category A
Compliance & Certification
Certifications
CECBTUV
- Standards Compliance
- IEC60947-2
Key Metrics
Performance Highlights
1,200 V
Max Voltage
6 kA
Breaking Capacity
