DC Contactor
This DC contactor is an electrical switching device for controlling DC power circuits. It is suitable for various industrial applications requiring reliable DC power switching.
Technical Specifications
Product Overview

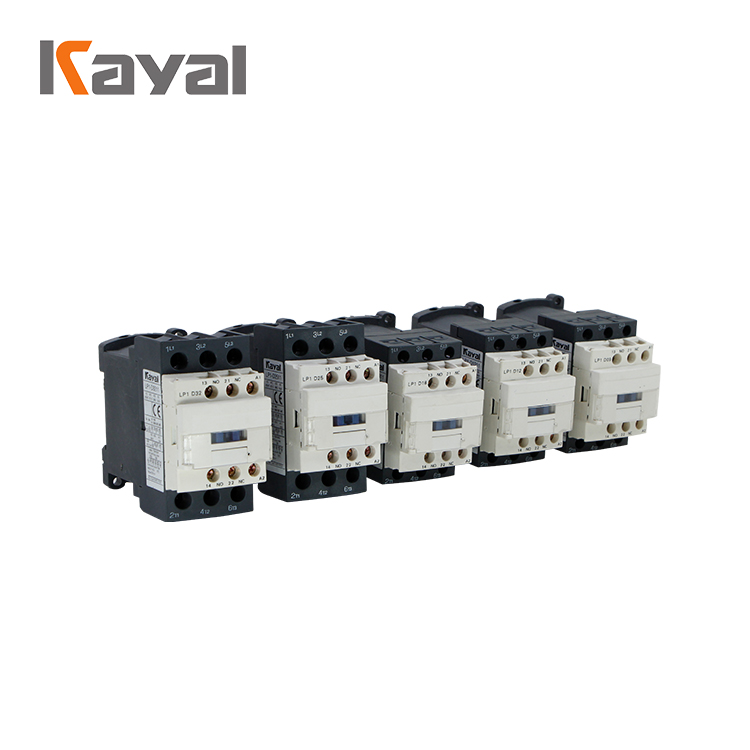

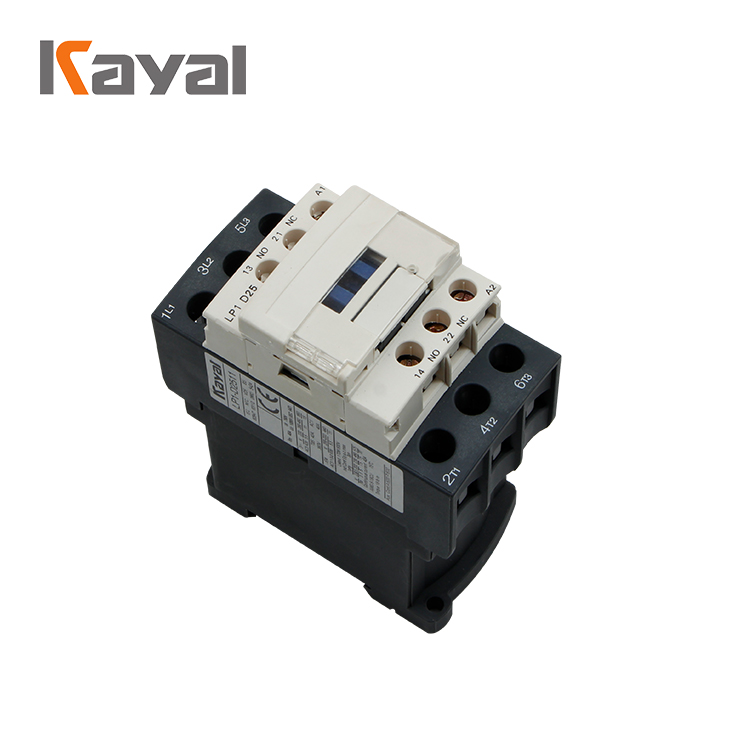

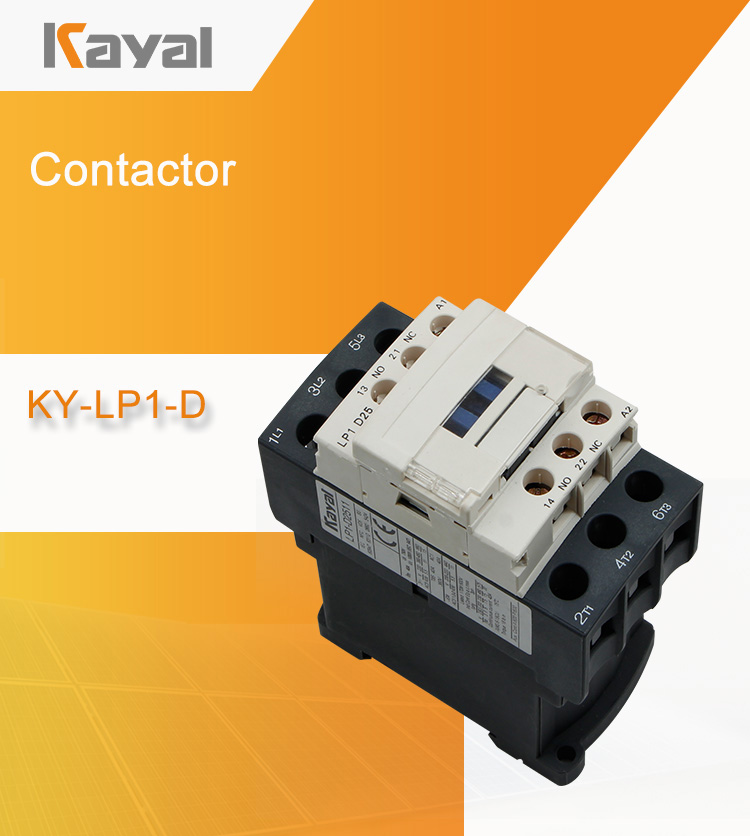

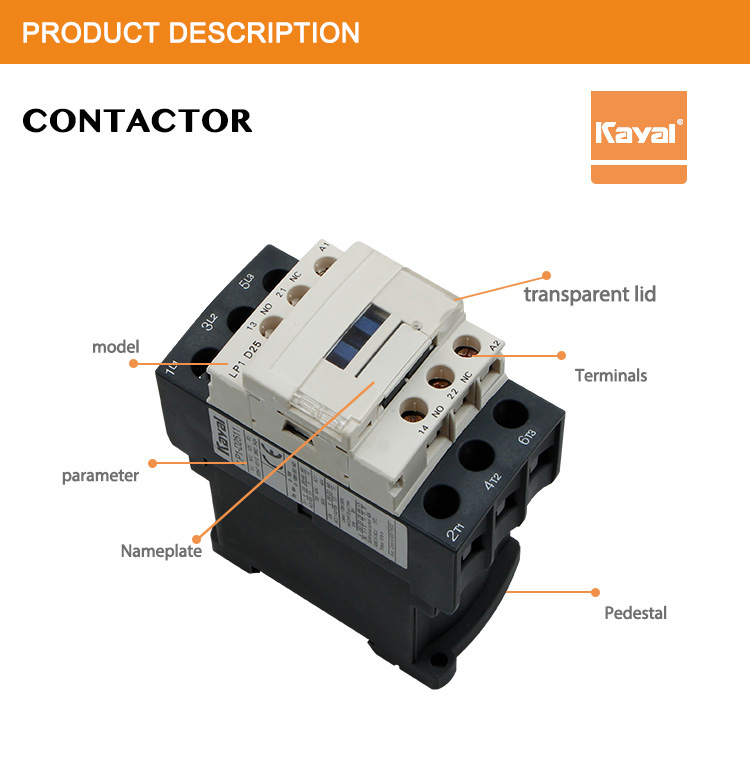

LP1-D Series DC Contactor
The LP1-D series DC contactor is a robust and reliable electrical switching device engineered for efficient control of DC power circuits. Designed for industrial environments, it offers excellent material quality and durability, ensuring long-term performance in demanding applications. With integrated overload protection and double wire disconnect capability, this contactor prioritizes safety, ease of installation, and operational reliability.
Technical Specifications
Performance Ratings
| Model | Rated Current (AC-3) | Rated Heat Current (Ith) |
|---|---|---|
| LP1-D09 | 9 | 20 |
| LP1-D12 | 12 | 20 |
| LP1-D18 | 18 | 32 |
| LP1-D25 | 25 | 40 |
| LP1-D32 | 32 | 50 |
| LP1-D40 | 40 | 60 |
| LP1-D50 | 50 | 80 |
| LP1-D65 | 65 | 80 |
| LP1-D80 | 80 | 125 |
| LP1-D95 | 95 | 125 |
Voltage Ratings
660 V
Rated Insulation Voltage (Ui)
380 V
Rated Working Voltage (Ue) Min
660 V
Rated Working Voltage (Ue) Max
Features & Compliance
Certifications
CE Certified
- Common Applications
- Motor ControlPower SuppliesBattery SystemsLighting SystemsIndustrial AutomationMedical Equipment
