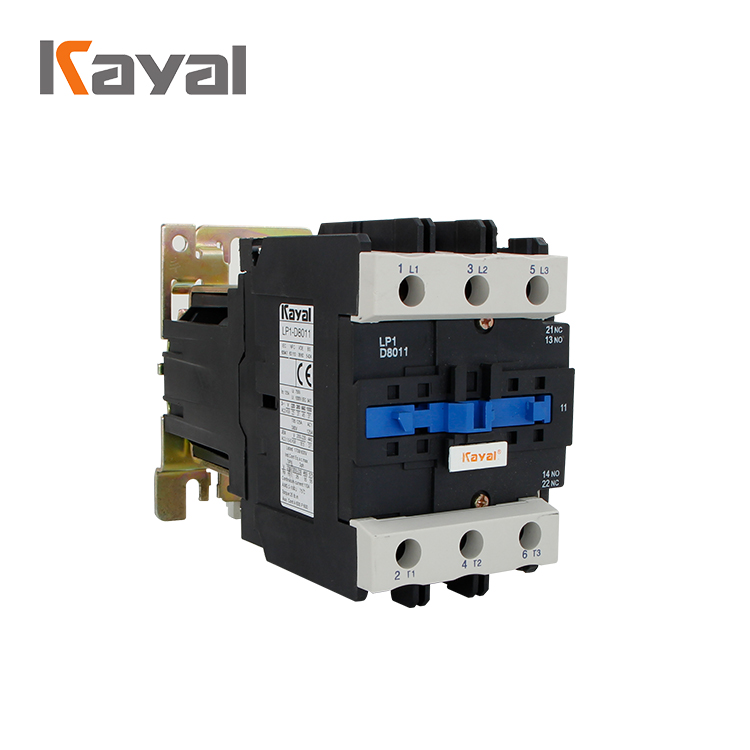

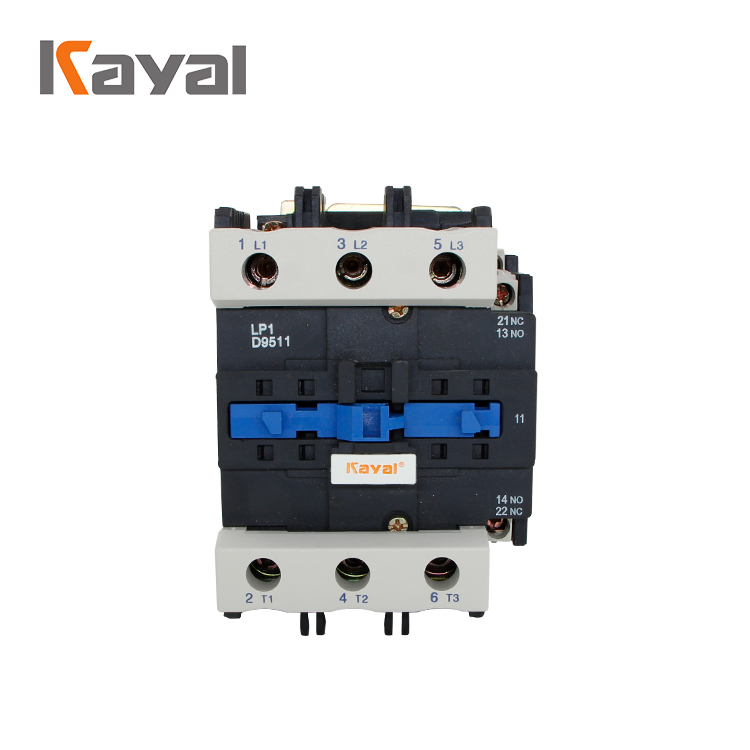

DC Contactor

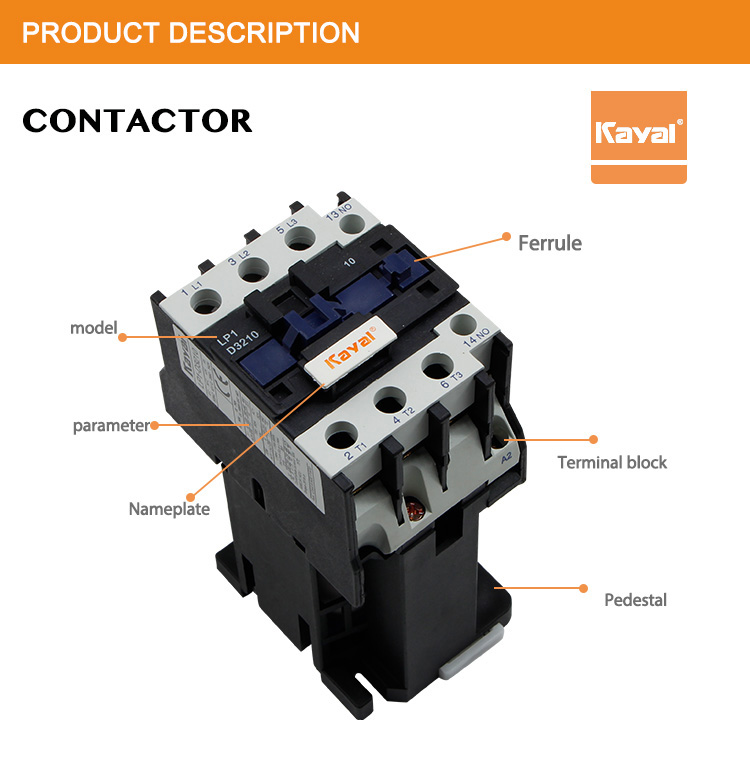

This DC contactor is a reliable electrical switching device designed for various industrial applications. It features clearly labeled terminals for easy wiring and supports multiple auxiliary contacts for flexible control and monitoring.
Technical Specifications
Product Overview

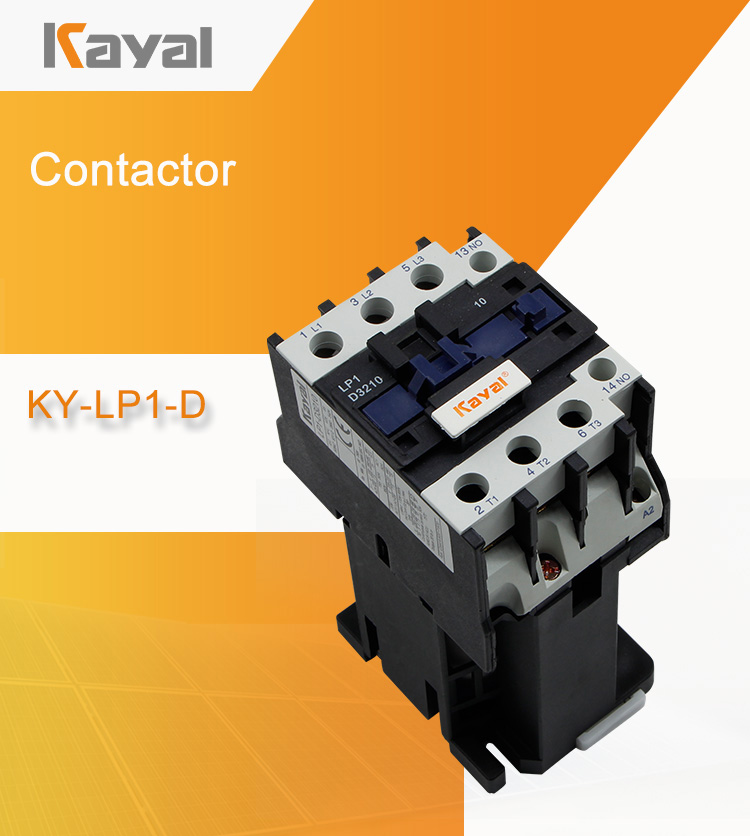

LP1-D Series DC Contactor
The LP1-D series DC contactor is a robust and reliable electrical switching device engineered for industrial automation and power distribution applications. Designed with a compact footprint, it offers high segmentation capabilities and double-wire disconnect functionality for enhanced safety and operational efficiency. These contactors are ideal for controlling DC loads in environments ranging from telecommunications and computer centers to industrial control rooms and medical equipment distribution boxes.
Technical Specifications
Performance Data
| Model | Rated Current (IeA) | Heat Current (Ith) |
|---|---|---|
| LP1-D09 | 9 | 20 |
| LP1-D12 | 12 | 20 |
| LP1-D18 | 18 | 32 |
| LP1-D25 | 25 | 40 |
| LP1-D32 | 32 | 50 |
| LP1-D40 | 40 | 60 |
| LP1-D50 | 50 | 80 |
| LP1-D65 | 65 | 80 |
| LP1-D80 | 80 | 125 |
| LP1-D95 | 95 | 125 |
Electrical Ratings
660 V
Rated Insulation Voltage (Ui)
380 V
Rated Working Voltage (Ue)
Product Features
Common Applications
- Computer Centers
- Telecommunications Rooms
- Elevator Control Systems
- Industrial Automatic Control
- Hospital Operating Rooms
- Fire Control Centers
- Key Features
- Compact DesignOverload ProtectionHigh SegmentationDouble Wire DisconnectIndustrial Grade
