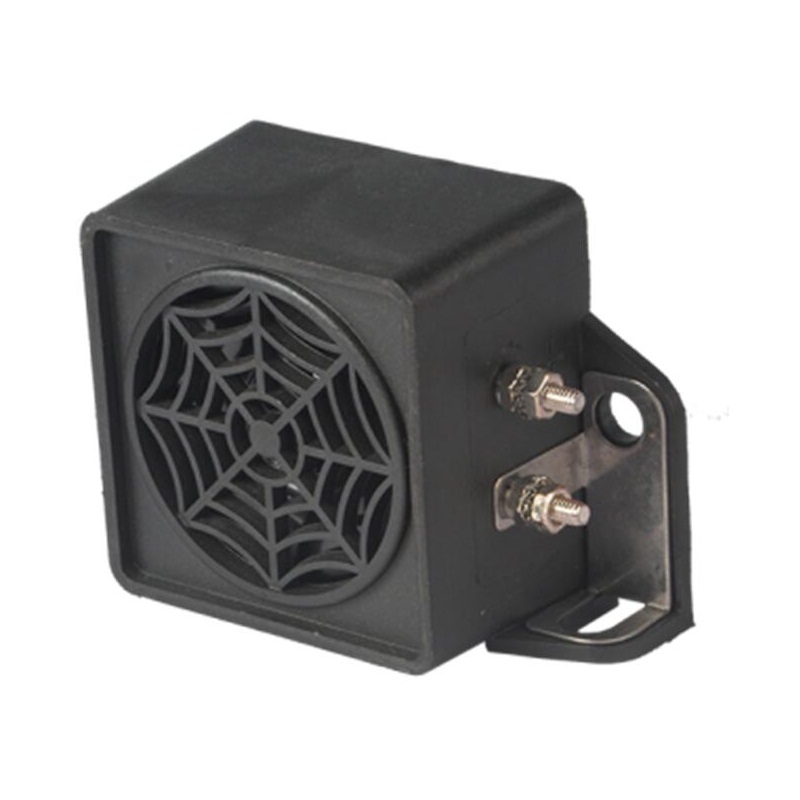

DC 12-80V 107 dB Vehicle Backup Alarm
This DC 12-80V vehicle backup alarm provides a clear audible warning with a 107 dB output. It is designed to enhance safety for vehicles like cars and forklifts when reversing.
Technical Specifications
Overview
High-Performance Vehicle Backup Alarm

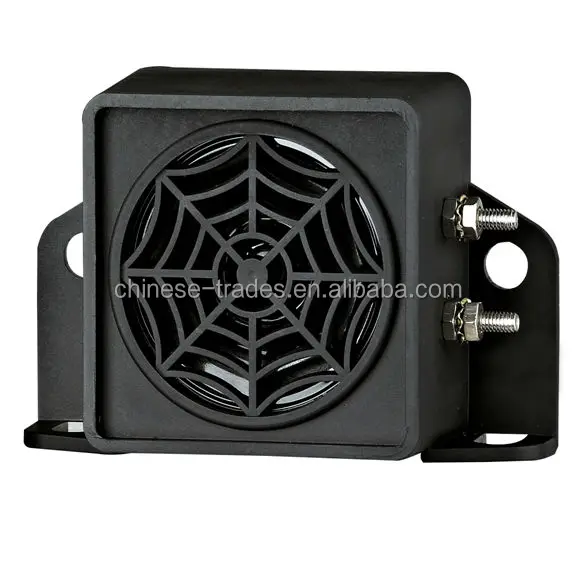

This versatile backup alarm is engineered for safety in demanding industrial and automotive environments, including forklifts and heavy machinery. It features a wide multi-voltage operating range of 12-80V DC and delivers a powerful 107 dB warning signal to ensure clear audibility. The unit is built with an epoxy-encapsulated housing, making it fully weather-proof and pressure-washable for long-term reliability in extreme temperatures.
Technical Specifications
Connection Options
- Wire lead
- Stud connection
- Operating Voltage
- 12-80V DC
- Sound Level
- 107 dB
- Operating Temperature
- -30°C to 77°C
- Protection Features
- Weather-proofPressure washableReverse polarity protectedEpoxy encapsulated
Performance Data
Model Specifications
| Model | Voltage (V) | Sound (dB) | Current (A) |
|---|---|---|---|
| TES121 | 12-36 | 112 | 1.2 |
| TES121 | 12-80 | 107 | 0.8 |
Compliance & Warranty
Certifications
CE Approved
- Warranty
- 2 years
