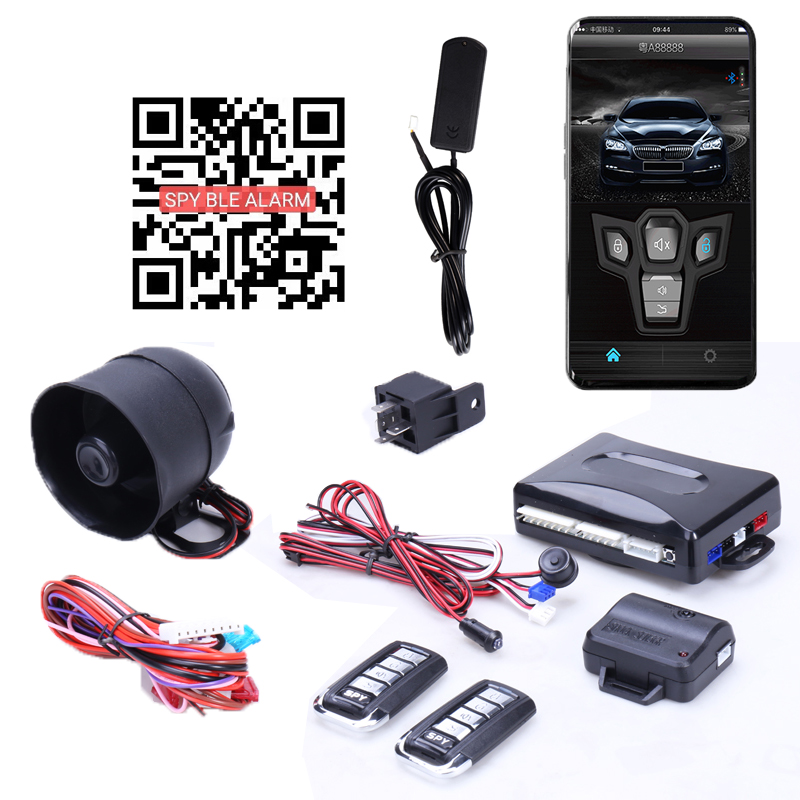

Bluetooth Smartphone-Controlled Car Alarm System
This Bluetooth car alarm system enhances vehicle security and convenience. It features smartphone app control, remote operation, and various alarm triggers for comprehensive protection.
Technical Specifications
Overview
Smart Vehicle Security
This advanced one-way car alarm system integrates modern convenience with robust vehicle security. By utilizing Bluetooth connectivity, it allows drivers to manage their vehicle's locking, unlocking, and trunk release directly from a smartphone app. The system supports multi-user authorization and automatic proximity-based operations, making it an ideal upgrade for modern vehicle security.
Key Features
Smart Functionalities
- Automatic arm/disarm
- Smartphone shaking lock/unlock
- Revisable authorization code for shared access
- Trunk release
- Bluetooth connectivity
- Control Methods
- Smartphone AppPhysical TransmitterShaking Gesture Control
Technical Specifications
Electrical Requirements
9 V
Min Voltage
15 V
Max Voltage
20 mA
Max Static Current
Component Current Draw
| Component | Current |
|---|---|
| Central locking system | 15A |
| Siren | 10A |
| Flash lights | 10A |
| Trunk | 10A |
| Window rolling up signal | -250mA |
| Flameout signal | -250mA |
Performance Metrics
- Bluetooth control range: >15m
- Working frequency: 433.92MHZ ± 400KHZ
- Operating temperature: -40°C to +85°C
Compatibility
App Compatibility
AndroidiOS
