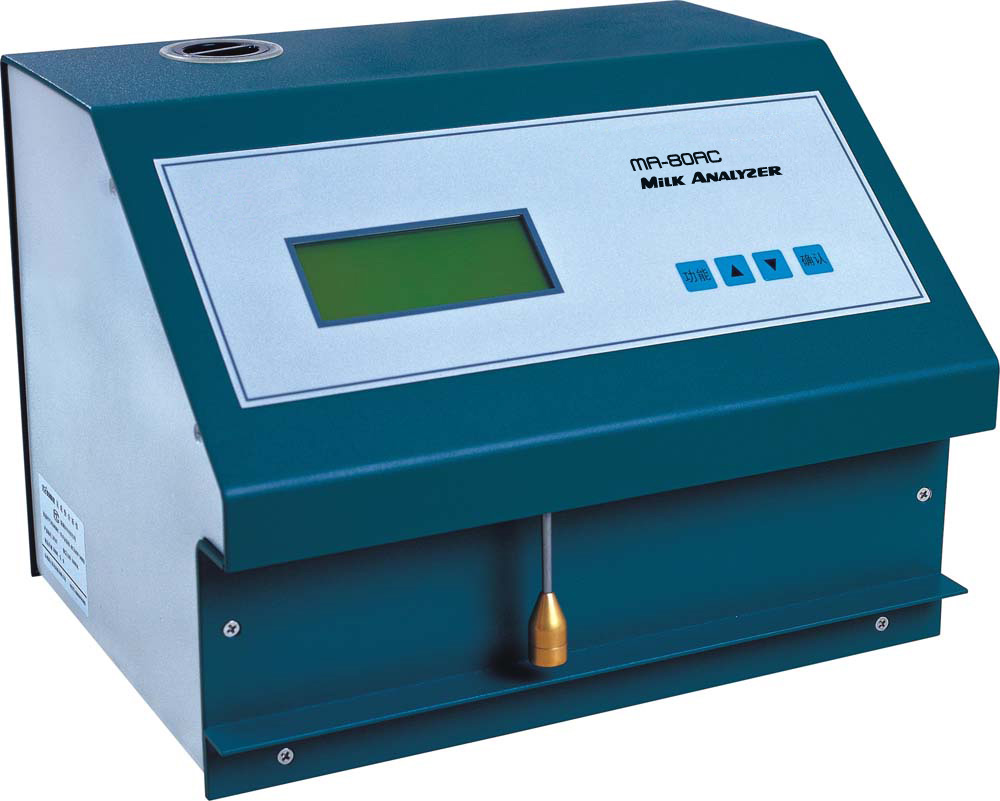

Dairy Milk Composition Analyzer
This analyzer is designed for rapid and accurate analysis of milk composition. It measures fat, protein, lactose, solids-not-fat (SNF), and total solids (TS).
Technical Specifications
Overview
Professional Milk Composition Analysis
This series of milk analyzers provides rapid and accurate composition testing for dairy farming and processing enterprises. Designed with all-metal, low-temperature resistant exteriors, these units are suitable for both field and laboratory environments, including cold climates. With advanced sensor technology and optional integrated printing, they ensure reliable quality control for critical parameters like fat, protein, and acidity.
Key Features
Key Advantages
- All-metal exterior design with high anti-interference performance
- Low-temperature resistant materials for cold climate operation
- 12V car power supply compatibility for field use
- Dedicated computer management software included
- Optional European quality printer available
Performance Metrics
Detection Speeds
180 s
MA-20AC Speed
90 s
MA-40AC/BC Speed
45 s
MA-80AC/BC Speed
30 s
MA-120BC Speed
Technical Specifications
Measurement Ranges & Accuracy
| Parameter | Range | Accuracy |
|---|---|---|
| Fat | 0.50 - 9.00 % | ± 0.10% |
| Non-fat milk solids | 6.00 - 12.00 % | ± 0.15% |
| Protein | 2.00 - 5.30 % | ± 0.10% |
| pH Value | 0.00 - 14.00 | ± 0.02 |
| Conductivity | 2.00 - 20.00 mS/cm | ± 5% (18℃) |
| Lactose | 0.01 - 7.00 % | ± 0.15% |
| Density | 1.0260 - 1.0330 g/cm³ | ± 0.0005 g/cm³ |
| Freezing Point | -0.700 - -0.200 ℃ | ± 0.005 ℃ |
| Ash | 0.05 - 3.00 % | ± 0.01% |
Compatibility
- Series Availability
- AC SeriesBC Series
