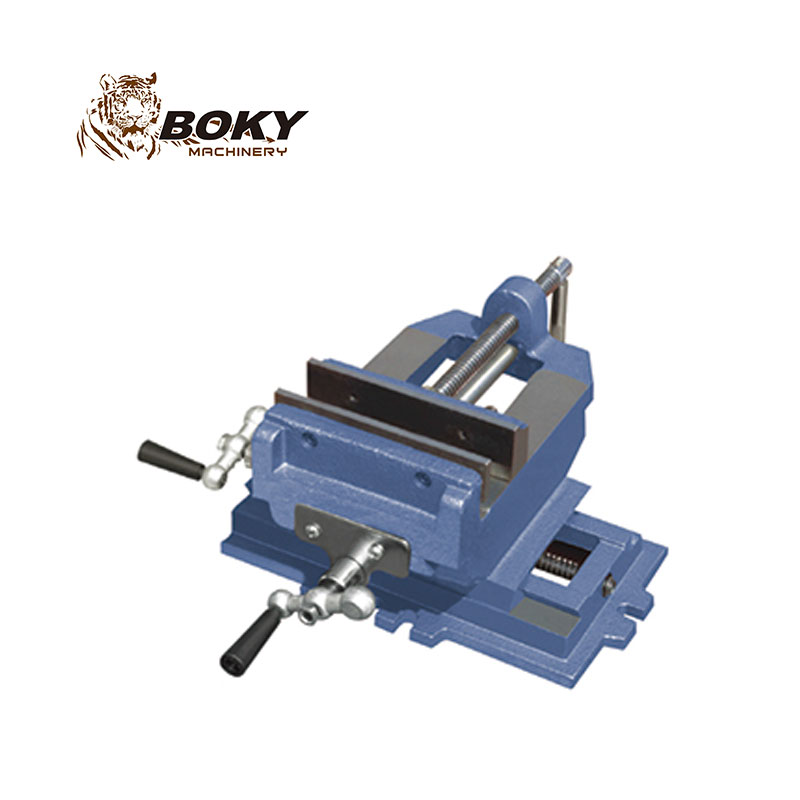

Cross Slide Vise
This cross slide vise is a precision tool for secure and accurate workpiece holding in machining and fabrication. It features a robust construction and a sliding mechanism for precise positioning, enhancing versatility for complex machining tasks.
Technical Specifications
Overview
Precision Cross Slide Vise
This precision cross slide vise is engineered for secure and accurate workpiece holding in demanding machining and fabrication environments. Featuring a robust construction from high-grade materials, it provides exceptional stability and durability during operation. The dual-axis sliding mechanism allows for precise positioning, while hardened and ground jaws ensure a firm, reliable grip for milling and drilling tasks.
- Key Features
- Hardened JawsDual-Axis SlidingHigh-Grade ConstructionPrecision MachiningSmooth Lead Screws
Technical Specifications
Size and Capacity Specifications
| Size | Jaw Width | Jaw Opening | Net Weight | Packing Size |
|---|---|---|---|---|
| 3" | 75mm | 55mm | 5.5kgs | 250x250x140mm |
| 4" | 100mm | 75mm | 7.5kgs | 270x270x155mm |
| 5" | 125mm | 95mm | 9.5kgs | 290x290x155mm |
| 6" | 150mm | 115mm | 14.5kgs | 320x320x175mm |
Available Sizes
- 3 inch
- 4 inch
- 5 inch
- 6 inch
