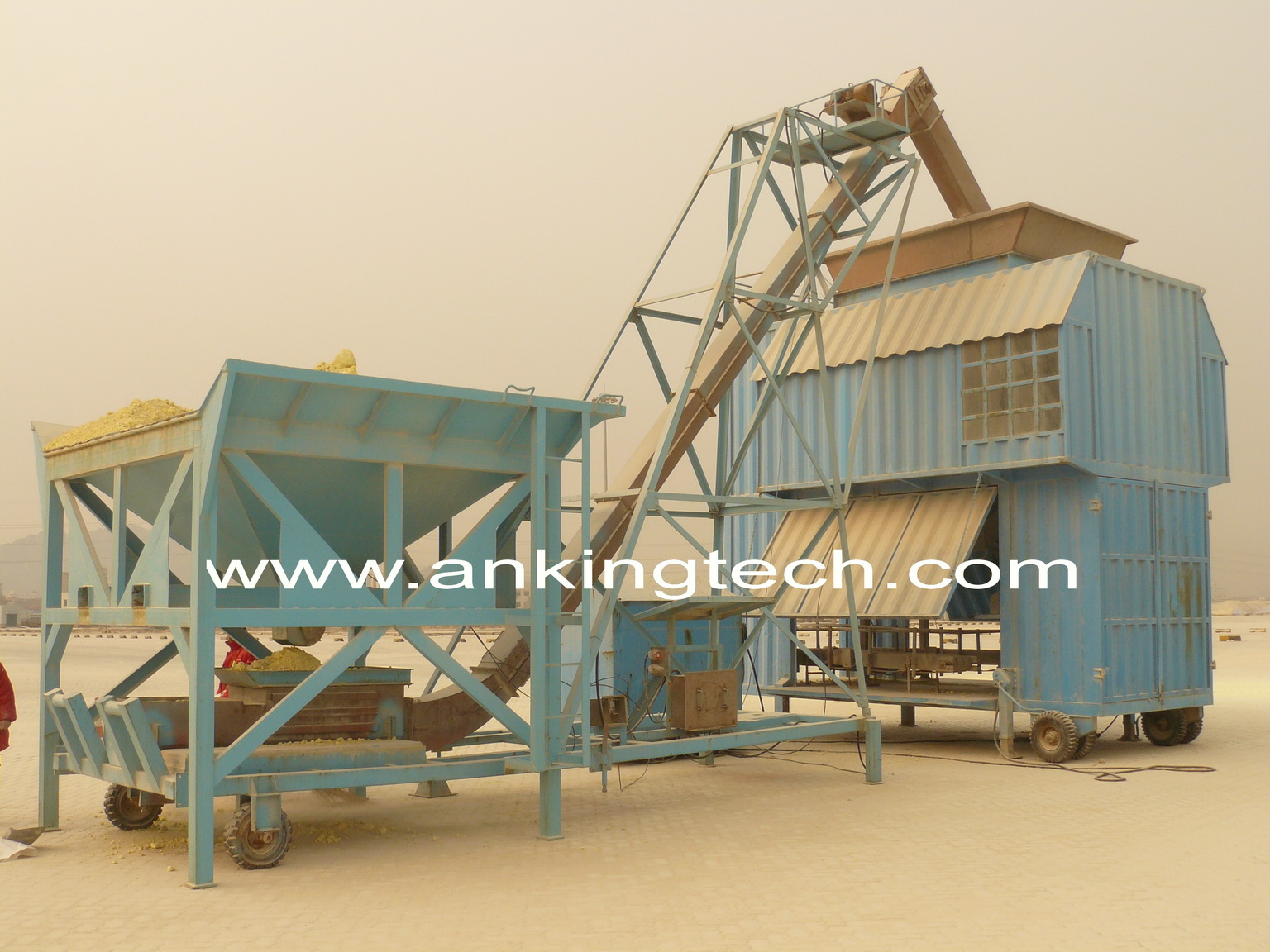

Containerized Mobile Weighing and Bagging Machine
This containerized mobile weighing and bagging plant is designed for bulk cargo bagging operations at quaysides, warehouses, and storage yards. It adopts advanced industrial control and full electronic systems.
Technical Specifications
Overview
Containerized Mobile Weighing & Bagging Solution
This mobile weighing and bagging plant is engineered for high-efficiency bulk cargo operations at quaysides, warehouses, and storage yards. Housed within two standard 20-foot international shipping containers, it offers exceptional mobility and rapid deployment capabilities. The system features dual independent weighing lines, utilizing advanced electronic control technology to ensure high weighing accuracy and fast processing speeds for solid granular materials.
Performance Metrics
Throughput & Capacity
2,000 bags/h
Max Bags per Hour
100 tons/h
Max Throughput
Technical Specifications
Weighing Accuracy
| Mode | Tolerance |
|---|---|
| Static | ±0.1% |
| Dynamic | ±0.2% |
- Compatible Materials
- FertilizerGrainSolid Granular Bulk
- Granular Size Range
- 15 mm
- Bulk Density
- 0.75 – 1.2 Ton/m³
Operational Parameters
Supported Bag Types
- Jute
- Cotton
- Polypropylene-woven
- Paper open mouth bag
- Bag Weight Range
- 15 – 100 kg
- Operating Temperature
- 0 to +45°C
Power & Utilities
- Electrical Supply
- 3Ph, 380V±15%, 50Hz±5%
- Control Voltage
- 1Ph, 220V±15%, 50Hz±5%
- Required Air Pressure
- 0.6 MPa
