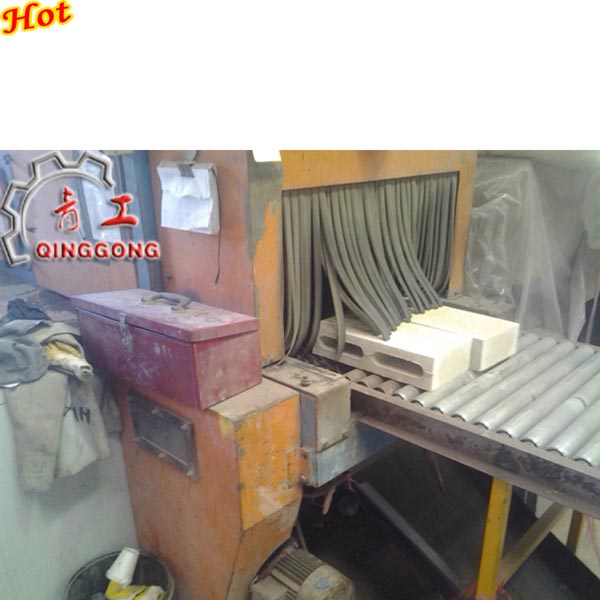

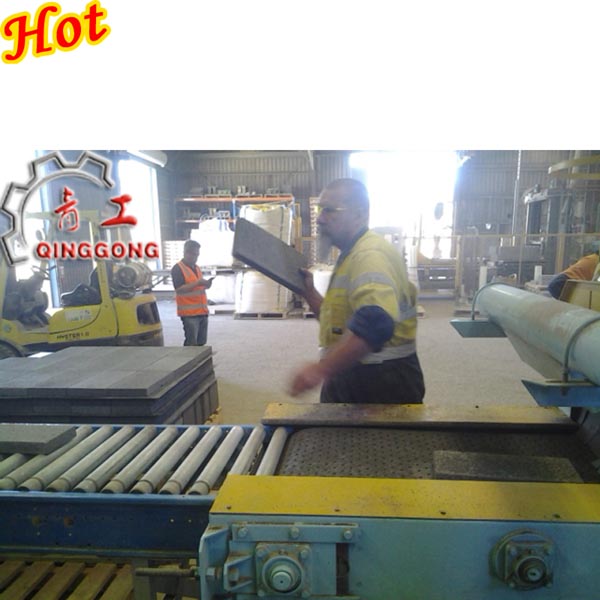

Concrete Block Shot Blasting Machine
The Concrete Block Shot Blasting Machine is engineered for surface roughening of concrete blocks, granite, and marble. Abrasive media is propelled by a rapidly rotating blast wheel to etch the surface, creating a unique three-dimensional texture.
Technical Specifications
Overview
High-Efficiency Surface Treatment
This industrial shot blasting machine is engineered for the precise surface finishing of concrete stones, plates, and kerbstones. By effectively removing cement layers, it exposes aggregates like granite chips to create a high-quality, aesthetically pleasing finish that adds significant value to construction materials. The system features a flexible design with adjustable blast wheels and integrated control systems, allowing for uniform treatment of both horizontal and vertical surfaces on delicate stone products.
Key Features
Operational Advantages
- Uniform surface results via adjustable blast wheels
- Stepless speed control for consistent finishes
- Electro-pneumatic dosage regulation
- Long service life with hardened tool steel wear parts
- Integrated blow-off station to remove residual shot
- Siemens Touch panel interface for easy operation
Technical Specifications
Model Comparison
| Specification | QGSC-600 | QGSC-800 | QGSC-1000 |
|---|---|---|---|
| Effective Cleaning (W*H mm) | 600*200 | 800*200 | 1,000*200 |
| Roller Speed (m/min) | 0.5~6 | 0.5~6 | 0.5~6 |
| Blast Wheel Power (kw) | 2*11 | 2*11 | 2*11 |
| Dust Collector (m³/h) | 7,000 | 10,000 | 10,000 |
| Total Power (kw) | 43.4 | 46.9 | 47.7 |
Conveyor Speed Range
Capabilities
- Workpiece Width Capacity
- 600 mm to 2000 mm
- Operation Modes
- Indexing OperationContinuous Operation
