Compact Iris Module with Integrated IR Functionality
This compact module provides precise aperture control. It also features integrated infrared (IR) functionality.
Technical Specifications
Overview
Compact Iris Module with Integrated IR
The VIRIS145 is a high-precision compact iris module designed for advanced optical and imaging applications. It features integrated IR functionality and precise aperture control, making it suitable for security systems and specialized optical equipment. With a robust design and reliable mechanical actuation, this module offers consistent performance in demanding environments.
Iris Specifications
Iris Voltage Range
3.3 V
Start Voltage
0.5 V
Close Voltage
Iris Resistance
| Type | Resistance |
|---|---|
| Drive | 190Ω ±10% |
| Deboost | 500Ω ±10% |
- Maximum Effective Aperture
- 10.5 mm
IR & Sensor Specs
IR Voltage
3.5 V
Nominal IR Voltage
4 V
Max IR Voltage
- IR Resistance
- 40Ω ±7%
- Hall Voltage Range
- 55mV - 135mV
- S Parameter
- -35% to 35%
Electrical Ratings
- Maximum Output Voltage
- 6 V

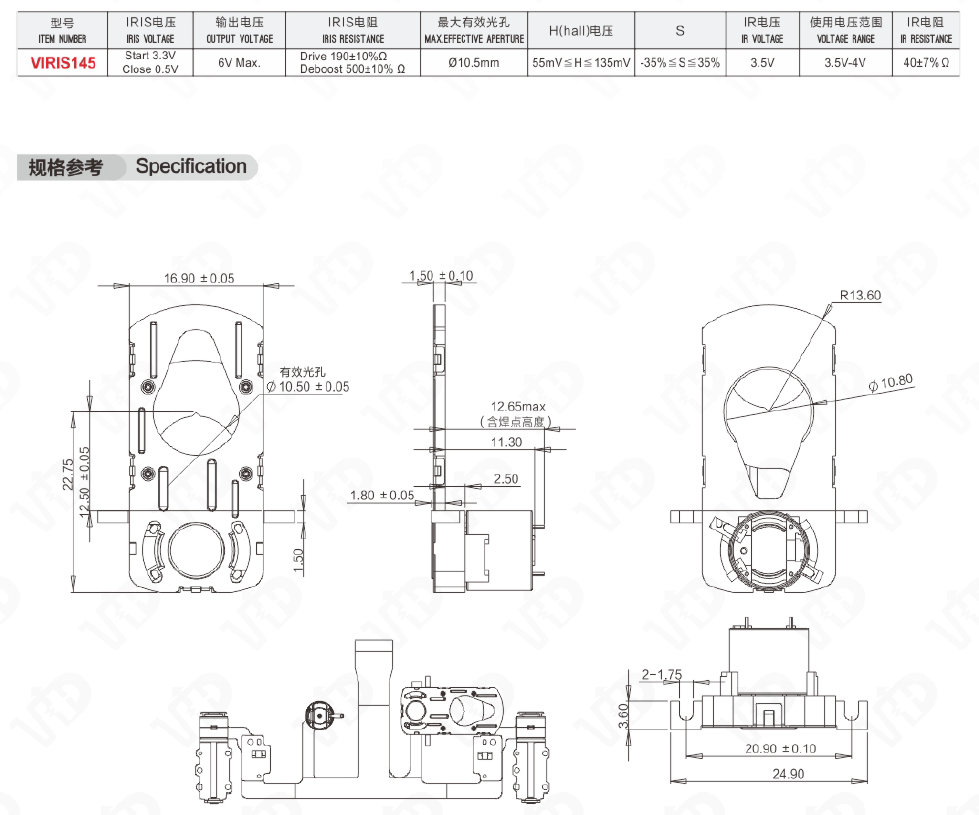

Dimensions
Key Dimensions
- 16.90 ±0.05mm
- 22.75mm
- 12.50 ±0.05mm
- Effective Aperture: Ø10.50 ±0.05mm
