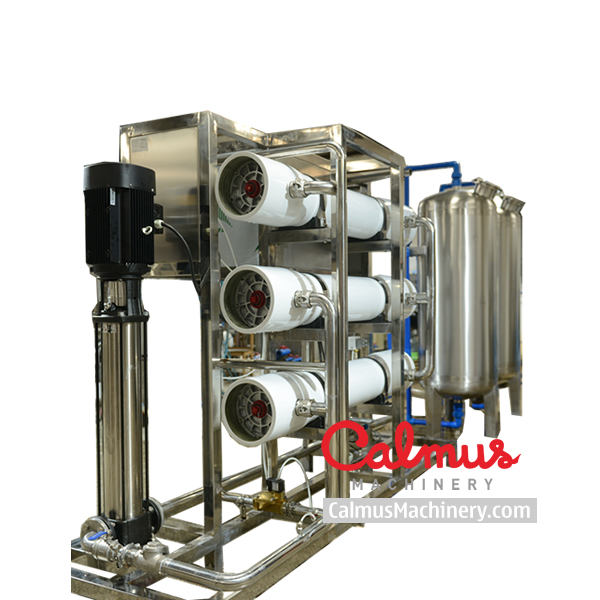

Commercial Reverse Osmosis Water Purification System
This commercial RO water purification system filters raw water to meet drinking water standards. It is a key component for establishing a bottling plant.
Technical Specifications
Overview
Professional Water Purification
This commercial reverse osmosis system is engineered for industrial-scale water purification, specifically tailored for bottling plant applications. Utilizing advanced membrane technology and PLC-controlled automation, the system ensures consistent water quality while maintaining high recovery rates. Each unit is customized based on specific raw water analysis to guarantee optimal performance and reliability in demanding production environments.
Performance Metrics
Purification Capacity
3,000 L/H
Capacity
- Recovery Rate
- 85 %
- Salt Rejection
- 98 %
Technical Specifications
- Operating Pressure
- 225 psi
- Max Water Pressure
- 261 psi
- Power Supply
- 3 phases, customized
- Total Power
- 7 KW
Feed Water Requirements
- Max Feed Water Temperature
- 35 ℃
- Feed pH Range
- 6.5-7.5
- Max Feed Silt Density Index
- 5
System Features
Operational Modes
- Automatic (Running)
- Manual (Maintenance)
- Construction
- Stainless Steel
- Control System
- PLC controlled, fully-automatic
