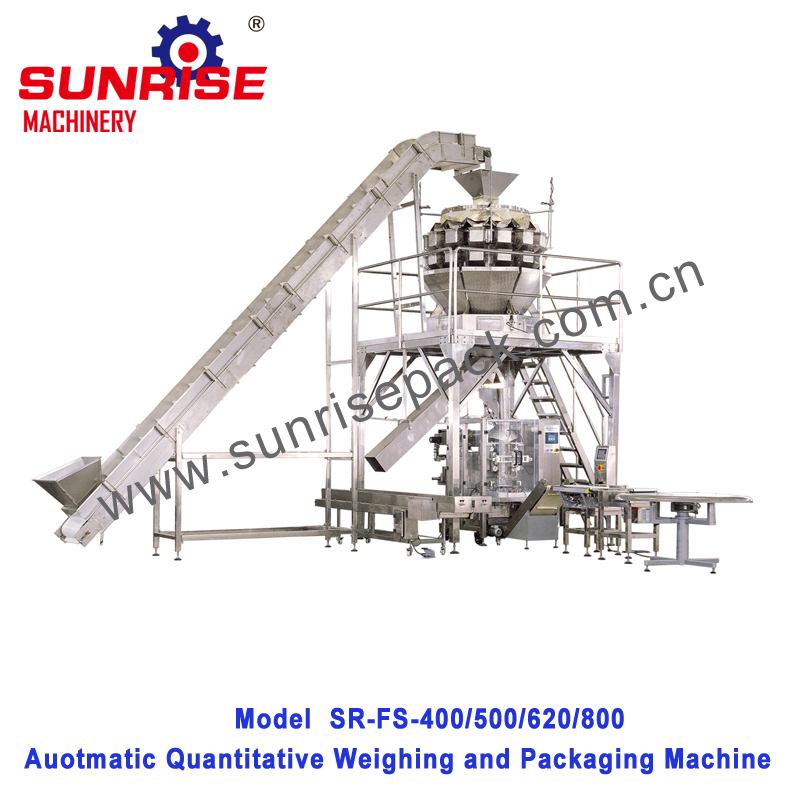

Combination Weigher Packaging Machine
This machine automates packaging processes, including feeding, measuring, filling, bag making, sealing, and cutting. It utilizes a PLC and computer control system with a color touch screen for convenient operation.
Technical Specifications
Overview
High-Efficiency Packaging Solution
This full-set packaging machinery automates the entire process from feeding and measuring to bag making, sealing, and cutting. It is designed for high-speed, precise weighing of diverse products including granules, slices, and irregular shapes. Featuring an intuitive PLC-based touch screen interface, this system ensures reliable performance and easy operation for various industrial applications.
- Suitable Products
- GranulesSlicesBarsIrregular ShapesFood ProductsPet FoodSmall Metal Parts
Machine Performance
Model Specifications
| Model | Film Width | Bag Width | Capacity |
|---|---|---|---|
| Type 500 | 180-500mm | 80-240mm | 15-60 bags/min |
| Type 620 | 220-600mm | 100-300mm | 15-60 bags/min |
| Type 800 | 340-800mm | 160-385mm | 10-30 bags/min |
Key System Features
- PLC+computer control system with color touch screen
- Protective nitrogen gas flushing available
- High-speed motion control system
- IP65 grade water-proof and dust-proof design
- Stainless steel construction
Weigher Specifications
Weigher Performance
70 bags/min
Max Speed
3,000 g
Max Weight
0.5 g
Avg Tolerance
Weigher Details
- 10-1000g single weighing range
- 1300ml hopper capacity
- Bi-row hopper without memory
- Step motor drive
- 99 product preset memory
Auxiliary Equipment
Z-Conveyor Performance
- Lifting height: 2.6m
- Lifting speed: 0-17m/min
- Lifting capacity: 5.5 cubic meters/hour
- Power: 550W
Finished Product Conveyor
- Feeding speed: 30m/min
- Dimensions: 2110x340x500mm
