Cold Shrinkable Cable Termination Kit (Indoor)
This cold shrink termination kit is suitable for indoor applications with polymeric cables up to 8.7/15(17.5)kV. The product is tested in accordance with IEC 60502-4 and can be used for copper or aluminum alloy conductors.
Technical Specifications
Overview
Cold Shrinkable Termination Kit
This cold shrinkable cable termination kit is engineered for reliable indoor electrical connections, supporting voltage ratings up to 8.7/15(17.5)kV. Designed for compatibility with PVC, PE, and XLPE polymeric cables, it accommodates both copper and aluminum alloy conductors. The system utilizes pre-expanded silicone rubber components that shrink tightly onto the cable, ensuring superior insulation, UV resistance, and hydrophobicity without the need for heat or specialized tools.
Technical Specifications
Compliance Standards
IEC 60502-4
- Voltage Rating
- 8.7/15(17.5) kV
- Compatible Cable Types
- PVCPEXLPE
- Conductor Compatibility
- CopperAluminium Alloy
Features
Key Installation Benefits
- No heat, torches, or special tools required
- Pre-expanded components on easy-to-remove spiral holdout
- Integrated geometric stress control
- Void-filling mastic reduces positioning errors
Material Performance
- High UV-resistance
- Excellent anti-tracking properties
- Superior hydrophobicity for long service life

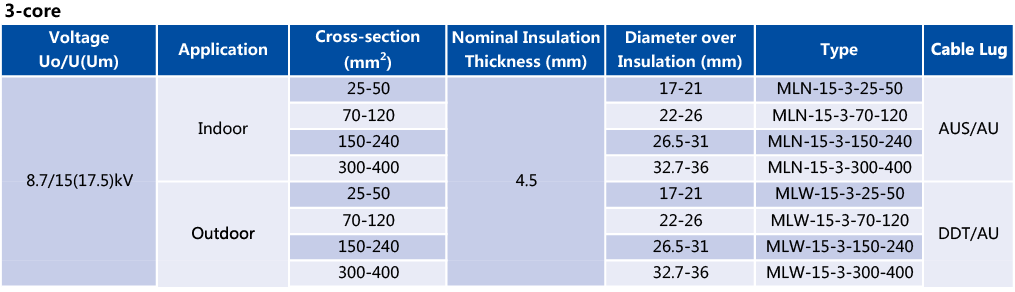

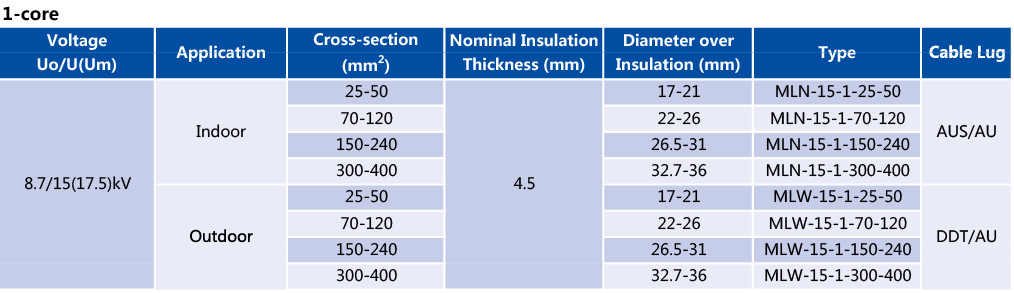

Sizing Data
Termination Dimensions & Sizing
| Cross-Section (mm²) | Diameter over Insulation (mm) | Insulation Thickness (mm) |
|---|---|---|
| 25-50 | 17-21 | 4.5 |
| 70-120 | 22-26 | 4.5 |
| 150-240 | 26.5-31 | 4.5 |
| 300-400 | 32.7-36 | 4.5 |
