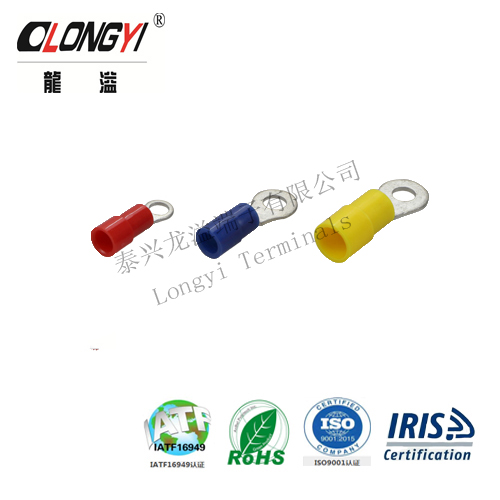

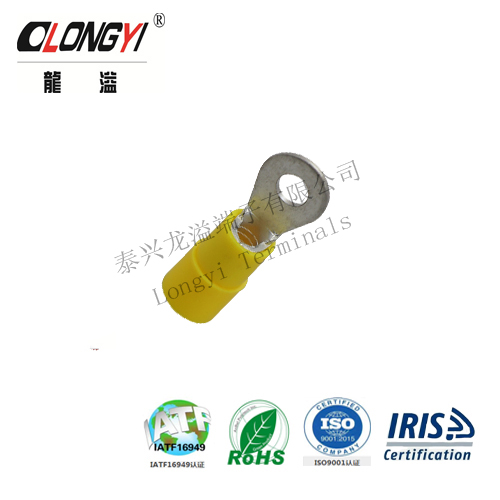

Nylon Insulated Ring Terminal
These ring terminals are insulated with nylon for secure wire connections. They connect copper conductors in power cables to electronic equipment with a working temperature range of -55oC-150oC.
Technical Specifications
Product Overview
High-Performance Nylon Insulated Ring Terminals
These ring insulated terminals are designed for secure and reliable connection of copper conductors in various electronic and power cable applications. Manufactured from 99.99% pure T2.3 copper tubing with a durable tin-plated surface, they ensure excellent electrical conductivity and corrosion resistance. The terminals feature robust PVC and nylon insulation, providing enhanced safety and protection against environmental factors across a wide operating temperature range of -55°C to 150°C.
Technical Specifications
- Material
- 99.99% Pure Copper (T2.3)
- Surface Finish
- Tin-plated
- Insulation Material
- PVCNylon
- Operating Temperature
- -55°C to 150°C
- Wire Cross-Section
- 1.25 - 8 mm²
Applications
Common Industries
- Electric Cabinets
- Transformers
- Wiring Harness Manufacture
- Railway & Communication
- Ship Industry
- Aircraft
- Photovoltaic (PV)
- Wind Power
Dimensions & Sizing
Standard Dimensions
| Item No | Wire Range (mm²) | Color |
|---|---|---|
| VF1.25 Series | 0.25-1.65 | Red |
| VF2 Series | 1.04-2.63 | Blue |
| VF3.5 Series | 2.63-4.60 | Yellow |
| VF5.5 Series | 4.60-6.64 | Yellow |
| VF8 Series | 6.64-10.52 | Red |
