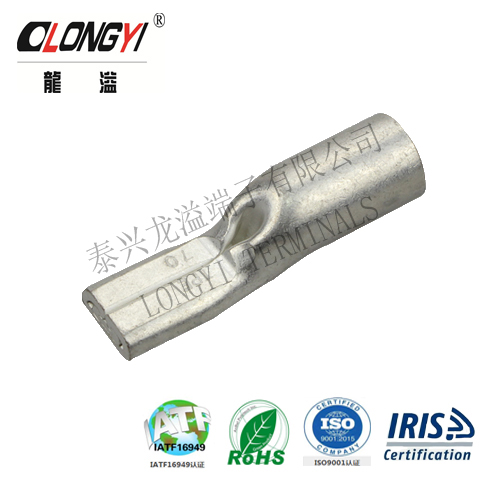

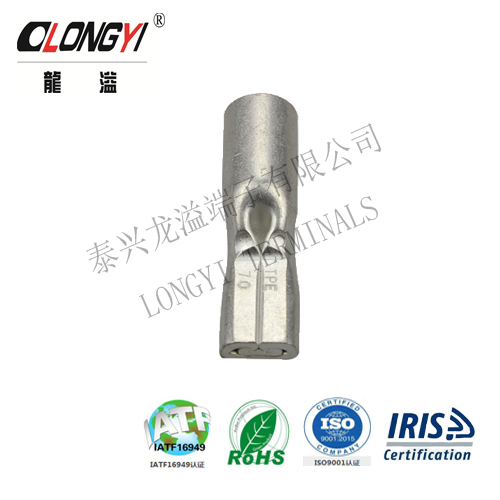

TPE Copper Cable Lug Bare Terminal Connector
TPE copper cable lugs are designed for connecting copper conductors in power cables to electronic equipment. These lugs are made from 99.99% pure copper tube T2, and feature a tin coating.
Technical Specifications
Product Overview
Professional Power Connection Solution
These TPE copper cable lugs are high-performance bare terminal connectors designed for secure copper conductor integration in electrical equipment. Crafted from 99.99% pure T2 copper tube and treated with a protective tin coating, they offer superior conductivity and corrosion resistance. They are built to withstand rigorous industrial environments with an operating temperature range of -55°C to 150°C.
Technical Specifications
Temperature Range
-55 °C
Min Temperature
150 °C
Max Temperature
- Material
- 99.99% pure T2 copper with tin coating
- Supported Conductor Section
- 50-240 mm²
Certifications & Compliance
- Standards Compliance
- ISO9001ROHSCEUL
Dimensions Table
Standard Lug Dimensions
| Item No | φE | OD | ID | D | B | L |
|---|---|---|---|---|---|---|
| TPE-50/8 | 8.5 | 12.6 | 9.8 | 15 | 22 | 50 |
| TPE-50/10 | 10.5 | 12.6 | 9.8 | 15 | 22 | 50 |
| TPE-70/8 | 8.5 | 14.7 | 11.5 | 15 | 24 | 55 |
| TPE-70/10 | 10.5 | 14.7 | 11.5 | 15 | 24 | 55 |
| TPE-95/8 | 8.5 | 16.9 | 13.5 | 15 | 27 | 60 |
| TPE-95/10 | 10.5 | 16.9 | 13.5 | 15 | 27 | 60 |
| TPE-120/8 | 8.5 | 19.9 | 15.6 | 21 | 31 | 65 |
| TPE-120/10 | 10.5 | 19.9 | 15.6 | 21 | 31 | 65 |
| TPE-150/10 | 10.5 | 20.9 | 16.5 | 21 | 33 | 72 |
| TPE-150/12 | 12.5 | 20.9 | 16.5 | 21 | 33 | 72 |
| TPE-185/10 | 10.5 | 23.7 | 18.8 | 26 | 35 | 75 |
| TPE-185/12 | 12.5 | 23.7 | 18.8 | 26 | 35 | 75 |
| TPE-240/10 | 10.5 | 26.2 | 21.2 | 26 | 42 | 85 |
| TPE-240/12 | 12.5 | 26.2 | 21.2 | 26 | 42 | 85 |
