Copper Cable Lug - DIN Standard
These copper cable lugs facilitate the connection of copper cables to electrical equipment in medium voltage environments. They are manufactured according to DIN standards with clear markings to ensure proper crimping.
Technical Specifications
Overview
High-Conductivity Copper Cable Lugs
These DIN 46235 standard copper cable lugs are designed for reliable connections between copper cables and electrical equipment in medium voltage applications. Manufactured from high-purity copper (Cu ≥ 99.9%) and finished with tin plating, they offer superior electrical conductivity and excellent corrosion resistance. Each lug features clear barrel markings to ensure precise crimping alignment when used with standard DIN dies, making them ideal for professional power distribution and transmission projects.
Material & Build
Material Composition
99.9 %
Copper Purity
Surface Treatment
Tin Plated
Standards & Compliance
- Technical Standard
- DIN 46235 (Germany Norm)
Application
- Voltage Suitability
- Medium Voltage
- Primary Usage
- Connection of copper cable with copper ends of electrical equipment
Technical Specifications
Compatible Crimping Dies
- DT6
- DT8
- DT10
- DT12
- DT14
- DT16
- DT18
- DT20
- DT22
- Conductor Size Range
- 6mm²10mm²16mm²25mm²35mm²50mm²70mm²95mm²120mm²150mm²
- Available Stud Sizes
- M5M6M8M10M12M14M16
Product Features
Key Features
- Clear markings on barrel for crimping location
- Compatible with DIN standard crimping dies
- High purity electrolytic copper construction
- Corrosion-resistant tin finish

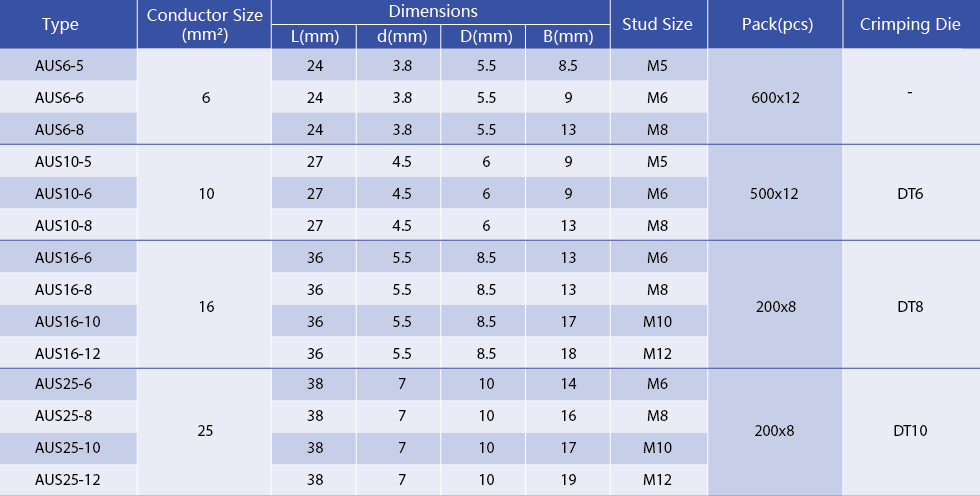

Dimensional Data (Small - Medium)
Small to Medium Lug Dimensions
| Type | Conductor (mm²) | L (mm) | d (mm) | D (mm) | Stud |
|---|---|---|---|---|---|
| AUS6-5 | 6 | 24 | 3.8 | 5.5 | M5 |
| AUS10-6 | 10 | 27 | 4.5 | 6 | M6 |
| AUS16-8 | 16 | 36 | 5.5 | 8.5 | M8 |
| AUS25-10 | 25 | 38 | 7 | 10 | M10 |
| AUS35-12 | 35 | 42 | 8.2 | 12.5 | M12 |

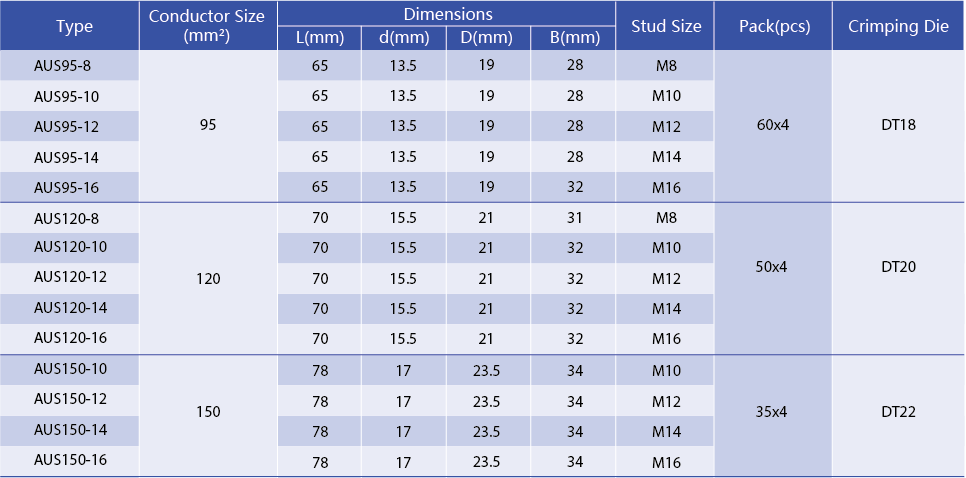

Dimensional Data (Large)
Large Lug Dimensions
| Type | Conductor (mm²) | L (mm) | B (mm) | Die |
|---|---|---|---|---|
| AUS95-12 | 95 | 65 | 28 | DT18 |
| AUS120-12 | 120 | 70 | 32 | DT20 |
| AUS150-12 | 150 | 78 | 34 | DT22 |
