Copper Cable Lug Terminal
These copper cable lug terminals connect copper cables to electrical equipment. They are tin-plated for corrosion resistance and ensure optimal electrical performance in low-voltage applications.
Technical Specifications
Product Overview
JM(JGA) Copper Cable Lug
The JM(JGA) series cable lugs are engineered for secure and reliable electrical connections, specifically designed for terminating copper conductors in low-voltage power distribution systems. Manufactured from high-purity copper (Cu ≥ 99.9%) and finished with a tin-plated surface, these lugs ensure optimal electrical conductivity and long-term corrosion resistance. Their seamless barrel design facilitates a secure crimp, providing the mechanical strength necessary to withstand vibration and temperature cycling in industrial and commercial environments.
- Key Features
- Tin-PlatedHigh-Conductivity CopperSeamless BarrelCorrosion Resistant
Technical Specifications

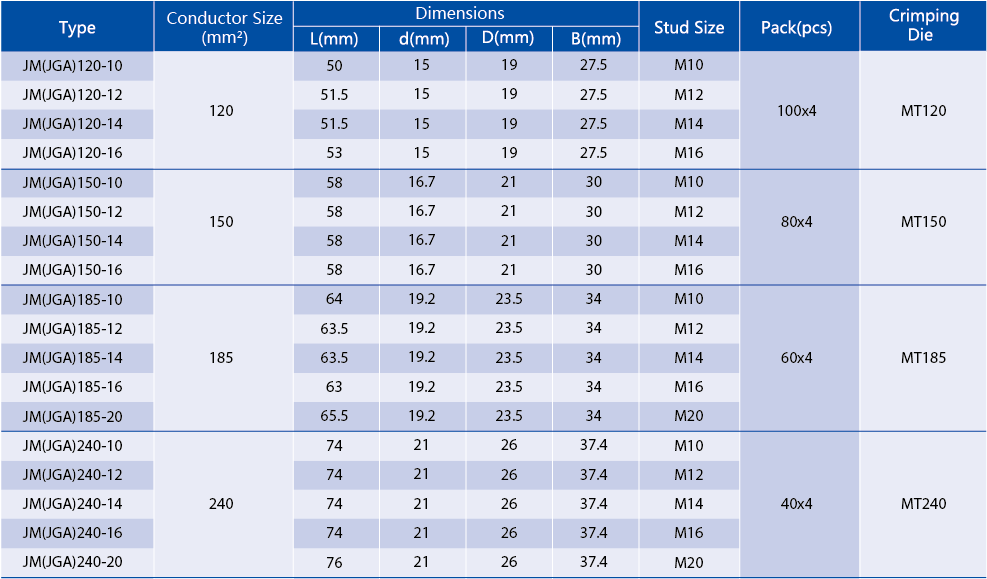

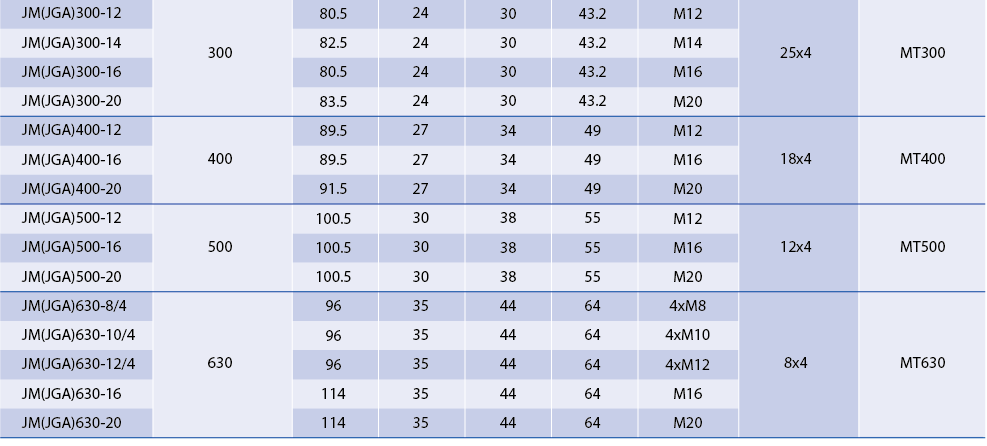

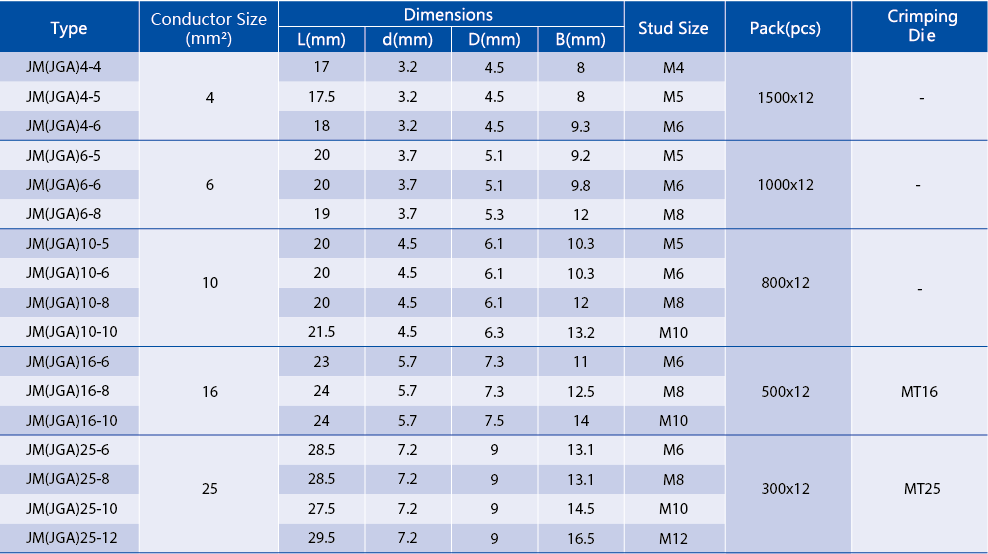

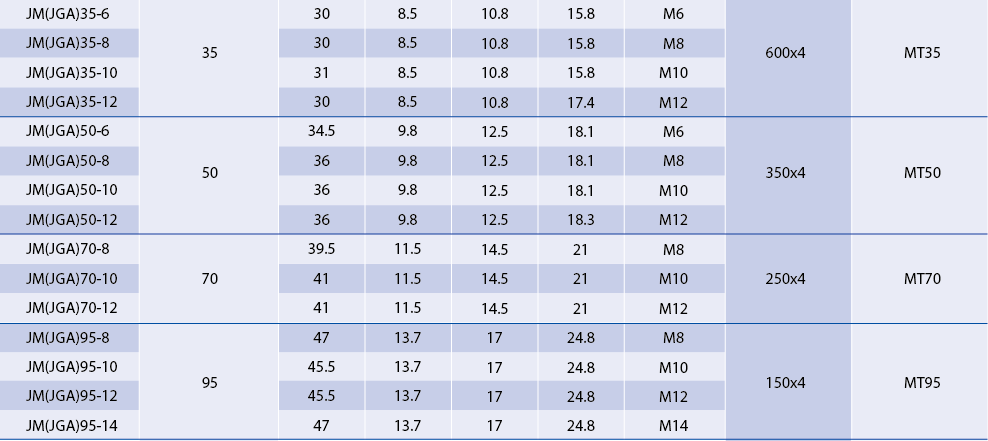

Standard Dimensions Reference
| Type | Conductor (mm²) | Stud Size |
|---|---|---|
| JM(JGA)4 | 4 | M4-M6 |
| JM(JGA)25 | 25 | M6-M12 |
| JM(JGA)95 | 95 | M8-M14 |
| JM(JGA)240 | 240 | M10-M20 |
| JM(JGA)630 | 630 | M8-M20 |
- Material Composition
- Copper (Cu ≥ 99.9%)
- Surface Finish
- Tin Plated
- Application
- Low voltage copper cable connection
- Conductor Size Range
- 4mm² to 630mm²
- Stud Size Range
- M4 to M20
