CJX2-9511 AC Contactor
The CJX2-9511 AC contactor is suitable for circuits up to 660V AC 50/60Hz. It is used for making, breaking, and frequently starting machine interlocking devices.
Technical Specifications
Overview
High-Performance AC Contactor

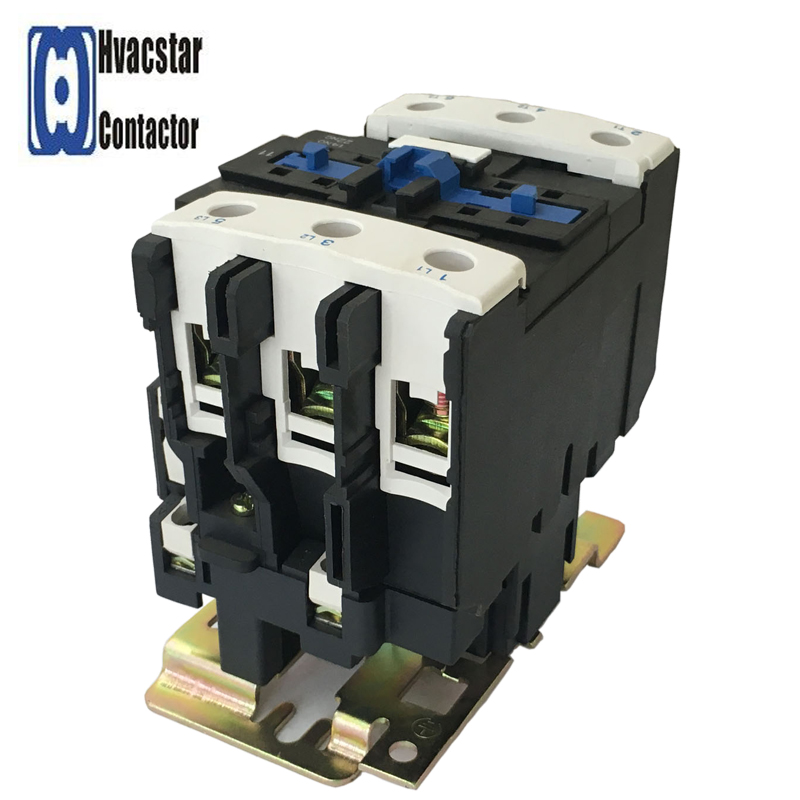

The CJX2-9511 is a robust AC contactor designed for definite purpose applications, particularly within HVAC&R and industrial control systems. This CUL-certified component ensures reliable motor control and switching operations through its high-quality construction. It features clearly labeled terminals and auxiliary contacts to simplify installation and maintenance in demanding electrical environments.
Technical Identification
Certifications
CUL Certified
- Model Number
- CJX2-9511
- Product Type
- Definite Purpose AC Contactor

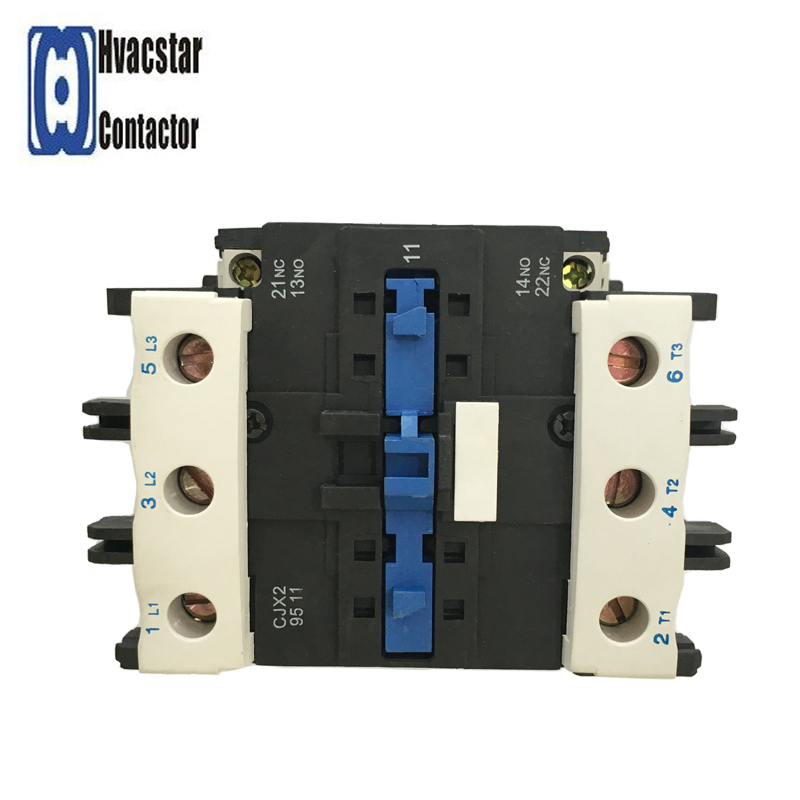

Wiring & Terminals
Power Terminals
| Terminal Type | Labels |
|---|---|
| Input (Line) | 1 L1, 3 L2, 5 L3 |
| Output (Load) | 2 T1, 4 T2, 6 T3 |
- Auxiliary Contacts
- 13NO14NO21NC22NC
Application & Usage
Primary Applications
- HVAC&R Systems
- Motor Control
- Electrical Switching Operations
- Industrial Control Systems
Service & Logistics
- Lead Time
- 15-20 days after deposit
- Customization
- Yes
- Inspection Procedures
- 100% self-inspection and testing before packing
