Technical Specifications
Product Overview
Versatile Protection and Control

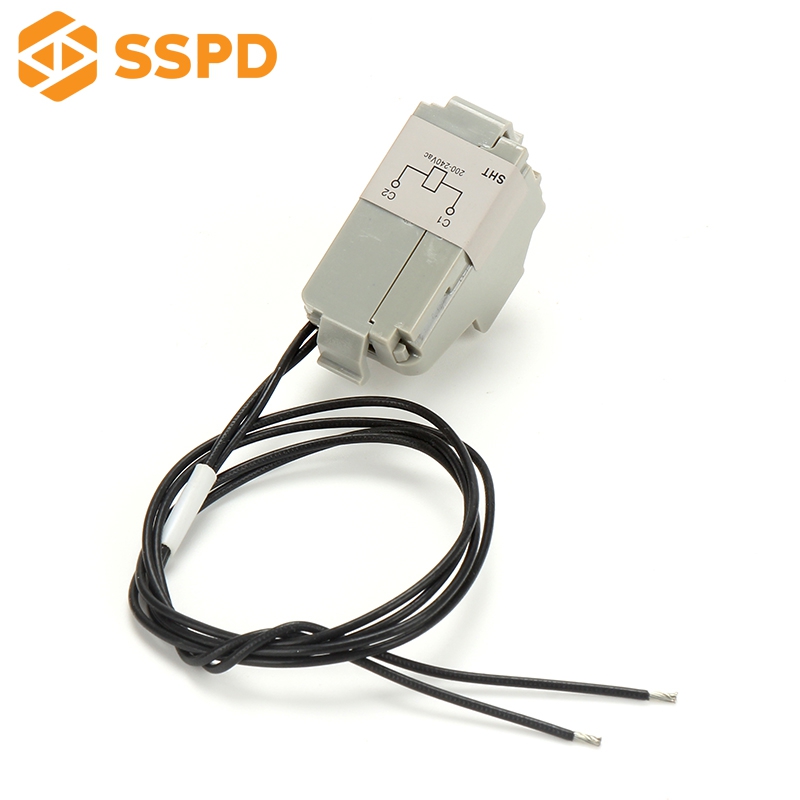

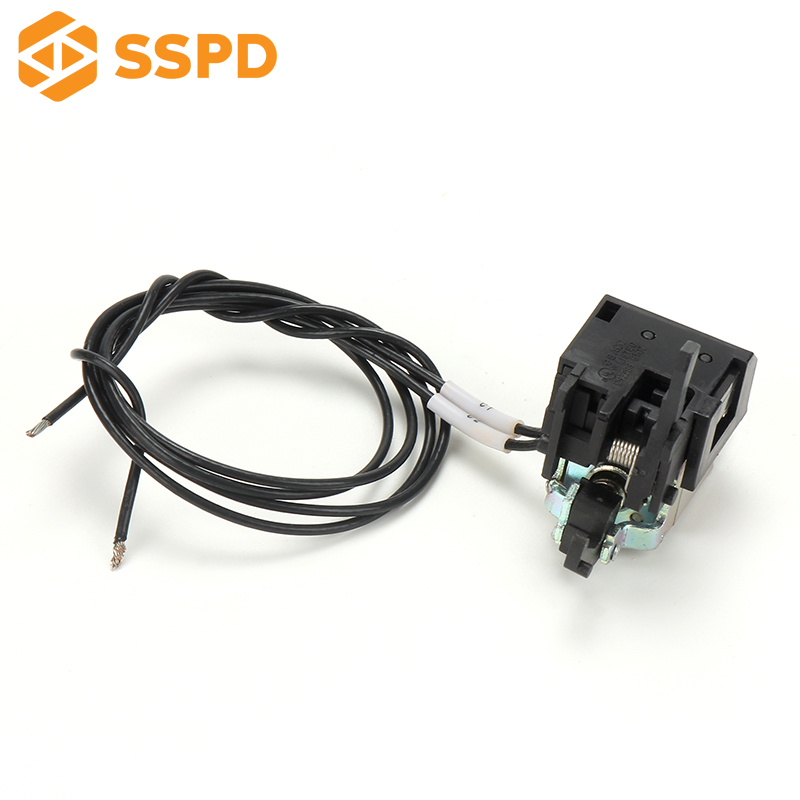

This accessory module provides essential remote tripping capabilities and undervoltage protection for compatible circuit breakers. It functions as either a Shunt Trip (SHT) for remote control or an Under Voltage Release (UVR/UVRN) to safeguard equipment against voltage drops. Designed for reliable operation in power distribution systems, it ensures strict adherence to safety standards.
Technical Specifications
- Operating Voltage Range
- 200-240 VAC
- UVR Tripping Threshold
- 0.35 to 0.7 times rated voltage
- Closing Voltage Threshold
- > 0.85 times rated voltage
- SHT Trigger Voltage
- > 0.7 times rated voltage
- Compliance Standards
- IEC 60947-2
Operational Details
Control Signal Types
- Impulse type (>= 20 ms)
- Maintained signal
- Reset Requirement
- Local manual reset required after trip
- Trip Priority
- Yes
