Versatile Circuit Breaker Status Indication

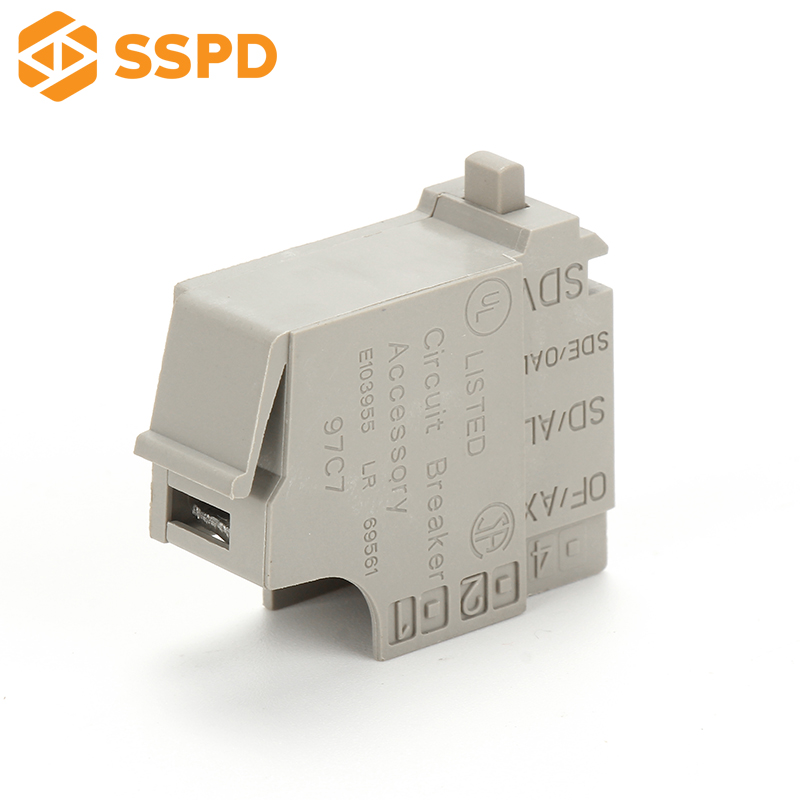

This auxiliary contact block is engineered to provide reliable status monitoring for circuit breakers during normal operation or after fault conditions. A single, adaptable contact unit handles multiple indication functions including ON/OFF status, trip indication, and specific fault-trip monitoring. Designed for seamless integration, these units are suitable for standard and low-level load applications, such as PLC control circuits.

Indication Functions

• OF (ON/OFF) - Indicates breaker contact position
• SD (Trip Indication) - Signals overload, short-circuit, or manual trip
• SDE (Fault-Trip Indication) - Signals electrical faults
• SDV - Signals earth fault trips
• Low-level switching - Compatible with PLC and electronic circuits
