What is the difference between wet and dry grinding mill configurations?

Wet mills utilize water to aid in the grinding process and transport the slurry, commonly used in ore beneficiation. Dry mills require air sweeping systems and are typically used for materials that react with water or for cement and coal grinding. The internal liner designs and discharge grates differ significantly between the two.

How do I specify the right motor power for a ball mill?

Motor power must be calculated based on the mill's internal volume, the specific gravity of the grinding media (steel balls), the filling rate (usually 35 to 45 percent), and the operational speed. Underspecifying the motor to cut costs will lead to frequent overheating and startup failures.

Are Chinese manufacturers using standard or proprietary gearboxes?

Most reputable manufacturers use standardized, high-torque reducers (often ZD or ZQ series, or equivalents from brands like Flender or SEW if specified). Always mandate that the reducer brand and exact model number are explicitly stated in your purchase agreement.

What is the standard warranty on exported mine mills?

Standard warranties typically cover the main structural components (cylinder shell, trunnions) for 12 months from commissioning or 18 months from the Bill of Lading date. Wear parts, such as liners and grinding media, are excluded.

Mine Mills

Source industrial-grade mine mills from vetted suppliers and manufacturers in China and across Asia. Designed for procurement managers, mining equipment distributors, and heavy machinery importers purchasing at scale, this catalog features reliable grinding equipment built to exact capacity and ore-processing specifications.

Get a free consultation

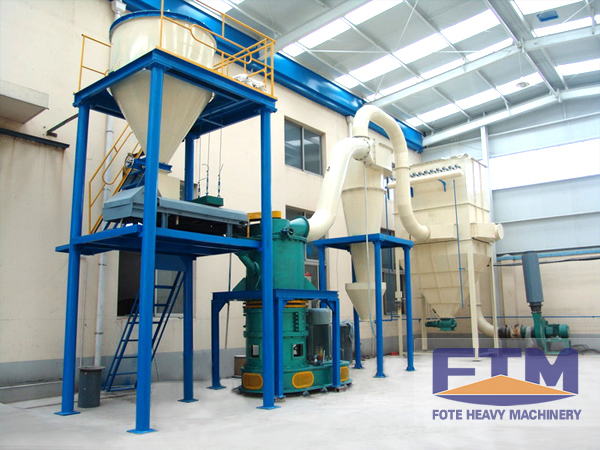

Mineral Grinding Production Line

This production line is mainly used in the grinding process for metallurgy, building materials, chemicals, and mining. It is applicable to power processing of various mineral materials with hardness less than 8 Mohs.

View Details →

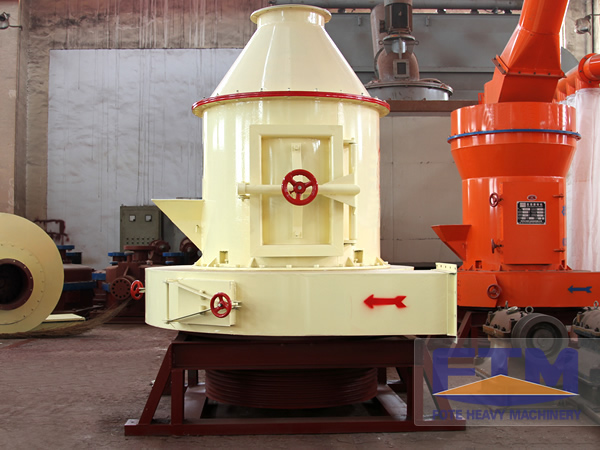

Raymond Grinding Mill for Mineral Processing

The Raymond mill is a grinding machine used for processing various materials. It is widely used in mining, metallurgy, chemical engineering, and building material industries for high-fine powder generation.

View Details →

Phosphate Rock Grinding Mill

Phosphate rock grinding mills are designed for processing over 280 kinds of non-flammable and non-explosive materials. These mills are suitable for grinding materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical, and metallurgy applications.

View Details →

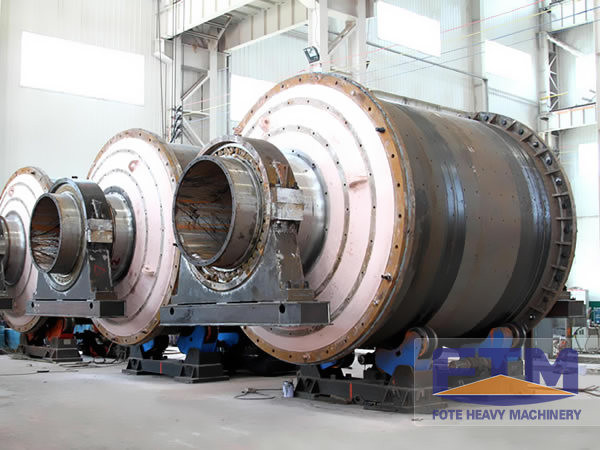

Ceramic Ball Mill for Material Grinding

This ceramic ball mill efficiently grinds various materials, including ores. It is widely applicable in building materials and chemical industries for material processing.

View Details →

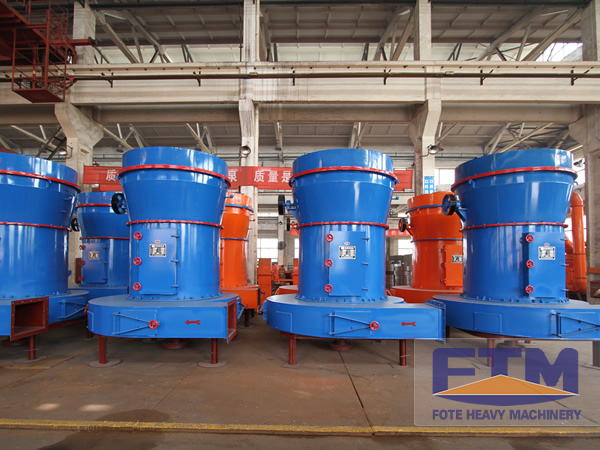

Feldspar Raymond Grinding Mill

The Feldspar Raymond Grinding Mill efficiently grinds non-flammable and non-explosive materials with hardness less than 7. Its finished product fineness is adjustable from 100 to 325 meshes.

View Details →

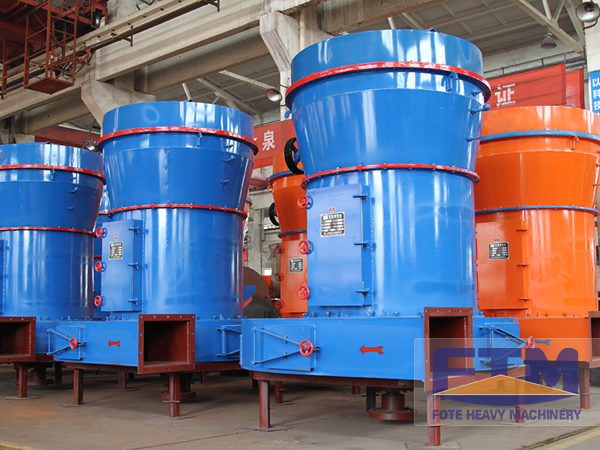

Calcite Powder Grinding Mill

The calcite grinding mill efficiently processes brittle materials with medium to low hardness. This mill produces fine powder with adjustable sizes from 325-3000 mesh and yields up to 12 tons per hour.

View Details →

Ultrafine Grinding Mill for Mineral Processing

This ultrafine grinding mill provides high efficiency with 40% higher output than other grinding mills when producing the same final product granularity. The quick-wear parts offer extended service life when material granularity and the final product are consistent.

View Details →

Micro Powder Grinding Mill

This micro powder grinding mill is engineered for efficient powder production with increased output compared to Raymond mills. It is capable of achieving a range of final fineness, from 0.613mm to 0.033mm, and can reach 0.013mm for some materials.

View Details →

Raymond Grinding Mill for Mineral Processing

The Raymond mill is a vertical grinding machine suitable for processing non-flammable and non-explosive materials. It is an independent production system, from crushing to grinding and packing.

View Details →

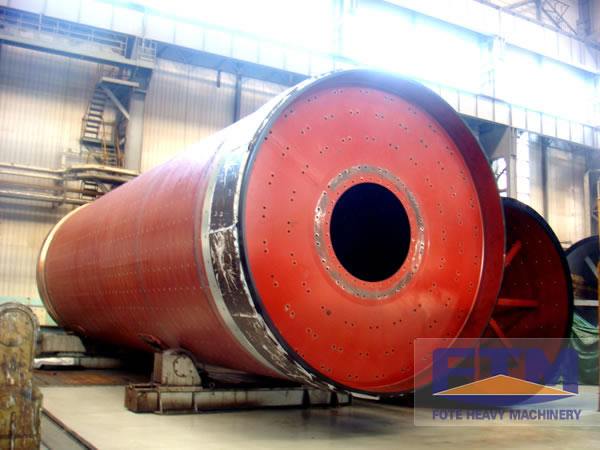

Industrial Raw Material Grinding Mill

This industrial mill is engineered to process raw materials efficiently. Its unique streamlined design reduces ventilation resistance, expands effective volume, and improves material yield.

View Details →

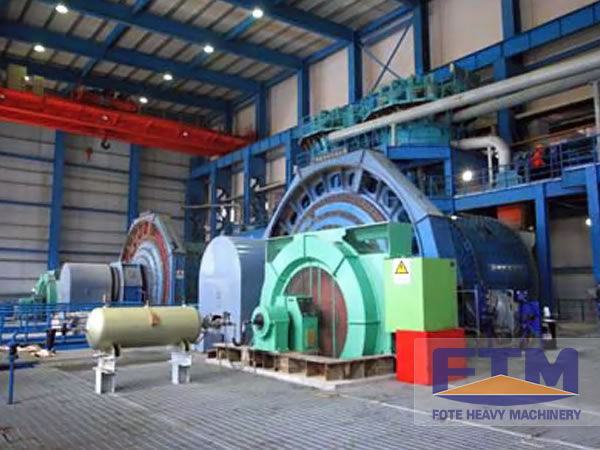

High Efficiency Air-Swept Coal Mill

The air-swept coal mill efficiently grinds and dries coal using a high medium impact number. With a high energy utilization ratio, it is suitable for industries like cement, thermal power, metallurgy, and chemistry.

View Details →

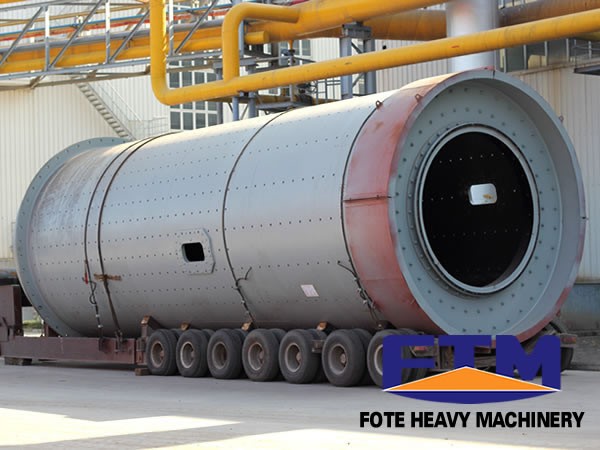

Raw Material Grinding Mill

The raw material mill is a key equipment for grinding materials after being broken. It is widely used in dry or wet grinding processes across industries like cement, metallurgy, and building materials.

View Details →

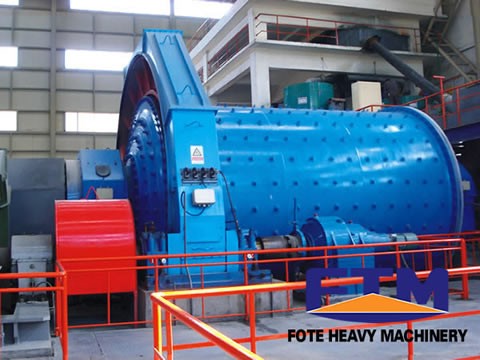

Air-Swept Coal Pulverizer Mill

The air-swept coal mill grinds and dries coal using a combination of mechanical crushing and airflow. It is composed of a feeding device, main bearing, rotating part, gear, discharging equipment, and lubrication system.

Cement ProductionThermal Power Generation

View Details →

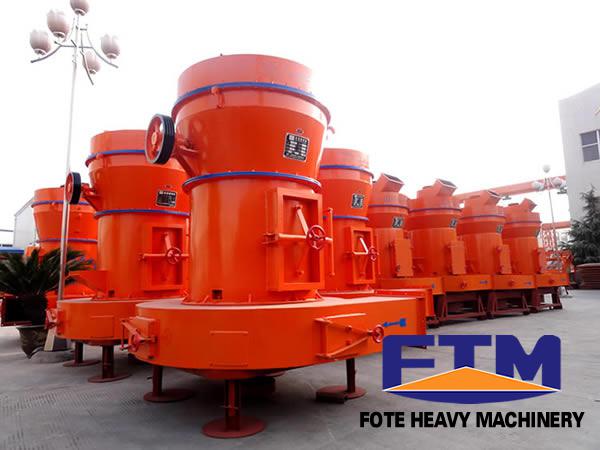

High Pressure Suspension Grinding Mill

The high pressure grinding mill is suitable for grinding non-flammable materials with a Mohs hardness not greater than 9.3 and humidity less than 6%. It consists of the main unit, blowers, a superfine analysis machine, cyclone dust collector, bag type dust collector, and connecting pipes.

View Details →

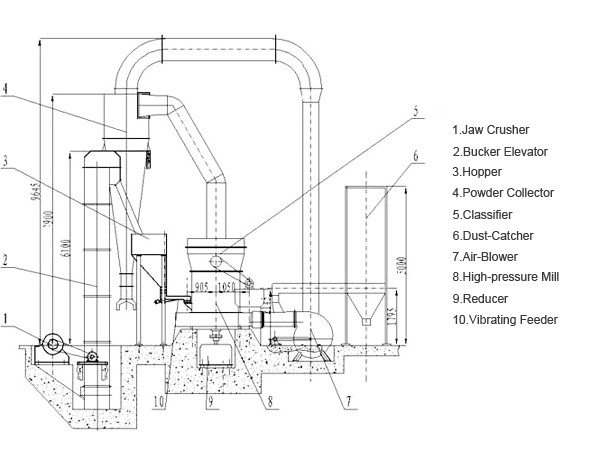

High-Strength Industrial Grinding Mill

This high-strength mill efficiently grinds materials like barite, limestone, and slag. It is used for fine powder processing in mining, metallurgy, chemical, and building material industries, with adjustable output sizes.

View Details →

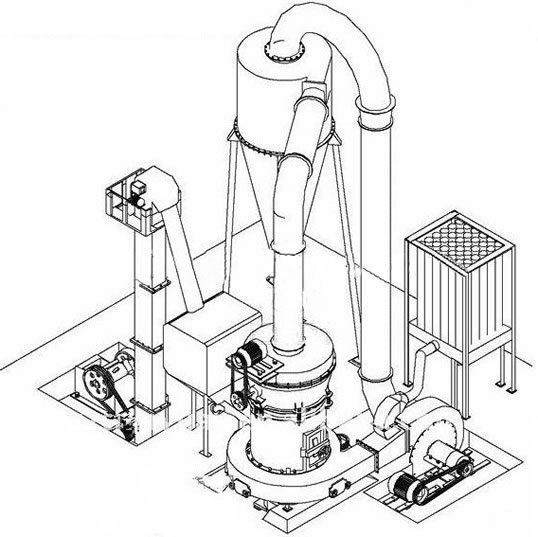

Raymond Grinding Mill

Raymond mills are grinding equipment used to pulverize materials into fine powder. The fineness of finished products can be adjusted within 60-325 meshes.

QuartzFeldspar

View Details →

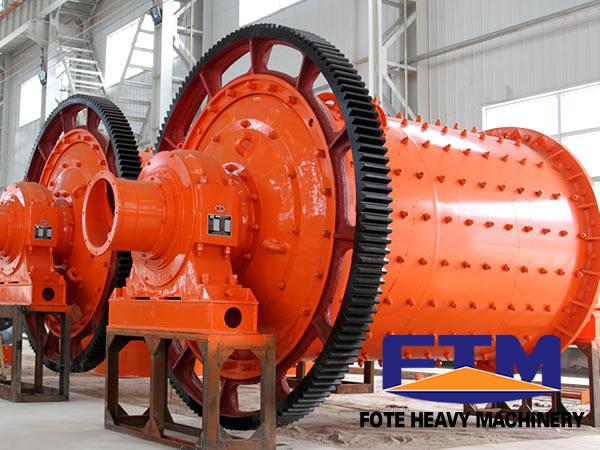

Cone Ball Mill for Mineral Processing

The cone ball mill, also known as an energy-saving ball mill, is utilized in mineral dressing processes. Its integrated body and chassis simplify installation, while double raw self-aligning roller bearings reduce energy consumption and improve processing capacity.

View Details →

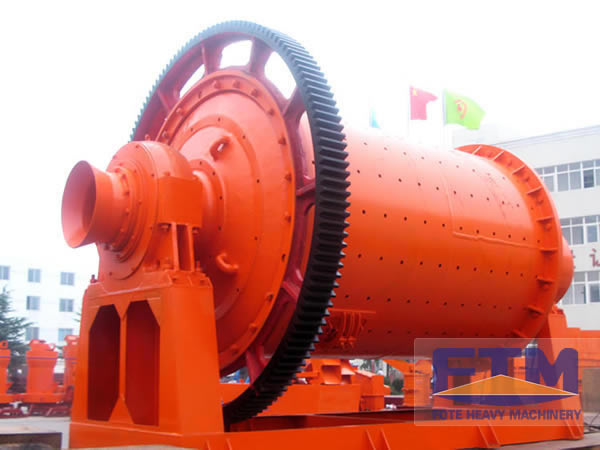

Industrial Ball Mill Grinder

The ball mill is a key piece of equipment used for grinding materials after they have been primarily crushed. It is widely used to grind ores and other materials in the cement, silicate product, new building material, refractory, fertilizer, and glass ceramic industries.

View Details →

Procuring heavy mining machinery requires balancing capital expenditure with operational reliability. Mine mills—whether ball, rod, or autogenous—represent a massive investment where downtime translates directly to lost revenue. Sourcing these units directly from overseas manufacturers offers significant cost advantages, provided you can verify their engineering capabilities, metallurgy, and machining precision.

Critical Specifications and Component Engineering

When specifying a mine mill, the capacity (tons per hour) and feed/discharge sizes are just the baseline. The true longevity of the equipment is determined by the engineering of its core components. Buyers must evaluate the manufacturer's heavy machining capabilities, particularly for the girth gear, pinion, and trunnion bearings.

Component	Standard Specification	Heavy-Duty / Premium Upgrade
Girth Gear & Pinion	Cast steel (ZG45), hobbing machined	Forged alloy steel, precision ground teeth for lower noise
Main Bearings	Babbitt metal sliding bearings	Double row self-aligning spherical roller bearings
Shell/Cylinder	Q235 carbon steel plate, standard welding	Q345/Q235B steel, submerged arc welding with NDT
Liners	High manganese steel (Mn13)	Chromium-molybdenum alloy or wear-resistant rubber

Substandard welding on the cylinder shell can lead to catastrophic failure under constant rotational stress. Verifying that a factory utilizes submerged arc welding and performs thorough Non-Destructive Testing (NDT) on all critical seams is non-negotiable. This is where conducting rigorous factory audits becomes essential before any deposit is paid.

Need to verify a heavy machinery manufacturer's capabilities? We deploy engineers to assess CNC machining capacity, metallurgy, and quality management systems on-site.

Talk to our team

Factory Acceptance Testing (FAT) and Quality Control

Unlike consumer goods, heavy mineral processing equipment cannot simply be returned if it fails on site. Factory Acceptance Testing is a critical phase. A comprehensive quality control protocol must be executed before the unit is disassembled for shipping.

Essential Mine Mill FAT Protocol

Dimensional inspection of the cylinder, trunnions, and gear alignments.
Ultrasonic or X-ray NDT reports for all primary structural welds.
No-load trial run (minimum 4 to 8 hours) to monitor bearing temperatures and vibration.
Verification of motor and reducer nameplates against the contracted BOM.
Inspection of liner installation tolerances and bolt torque values.

Production Realities: Lead Times, MOQs, and Logistics

Mine mills are built to order based on the specific ore hardness (Bond Work Index) and target mesh size. Because these are capital-intensive projects, MOQs are universally low, but lead times are substantial due to the casting and curing times required for large steel components.

1 Set

Typical MOQ

Standard across heavy mining machinery.

60–120 Days

Production Lead Time

Varies by cylinder diameter and casting requirements.

20–30%

Standard Deposit

Balance typically due post-FAT, prior to shipping.

Logistics for these mills are complex. While smaller units (under 1.5 meters in diameter) might fit into standard Open Top (OT) containers, larger mills require Flat Rack (FR) containers or breakbulk shipping. Coordinating this requires specialized shipping and freight expertise to manage out-of-gauge (OOG) cargo, port handling, and heavy-lift rigging.

Managing out-of-gauge logistics and pre-shipment FAT requires experienced boots on the ground. Let us handle the technical procurement and freight coordination.

Get a free consultation

Buyer FAQ

Successfully sourcing a mine mill hinges on technical diligence—from validating the metallurgy of the girth gear to ensuring the structural integrity of the cylinder welds. Partnering with a team that understands heavy machinery procurement ensures your capital investment arrives on site ready for continuous operation.
