Technical Specifications
Product Overview

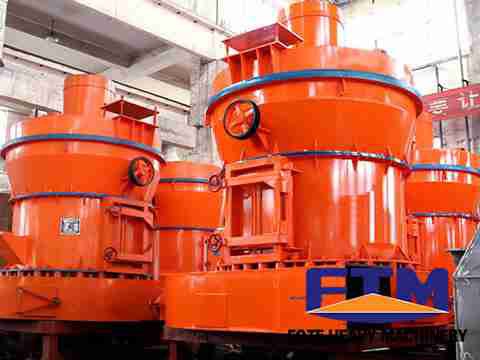

Industrial Raymond Grinding Mill
The Raymond mill is a highly efficient grinding solution designed for pulverizing minerals into fine powders with high precision. Featuring a compact footprint and low energy consumption, it is ideal for processing non-flammable and non-explosive materials like calcite, barite, and limestone. Its robust working principle utilizes centrifugal force from grinding rolls to achieve consistent particle sizes, serving industries such as mining, metallurgy, and construction.
Technical Specifications
Key Performance Metrics
120 t
Max Processing Capacity
30 mm
Max Feed Size
6 %
Max Material Humidity
Model Specifications
| Model | Main Motor | Roll Ring Dia (mm) | Output (t/shift) |
|---|---|---|---|
| 6R4525 | Y315m-4-132 | 1,770 | 16-120 |
| 5R4119 | Y280s-4-75 | 1,400 | 8-60 |
| 4R3216 | Y225s-4-37 | 1,073 | 4-45 |
| 3R90 | Y225m-8-30 | 973 | 3-35 |
| 3R85 | Y225m-8-22 | 885 | 2-28 |
| 3R75 | Y225s-8-18.5 | 865 | 1.5-20 |
| 3R65 | Y200L-8-15 | 725 | 1-18 |
| 3R60 | Y160m-6-7.5 | 495 | 0.5-8 |
- Suitable Materials
- QuartzFeldsparCalciteTalcBariteFluoriteMarbleLimestoneDolomiteBauxiteIron OreCopper OreGypsumBentoniteKaolin
Operating Parameters
- Finished Product Fineness
- 60-325 meshes (0.125-0.044 mm)
