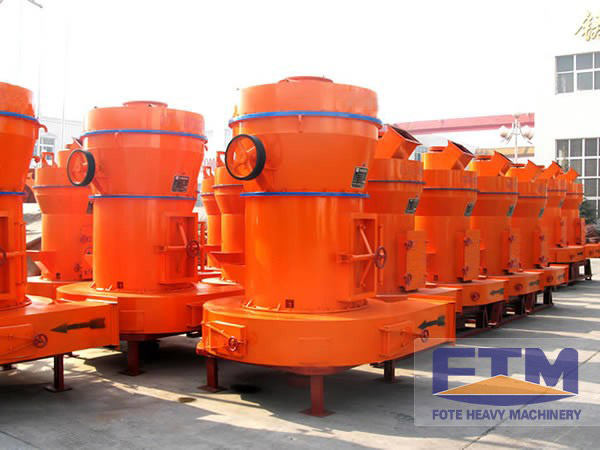

Raymond Grinding Mill for Mineral Processing
The Raymond mill is a vertical grinding machine suitable for processing non-flammable and non-explosive materials. It is an independent production system, from crushing to grinding and packing.
Technical Specifications
Overview
Raymond Grinding Mill System
The Raymond Grinding Mill is a vertical structure solution designed for efficient mineral processing, offering a compact footprint that integrates crushing, grinding, and packing into an independent production system. With an impressive passing ratio of up to 99%, this mill ensures high-quality output for various industrial applications. It features robust construction using high-quality cast steel and a centralized electric control system for reliable, automated operation.
Technical Specifications
- Max Mohs Hardness
- 9.3
- Max Humidity
- 6 %
- Output Fineness Range
- 30-325 mesh0.613mm-0.044mmUp to 1000 mesh
- Passing Ratio
- 99 %
Applications
Suitable Materials
- Barite
- Calcite
- Potassium feldspar
- Talc
- Marble
- Limestone
- Dolomite
- Fluorite
- Lime
- Activated clay
- Activated carbon
- Bentonite
- Kaolin
- Cement
- Phosphate rock
- Gypsum
- Glass
- Thermal insulation material
Design Features
Key Advantages
Compact Vertical StructureHigh Passing RatioAirtight GearboxCentralized ControlHigh Durability
