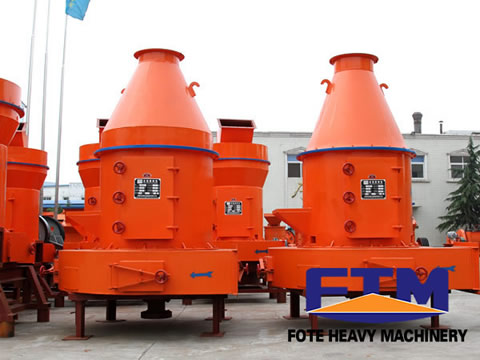

High Pressure Suspension Grinding Mill

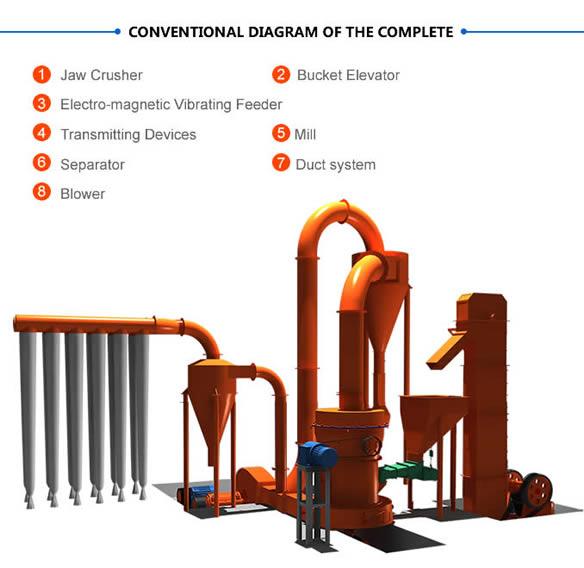

The high pressure grinding mill is suitable for grinding non-flammable materials with a Mohs hardness not greater than 9.3 and humidity less than 6%. It consists of the main unit, blowers, a superfine analysis machine, cyclone dust collector, bag type dust collector, and connecting pipes.
Technical Specifications
Overview
High Pressure Suspension Grinding Mill
This high-pressure suspension grinding mill is an efficient industrial solution designed for processing non-flammable materials with a Mohs hardness up to 9.3 and humidity below 6%. It utilizes a robust grinding roller and ring system to deliver consistent, fine powder production for sectors such as mining, construction, and chemical processing. The system features centralized electrical control for easier maintenance and offers significant energy savings compared to conventional grinding equipment.
Key Features
Performance Advantages
- Increased grinding pressure (800-1200KG)
- Energy consumption reduced by 33% compared to similar products
- Centralized electrical control system
- High efficiency dust collection
- Wide range of material compatibility
- Suitable Materials
- BariteLimestoneCeramicSlag
Technical Specifications
Model Comparison
| Model | Max Feed Size (mm) | Output (t/shift) | Main Motor (kW) |
|---|---|---|---|
| Micropowder93 | ≤25 | 0.8-12 | 30 |
| Micropowder91 | ≤25 | 0.6-10 | 22 |
| Micropowder87 | ≤20 | 0.4-8 | 22 |
| Micropowder76 | ≤20 | 0.3-6 | 18.5 |
| Micropowder66 | ≤15 | 0.2-4 | 15 |
