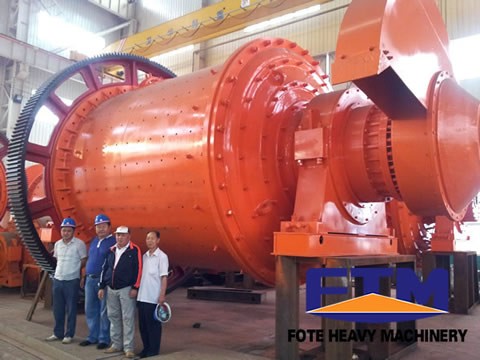

Cone Ball Mill for Mineral Processing
The cone ball mill, also known as an energy-saving ball mill, is utilized in mineral dressing processes. Its integrated body and chassis simplify installation, while double raw self-aligning roller bearings reduce energy consumption and improve processing capacity.
Technical Specifications
Overview
High-Efficiency Cone Ball Mill
The Cone Ball Mill is a specialized grinding solution designed for mineral dressing processes. Featuring an integrated body and chassis design, this mill allows for streamlined installation on a basic plane. Its advanced design utilizes double row self-aligning roller bearings, which significantly reduces energy consumption by up to 30% while simultaneously improving fine grit output and processing capacity by 15-20%.
Key Features
Operational Capabilities
- Flexible installation: Can be mounted horizontally, vertically, or slantingly
- High performance: Large starting torque and vibration
- Reliability: Steady and dependable operation
- Energy-efficient: Optimized bearing design for reduced power consumption
Technical Specifications
Performance Metrics
0.65 t/h
Min Capacity
615 t/h
Max Capacity
5.5 t
Min Weight
525 t
Max Weight
Technical Data Sheet
| Model | Rotation Speed (r/min) | Ball Load (t) | Motor Power (kw) |
|---|---|---|---|
| Φ 900×1800 | 36 | 1.5 | 18.5 |
| Φ 1200×2400 | 36 | 3 | 30 |
| Φ 1500×3000 | 29.7 | 7.5 | 75 |
| Φ 1830×4500 | 25.4 | 15 | 155 |
| Φ 2100×4500 | 23.7 | 24 | 245 |
| Φ 2400×4500 | 21 | 30 | 320 |
| Φ 3600×8500 | 18 | 131 | 1,800 |
| Φ 5500×8500 | 13.8 | 338 | 4,500 |
Operating Parameters
Process Limits
- Feeding Size: ≤20 - ≤25 mm
- Discharging Size: 0.074 - 0.4 mm
