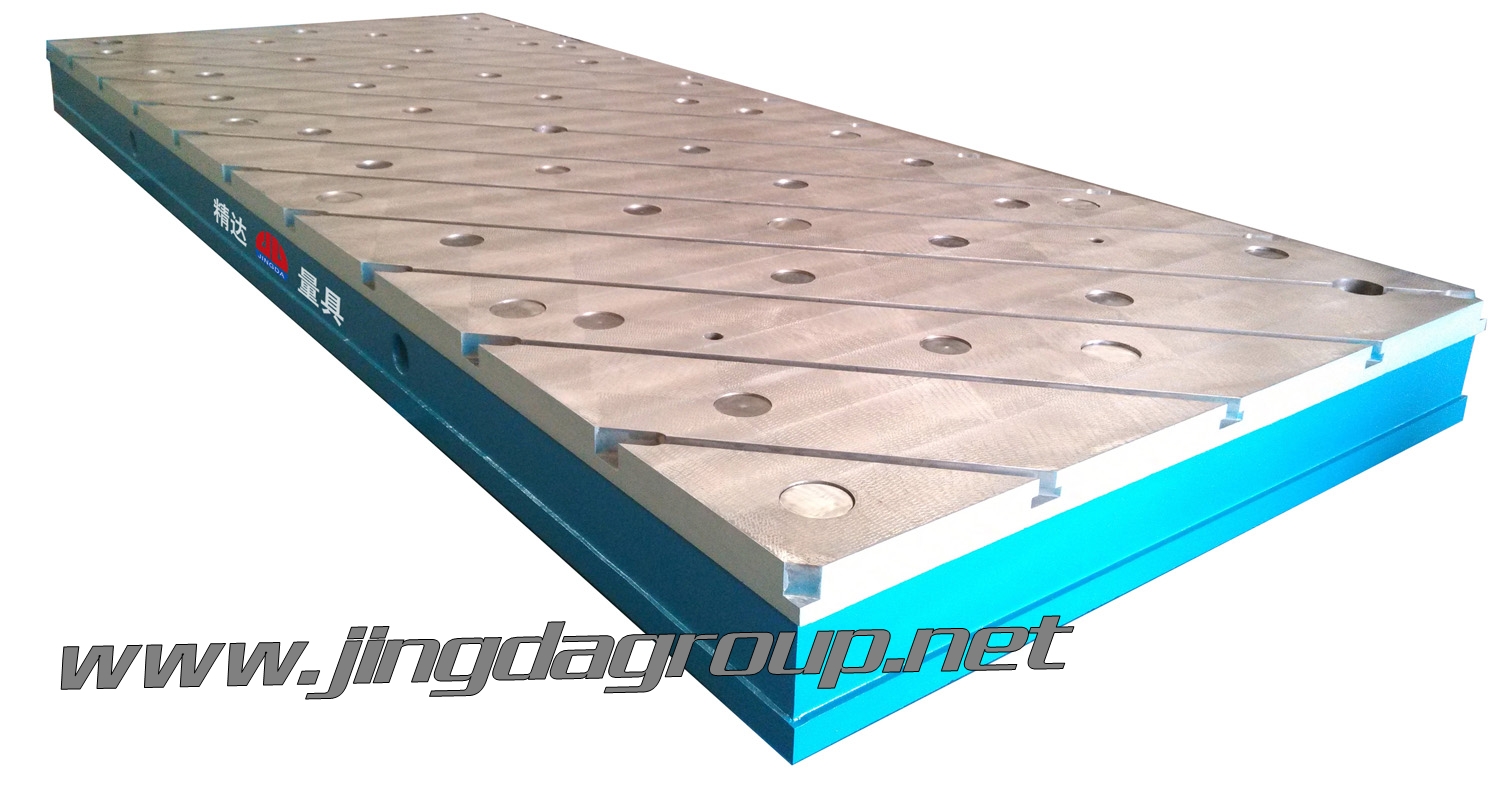

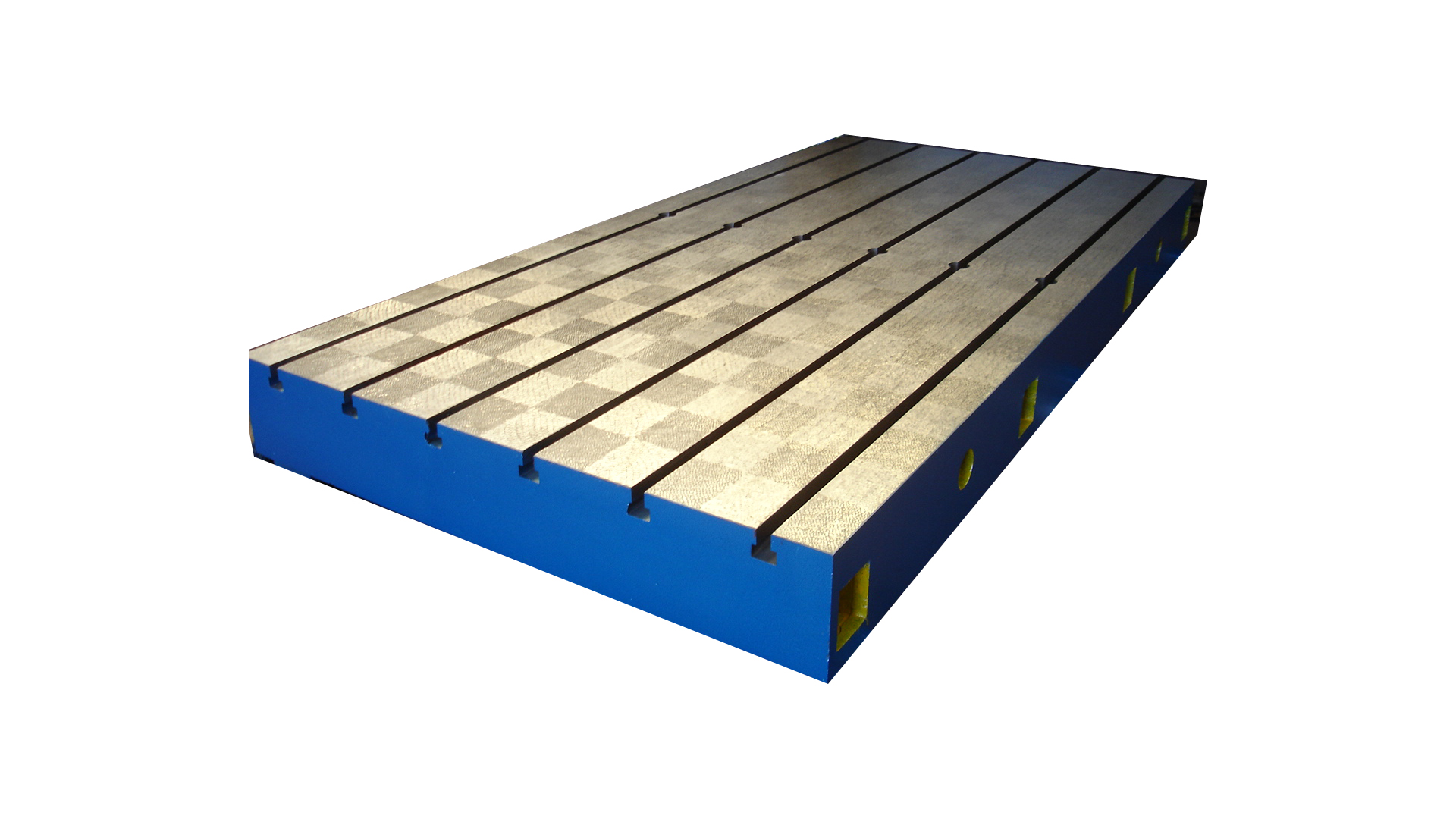

Cast Iron T-Slotted Floor Plate
This cast iron T-slotted floor plate is applicable to various inspections and benchmark planes for accuracy measurement. It is made from HT200~250 material.
Technical Specifications
Product Overview
Cast Iron T-Slotted Floor Plate
This precision-engineered T-slotted floor plate provides a stable, reliable foundation for accuracy measurement, workpiece setup, and alignment in machining and fabrication environments. Constructed from high-quality cast iron, it is designed to minimize vibration and support heavy-duty industrial applications. Each plate is fully customizable to meet specific customer requirements, including adherence to international standards like DIN876 for flatness accuracy.
Technical Specifications
- Material Composition
- HT200~250 Cast Iron
- Primary Applications
- Accuracy MeasurementBenchmark PlanesMachining SetupFabricationInspection
- Customization Options
- Yes
- Compliance Standards
- DIN876 (for flatness accuracy)
Accessories
Compatible Accessories
- T-bolt
- Leveling bolt
- Leveling pad irons
Precision Data
Precision Grade by Type (μm)
| Type (mm) | Grade 1 | Grade 2 | Grade 3 | Final Machining |
|---|---|---|---|---|
| 1200×1000 | 20 | 39 | 96 | 0 |
| 1500×1000 | 24 | 48 | 120 | 0 |
| 1500×1500 | 25 | 50 | 125 | 0 |
| 2000×1000 | 26 | 52 | 129 | 0 |
| 2000×1500 | 0 | 56 | 140 | 0 |
| 2000×2000 | 0 | 60 | 152 | 230 |
| 2500×1500 | 0 | 64 | 152 | 0 |
