Technical Specifications
Overview
Automated Carton Forming Solution

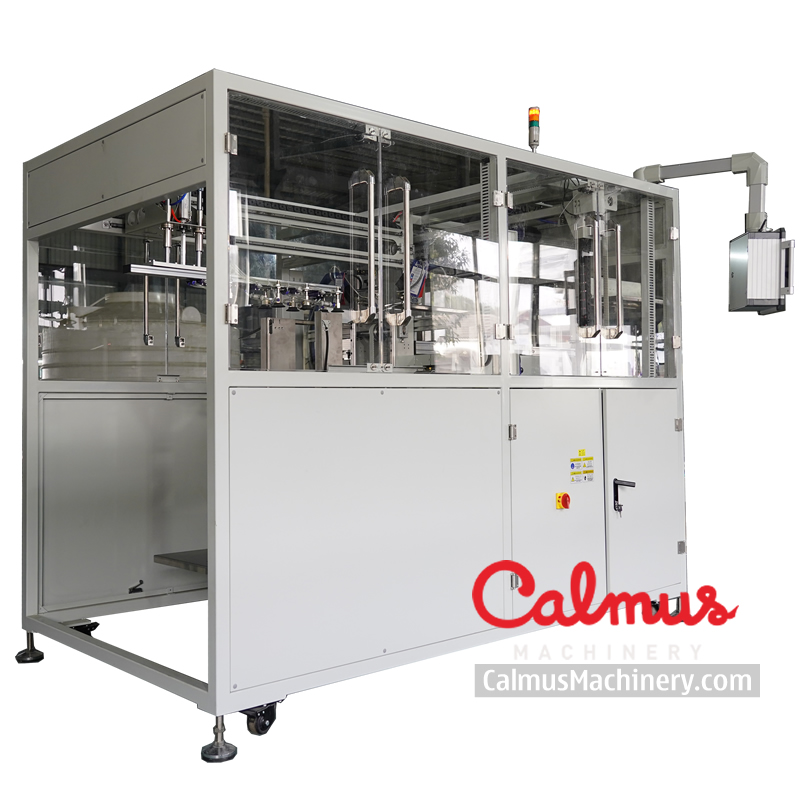

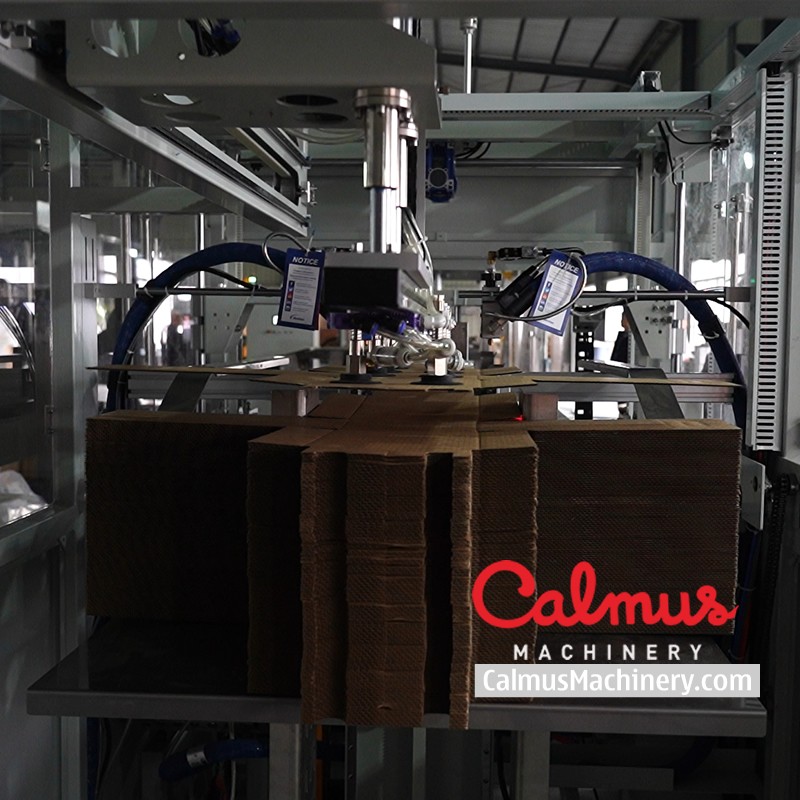

This one-piece cardboard case former is designed to streamline your packaging process by automating the assembly of folder cardboards. The system picks blanks from a storage tray, shapes them using a punch mechanism, and secures the edges with hot melt glue for a reliable seal. It is an efficient, compact solution ideal for high-volume packaging environments requiring consistent and accurate carton formation.
Performance & Capacity
Forming Capacity
10 boxes/min
Capacity
- Applicable Carton Size
- L150-350 x W150-300 x H26-65 mm
Technical Specifications
- Feed Material
- One-piece folder cardboards
- Power Requirements
- 220-240V / 110-120V (Single-phase)
- Power Consumption
- 1.5 kW
- Compressed Air Pressure
- 6 bar
- Air Consumption
- 100 NL/min
Dimensions & Build
Key Features
- Transparent safety enclosures
- Adjustable components for various sizes
- Integrated sensors and controls
- Emergency stop button
- Wheels and leveling feet
- Machine Dimensions
- L1,900 x W1,400 x H700 mm
