Carton and Liner Forming Machine
This machine erects cartons and seals the bottoms to form boxes. It also lines the boxes with poly bags, streamlining the packaging process.
Technical Specifications
System Overview

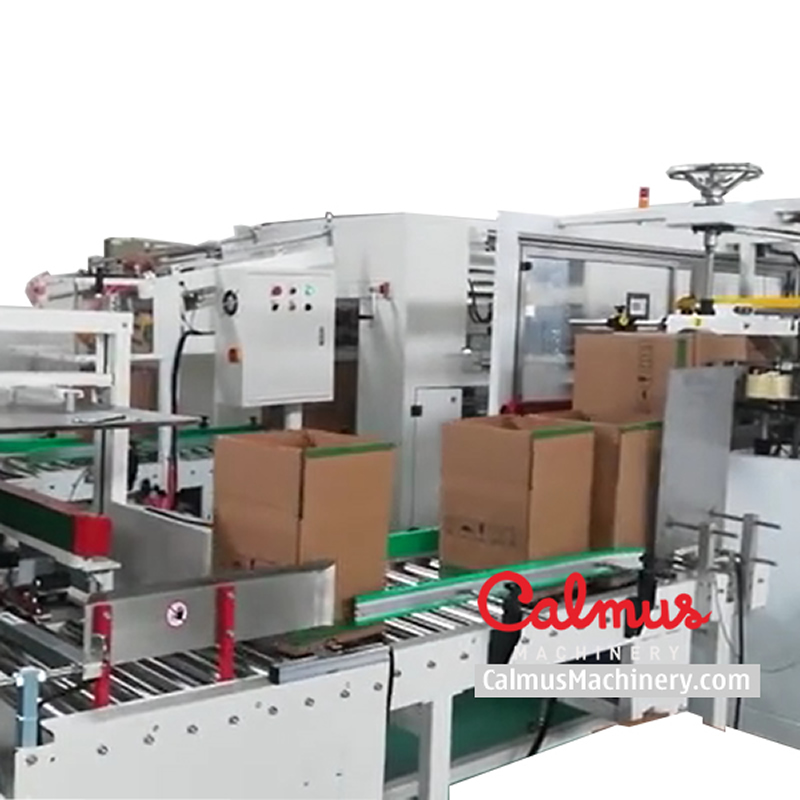

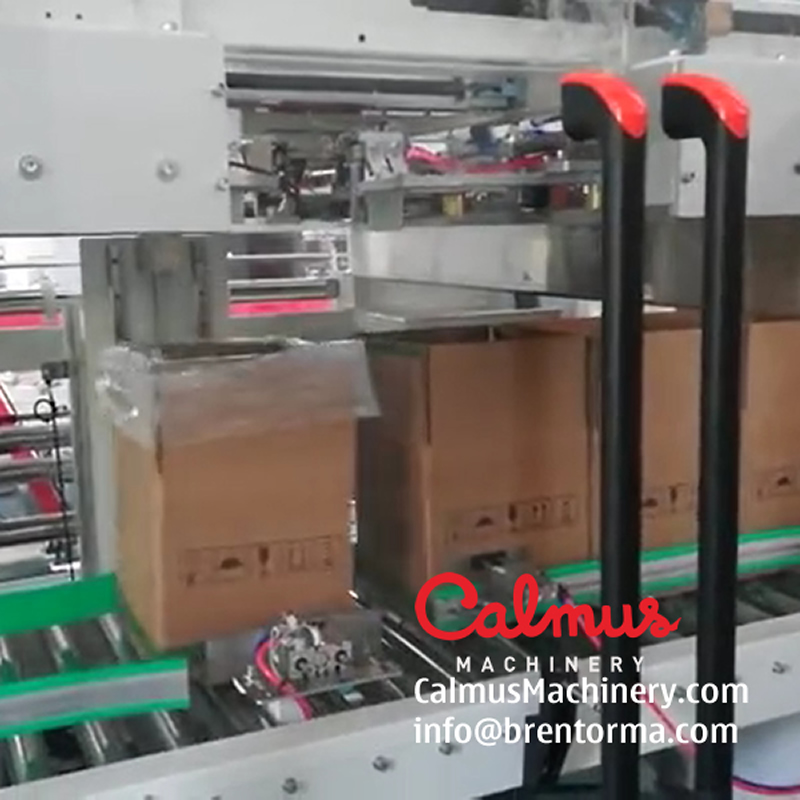

Automated Bag-in-Box Forming Line
This integrated packaging solution streamlines the bag-in-box process by combining a high-efficiency carton erector with an automated poly bag inserter. The system automatically erects cartons, seals the bottoms, inserts poly liners from roll stock, and cuffs the bags over the carton flaps for a secure fit. Designed to reduce labor and material costs, this line ensures consistent, hygienic packaging preparation for a wide range of industrial applications.
Carton Erector
Performance Metrics
25 cartons/min
Max Capacity
6 bar
Air Pressure
50 pcs
Storage Capacity
Technical Specifications
| Feature | Specification |
|---|---|
| Erecting Type | Vertical or Horizontal |
| Sealing Media | Tape |
| Tape Width | 4.8-7.2 cm |
| Power Supply | Single Phase, 400W/1.5kW |
Poly Bag Inserter
Performance Metrics
7 cartons/min
Standard Capacity
100 NL/min
Air Consumption
Technical Requirements
- Film Width: 460-840 mm
- Power Supply: 3 Phase, 4.5 kW
- Compressed Air: 6 bar
- Machine Dimensions
- L3,322 x W2,177 x H2,350 mm
Compatibility
Applicable Carton Dimensions
| Component | Size Range |
|---|---|
| Carton Erector | 410mm < L+W < 910mm; W: 180-390mm |
| Poly Bag Inserter | L250-550 x W200-400 x H150-400mm |
