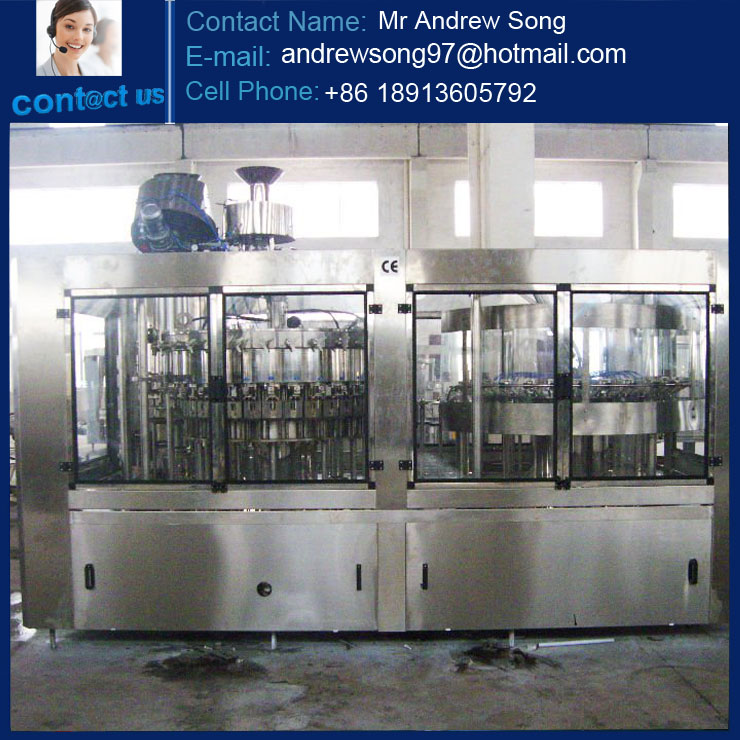

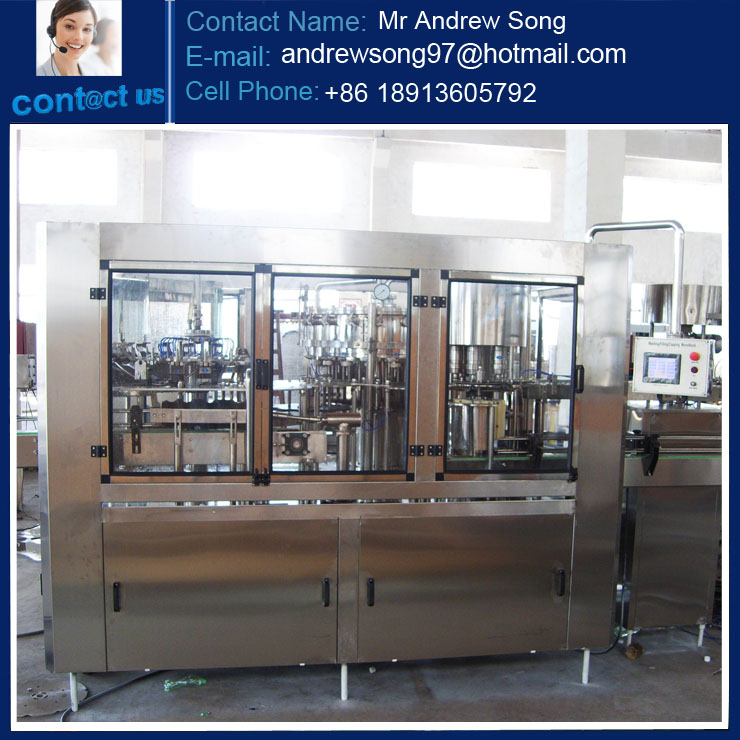

Carbonated Beverage Filling Machine
This machine fills carbonated beverages into plastic bottles, glass bottles, and aluminum cans. It supports customizable processing based on production capacity, filling liquid, and container types.
Technical Specifications
Product Overview
High-Efficiency Carbonated Beverage Filling Solution
This automated filling machine is specifically designed for carbonated drinks and soft drinks, supporting PET bottles, glass bottles, and aluminum cans. It utilizes a balanced pressure filling method to ensure consistent carbonation levels in products like cola, soda, and sparkling juices. The system is fully customizable to match specific production capacities, bottle geometries, and capping requirements for professional beverage manufacturing.
Performance Metrics
Production Capacity
12,000 BPH
Max Bottles/Hour
- Filling Stations
- 32 pcs
Technical Specifications
- Model Number
- DCGF 32-32-10
- Filling Method
- Balanced pressure filling
- Construction Material
- Stainless steel
- Control System
- Programmable Logic Controller (PLC)
Application & Compatibility
Supported Bottle Sizes
- 250ml
- 500ml
- 750ml
- 1000ml
- 1500ml
- Compatible Liquids
- Carbonated DrinkSoft DrinkSodaSparkling JuiceCola
- Container Types
- PET BottleGlass BottleAluminum Can
- Cap Type
- Normal plastic screw cap
Complete Production Line
System Components
- Water treatment system
- Syrup melting & mixing
- Carbon dioxide mixer
- PET bottle blow molding machine
- Bottle unscrambler
- Filling and capping machine
- Packing machine
Compliance & Safety
Certifications
CE
- Safety Features
- Enclosed design with transparent safety shields and operator protection systems
