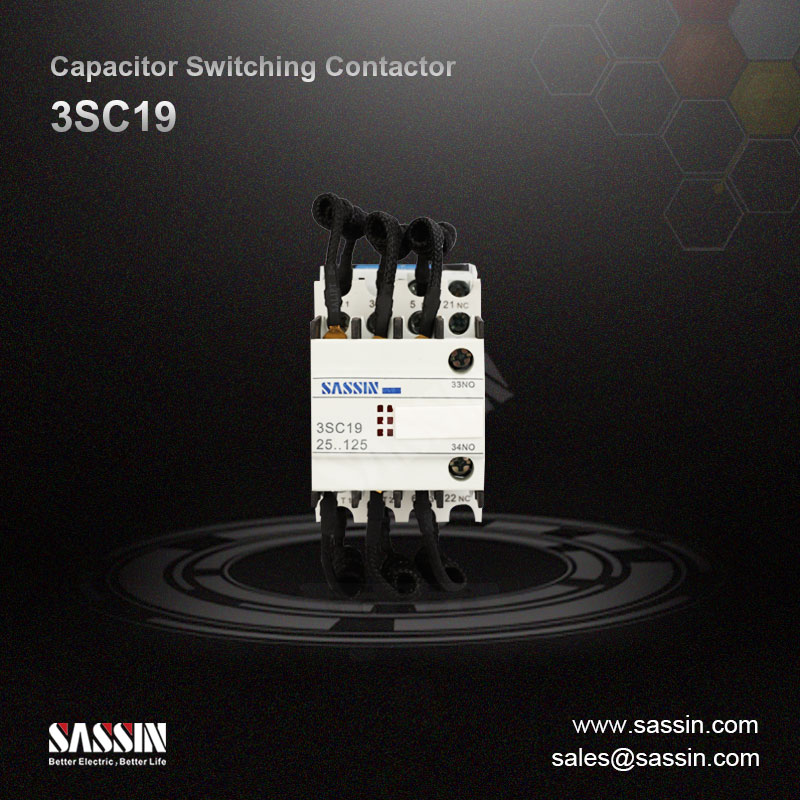

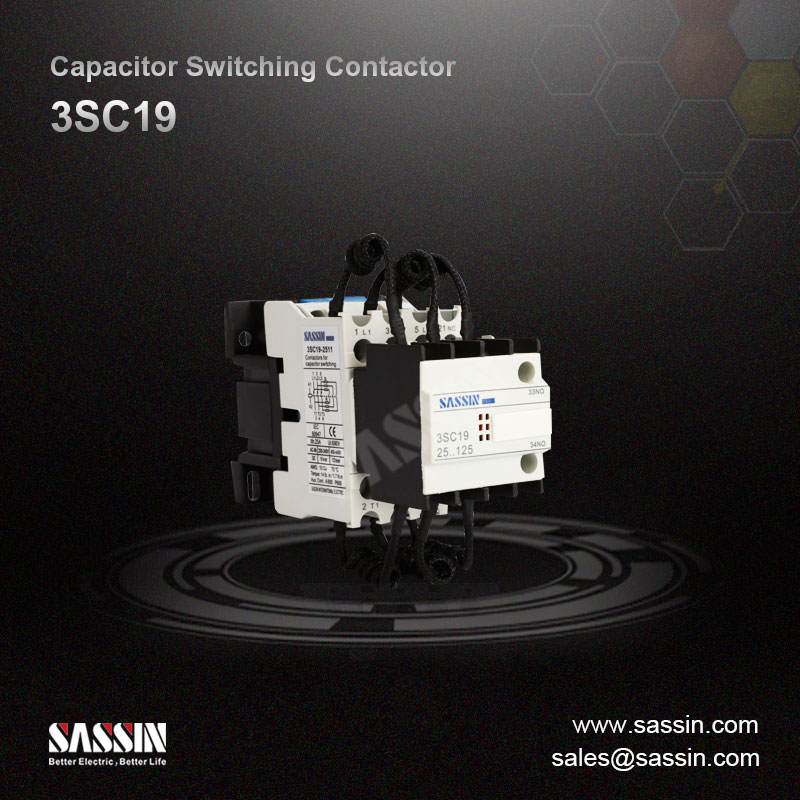

Capacitor Switching Contactor with Damping Resistors
These contactors are designed for switching capacitor banks in power factor correction systems. The contactors feature damping resistors that limit inrush current and reduce voltage transients.
Technical Specifications
Product Overview
Capacitor Switching Contactors
These capacitor switching contactors are specifically engineered for the reliable switching of capacitor banks within power factor correction systems. Featuring integrated damping resistors, they effectively limit inrush current and mitigate voltage transients during energization. This design significantly extends the operational lifespan of capacitor banks while enhancing overall system reliability and energy efficiency in industrial and commercial environments.
Technical Specifications
- Model Series
- 3SC19
- Switching Range
- 25 - 125
- Contact Configuration
- 3NONC
Key Features
Core Benefits
- Integrated damping resistors to limit inrush current
- Reduction of voltage transients
- Optimized for frequent switching operations
- Improved power factor correction efficiency
Application Suitability
IndustrialCommercialPower Factor Correction
